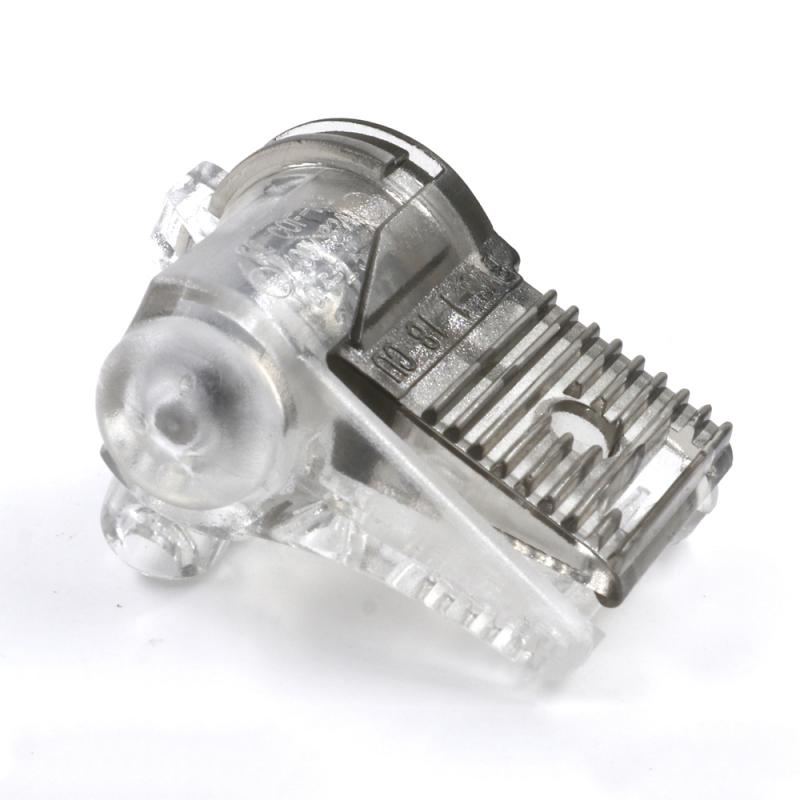

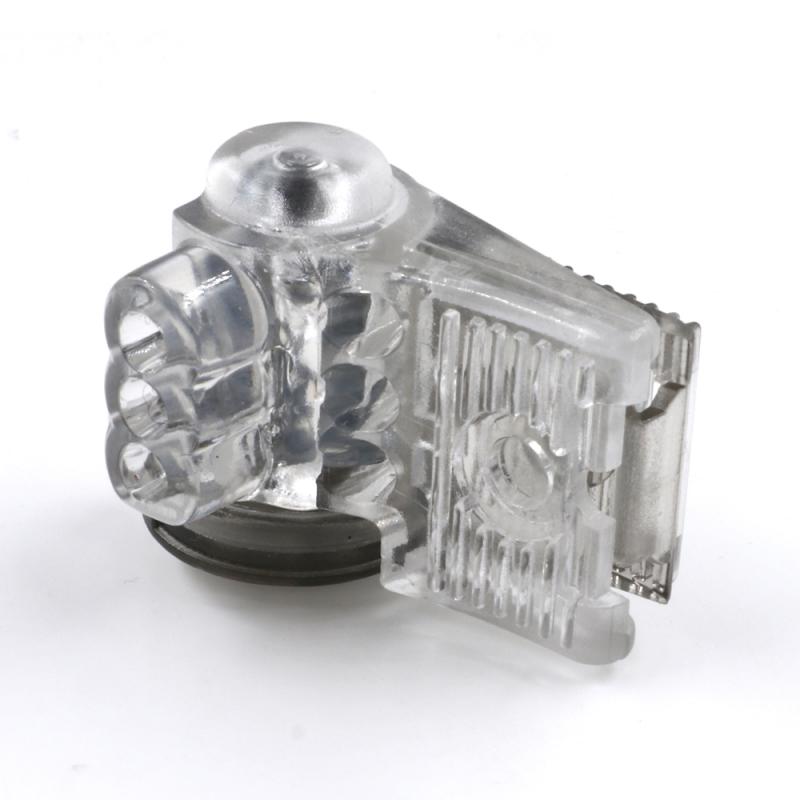

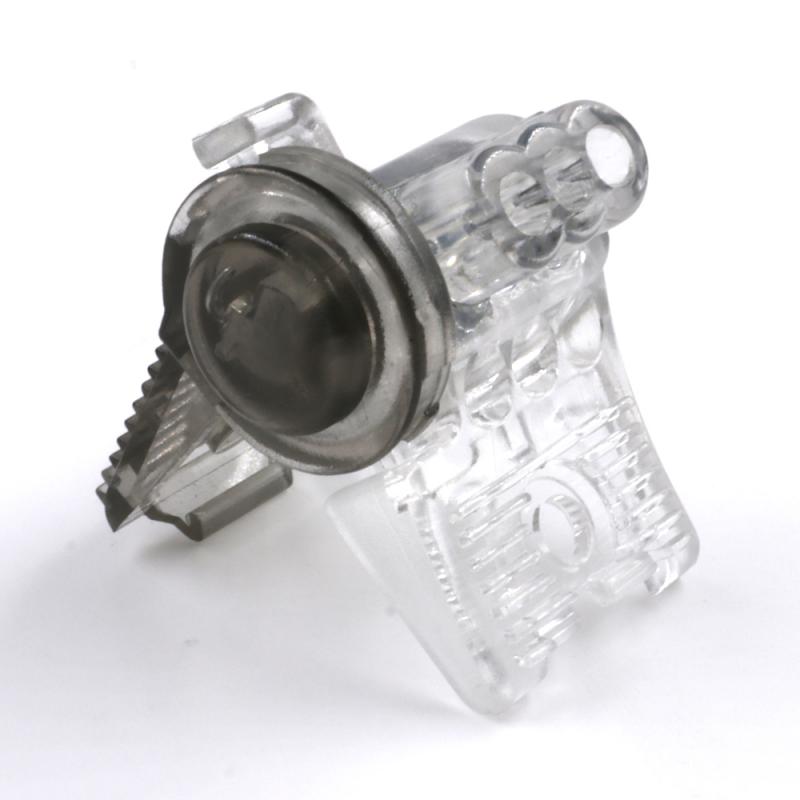

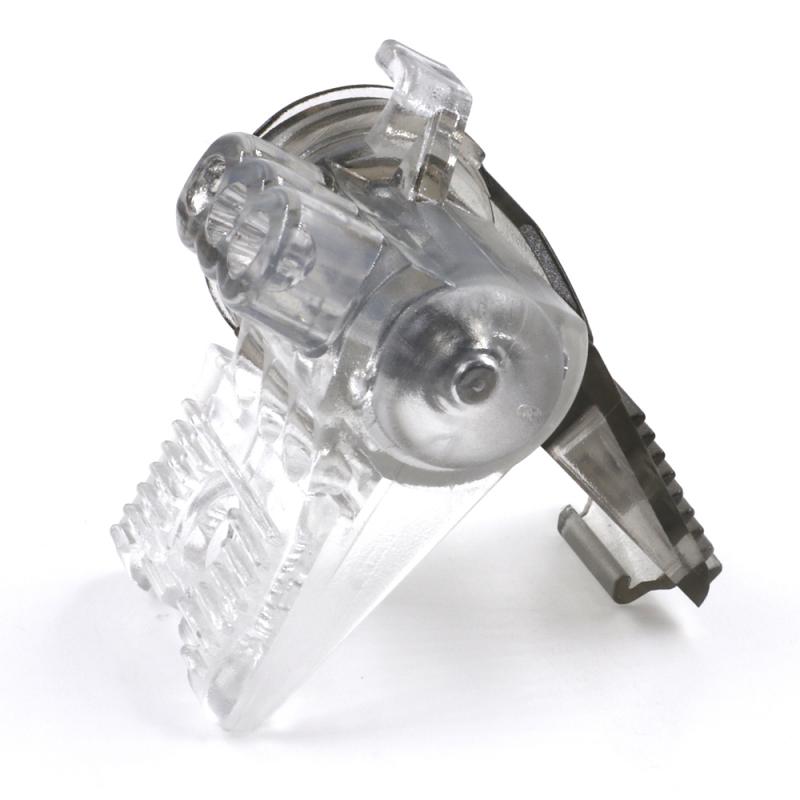

IP68 Outdoor use unstripped wire waterproof Terminal block

Waterproof gel connector- CDF-R3 is our new design. Inner part is silicone filled, can reach IP68, and used for wiring of water projects. And easy operation, do not need tools, no wire nut and also no wire stripping.
  • Brand:

    OLINK
  • Item no.:

    CDF-R3
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Grey, transparent
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

3 pin ip68 waterproof gel connector free-stripping wire


Features of  Waterproof gel connector:
  • Stripping-free design, connection can be made without tools
  • The product is filled with gel-like waterproof glue, which has good adhesion;
  • Waterproof glue can adapt to external temperature changes, and can maintain the gel state from -40°C to 105°C;
  • The waterproof glue can be automatically fused after being cracked by external force, which can maintain good waterproof and moisture-proof ability.

Specification:

Product name:   Waterproof gel connector
Product model:
 CDF-R3
Rated voltage:   400V Rated current:   24A
Wire range:   0.5-2.5 mm²/20-14AWG Waterproof level:   IP68
Conductor  material:   Zinc alloy Housing material:   PC
Application:

 Used for wiring of water projects, such as wiring of household fish tanks, etc., as well as   waterproof and moisture-proof lighting such as lamps and lanterns


application of Small waterproof wire connectors:


3 pin waterproof connector Mainly used in places where wire connectors are needed for waterproofing or underwater, such as fish tanks, outdoor power connections, outdoor lighting, etc.
