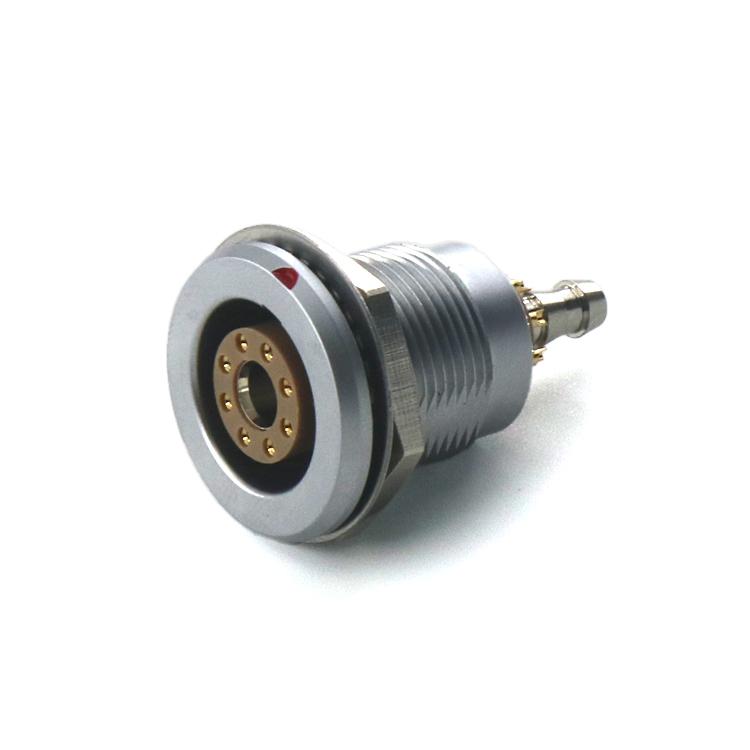

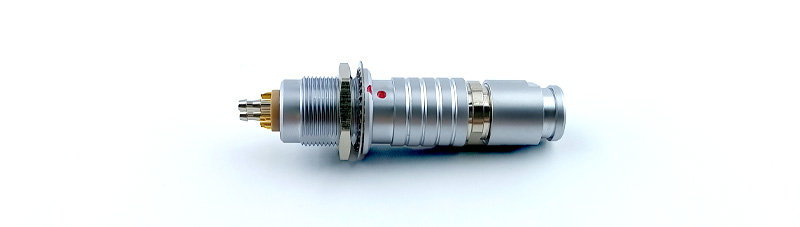

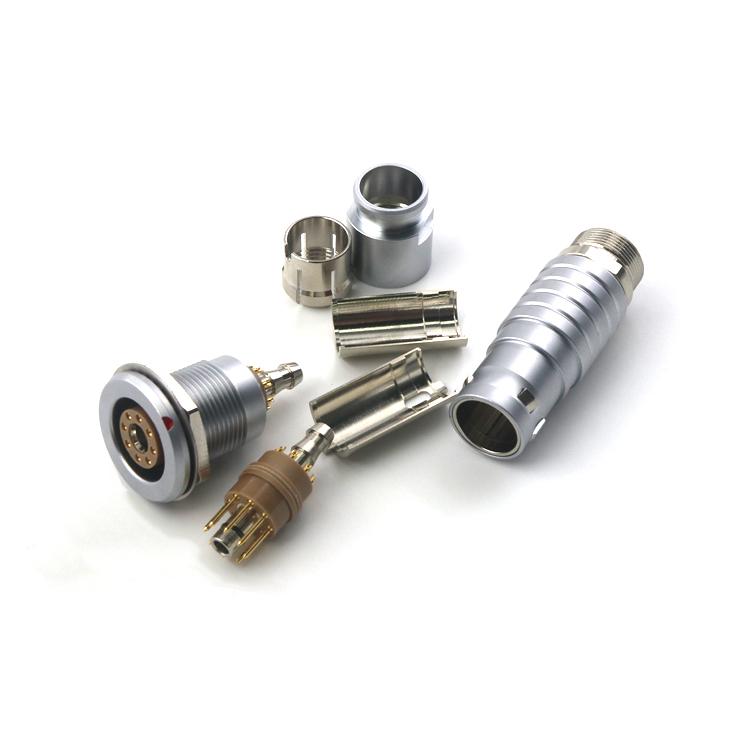

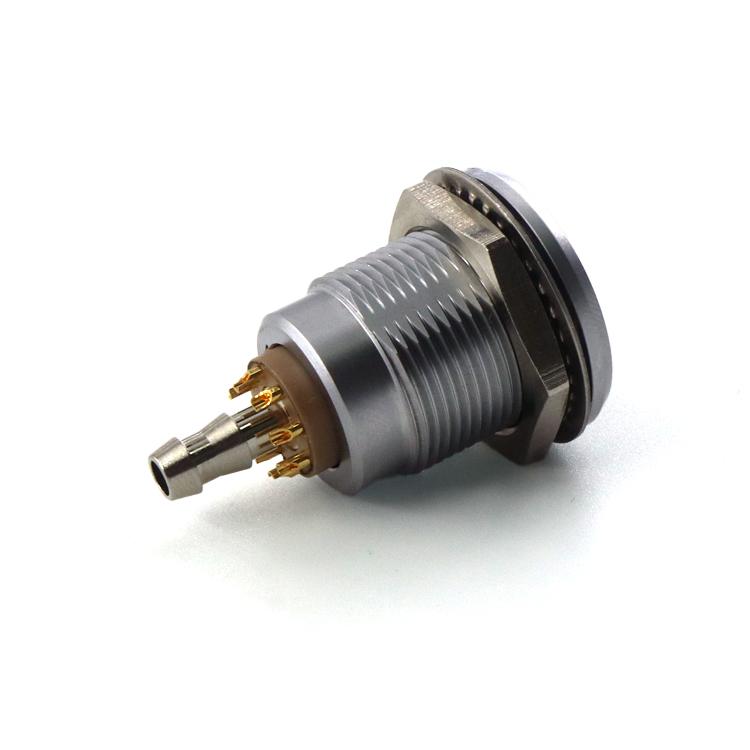

FGG EGG 3B type push-pull connector used in dental equipment or shockwave therapy devices

The EGG FGG pneumatic and signal type connector is widely used as an interface for dental equipment, beauty devices, and shockwave therapy instruments. Its push-pull connector design ensures that the connection is secure and not easily disengaged.

Brand:
OLINK
Item no.:
FGG&EGG 3B.108
Payment:
T/T

Inquiry now

product introduction

Specifications

Product name :	FGG &EGG connector	Protection level :	IP50(when mating)
Insulation material:	PPS	Sheath :	TPU
Contact material :	Brass Gold Plated	Shell Material :	Copper-plated chromium
Connector Type :	inline/Right Angle/90 Degree	Connector Series :	B type
Connector size :	00/0/1/2/3/4/5

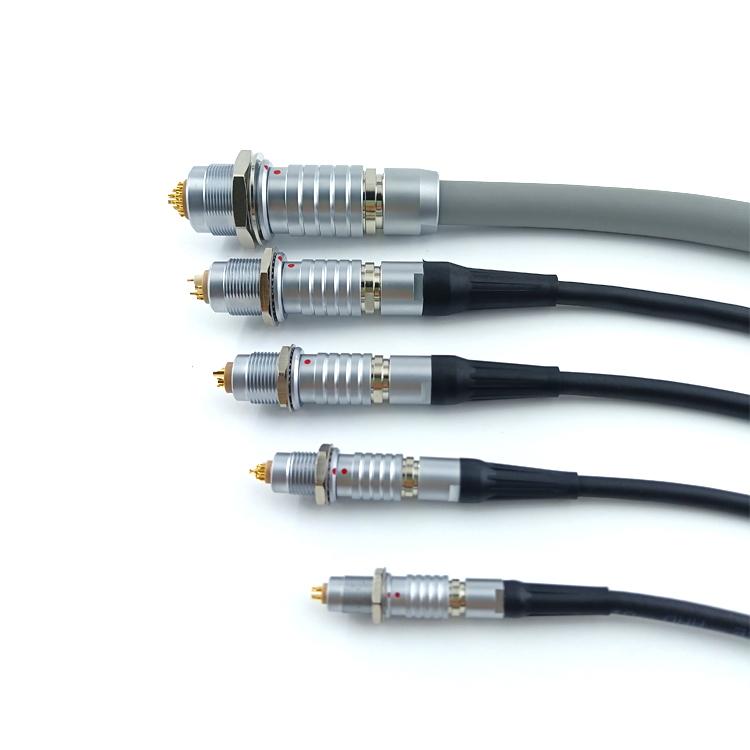

Cable assembly :	customizable	OEM/ODM :	yes

Basic parameters

Insertion times: >5000 times
Working temperature: -40℃~+150℃
Relative humidity: 93±2% at 60°C
Vibration: 10~2000Hz, 15g
Shock: 100g, 6ms
Salt spray resistance: 144h
Insulation resistance: >5000MΩ
Contact resistance: 6mΩ
Rated current: 8A
Number of pins: 8Pin
Number of air pipes: 1Pin or 2Pin
Air pipe specifications:4*6
Working pressure: 6Bar(Max.)
OD. of pins: Φ0.9mm
Applicable wire OD.: Φ6.0-12.0mm

Application scenarios

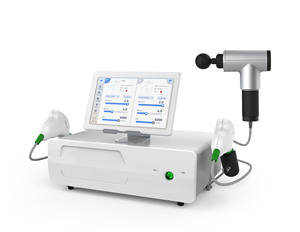

Dental equipment	Shockwave therapy device	Beauty device

Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Categories

Related products

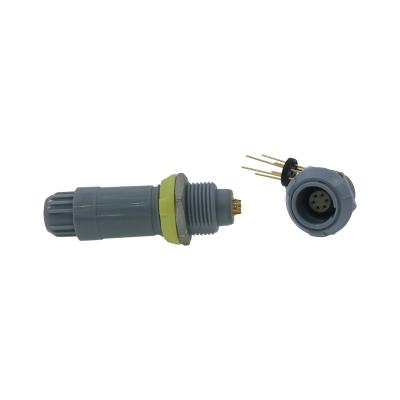

M14 Self-latching push pull connector for Medical Equipment
