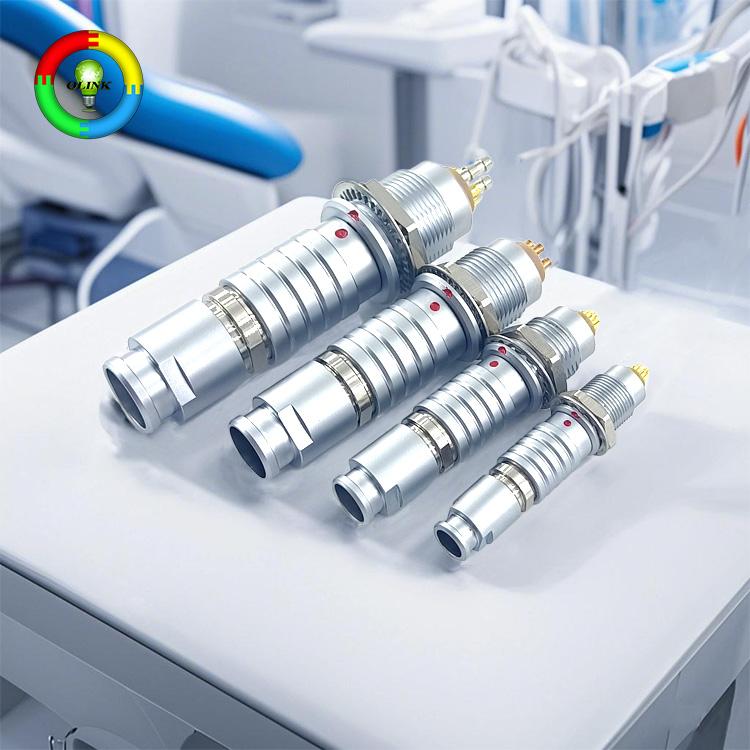

Circular self Locking medical Push Pull Connector Waterproof Metal Connector

The circular push-pull connector eliminates the need for rotation or tightening during plugging and unplugging, enabling quick and efficient operation. Its self-locking design ensures reliable connection, preventing disconnection even under external pulling forces. The housing is crafted with pearl chromium plating, offering a delicate and skin-friendly texture, along with strong corrosion resistance for stable performance in harsh environments.

Brand:
OLINK
Item no.:
FGG&EGG
Payment:
T/T

Inquiry now

product introduction

Circular self Locking medical Push Pull Connector Waterproof Metal Connector

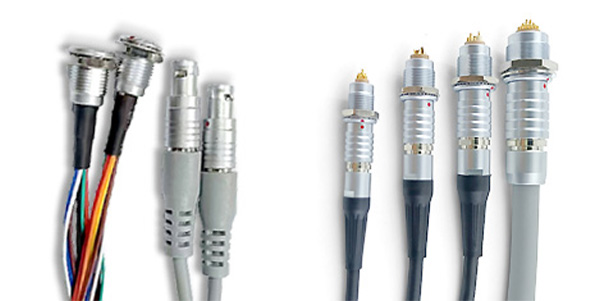

The circular push-pull connector offers excellent convenience and ease of use. It eliminates the need for rotation or tightening, making the plug-and-pull process simple and quick, thus significantly improving operational efficiency. Its self-locking design ensures connection reliability while preventing accidental disconnection due to negligence. Once connected in place, it automatically locks, and external forces pulling on the connected cable will not cause it to disconnect.

Product Properties

	Shell material ：	Copper alloy with pearl chrome plating
	Insulator ：	PPS
	Pin core ：	Copper alloy with gold plating
	Mechanical life ：	≥5000 times
	Operating temperature ：	-40℃ ~ +140℃
	Humidity ：	60°C (93 + 2%)
	Vibration ：	10~2000Hz, 15g
	Shock ：	100g，6ms
	Salt spray corrosion test：	144h
	Insulation resistance tester ：	>5000MΩ
	IP level ：	IP68 / IP67

Appearance & Craftsmanship

The shell surface of the self-locking push-pull connector adopts a pearl chromium plating process, giving the product a delicate pearl-like texture that feels friendly both visually and to the touch. Moreover, chromium itself has good corrosion resistance, enabling the metal push-pull connector to work in humid or harsh environments

Application Scenarios

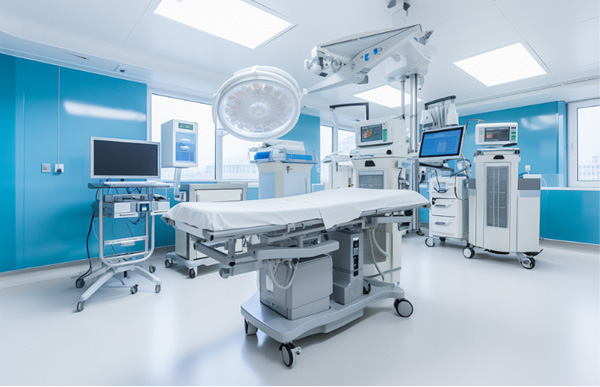

Medical push-pull connectors are generally used as interfaces for medical detection equipment. Their unique structural design prevents poor connections caused by accidental cable pulling.

Product Range

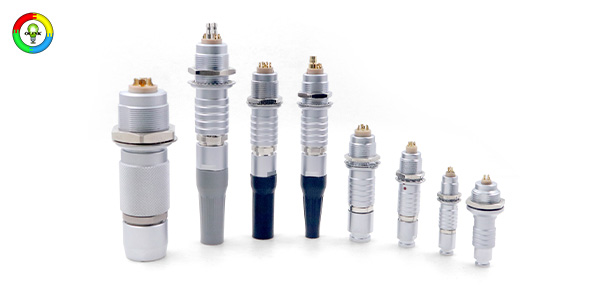

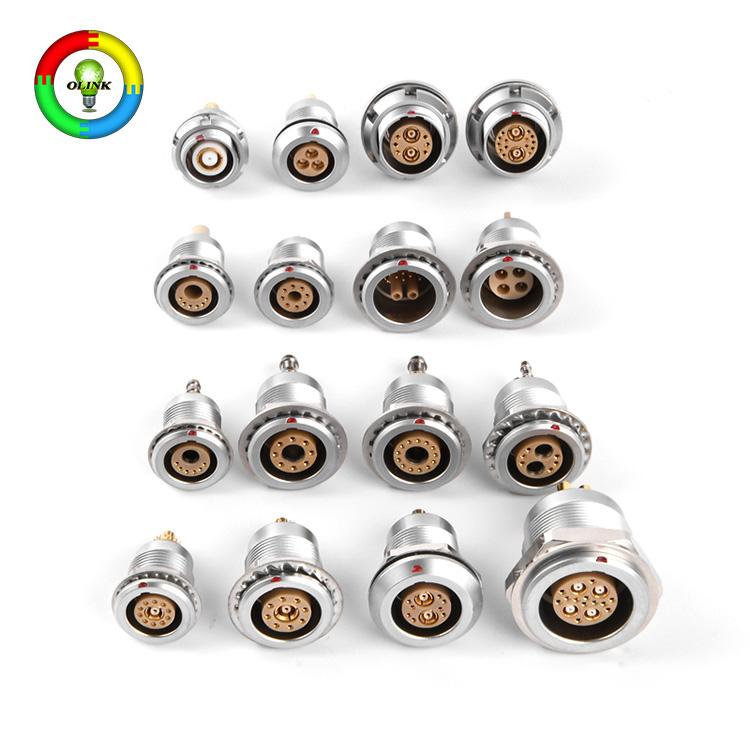

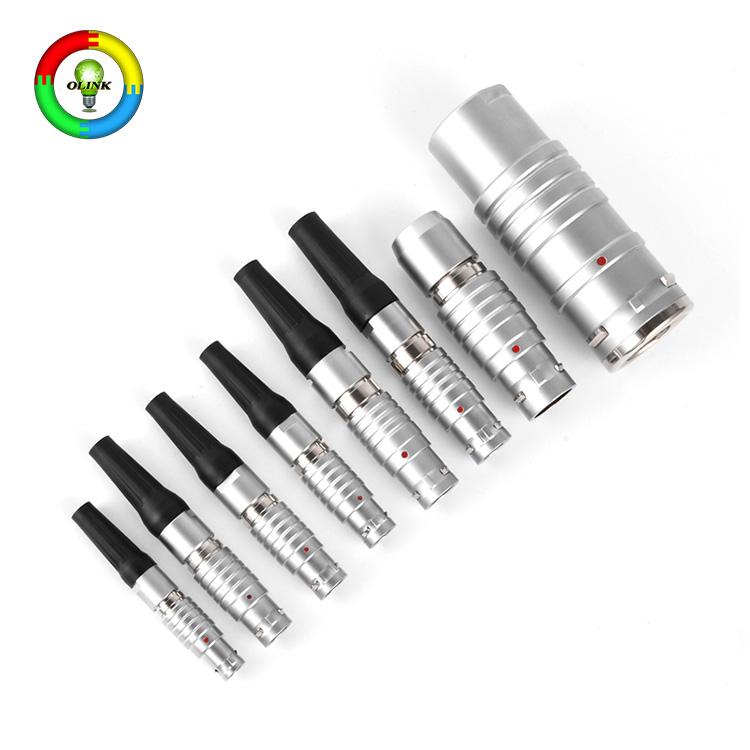

Size Series: Currently, our company can provide 00, 0, 01, 02, 03, 04, and 05 series in terms of size.

Functional Types: We offer the conventional B series, the IP67 waterproof T and K series, as well as the W series waterproof push-pull connectors with IP68 waterproof capability.

Customization Capabilities

For non-standard pin numbers or interfaces, we can provide customized services and ODM/OEM services, and can provide connectors supporting medical harness processing and injection molding overmolding service.
