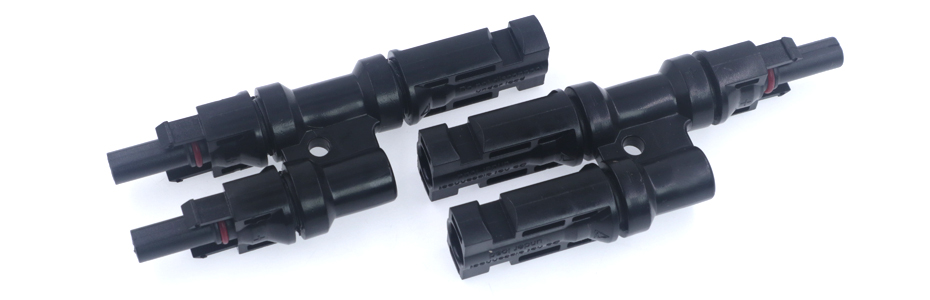

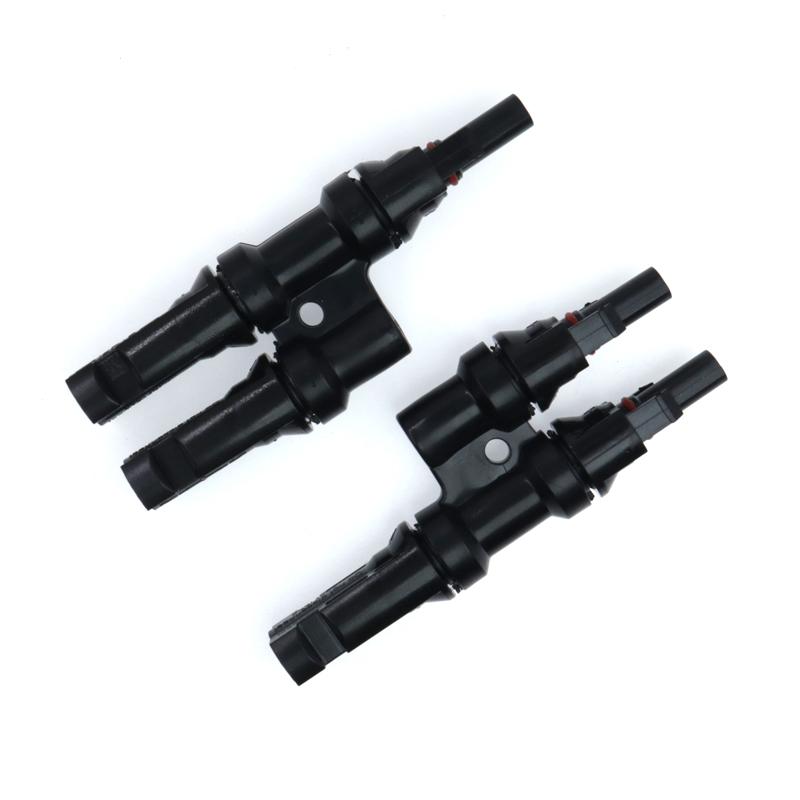

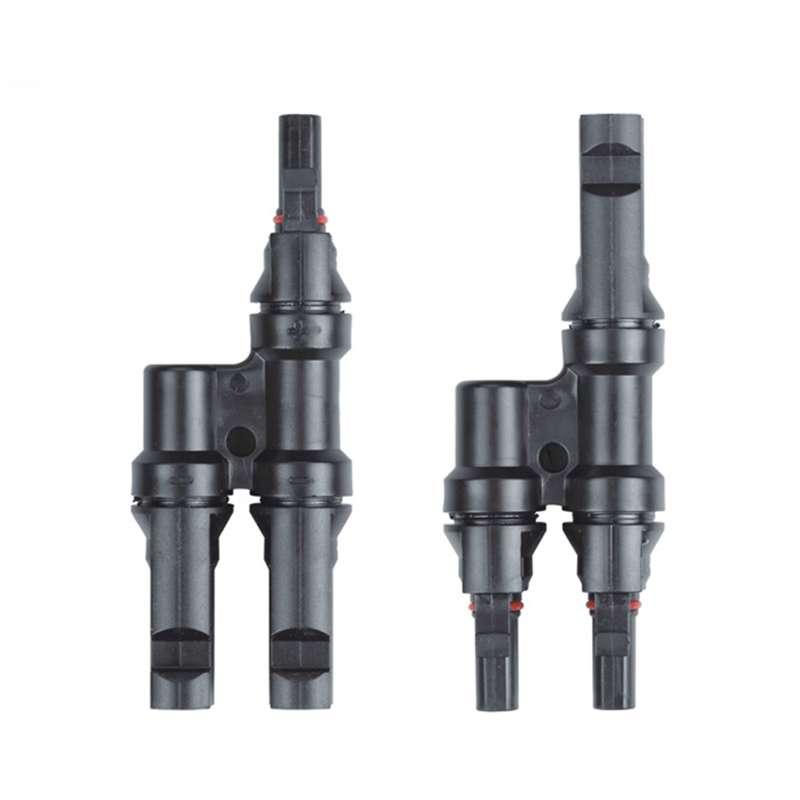

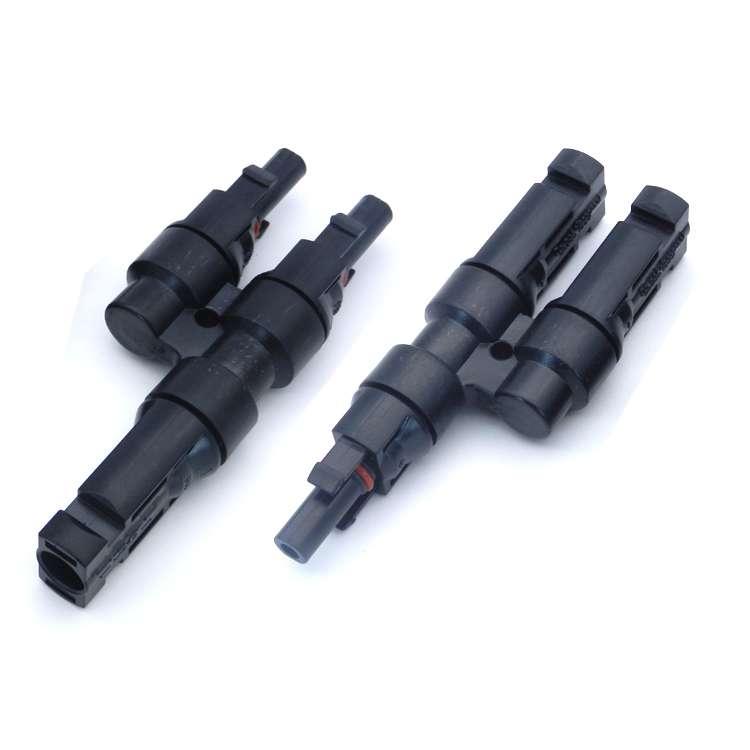

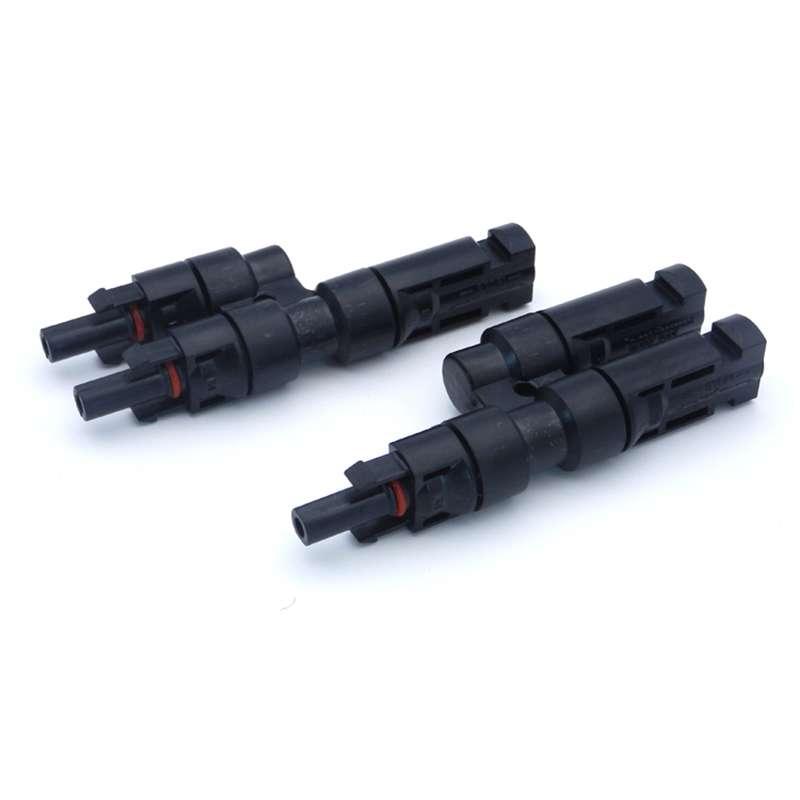

3 Way Solar Connector MC4 Solar Branch Connector Solar Quick Connector

The 2-In 1-Out Solar Parallel Connector Is A Common Connector For Parallel Connection Of Photovoltaic Systems, And Can Work Under 1.5KV Withstand Voltage.

  • Brand:

    OLINK
  • Item no.:

    PV-LT2
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Shipping port:

    Xiamen
  • Lead Time:

    5 day

  • The 2-In 1-Out Solar Parallel Connector Is A Common Connector For Parallel Connection Of Photovoltaic Systems, And Can Work Under 1500V Withstand Voltage.

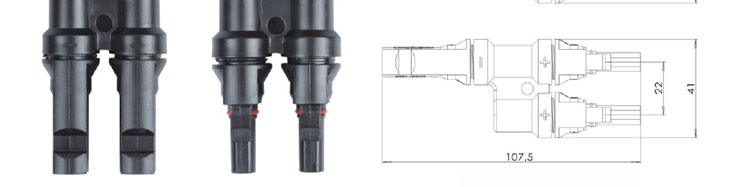

  Drawings Of MC4 2 To 1 Connector


Technical Data For 2 In 1 MC4 Connector

Product name   T branch Connector
Rated voltage   1500V DC(IEC)
Rated currect

 17A(1.5MM2)

 22A(2.5MM2, 14AWG)

 30A(4mm2, 6mm2, 12AWG, 10Awg)

Degree of protection mated   IP67
Insulation material   PC/PPO
Locking system   Snap-in
Flame class   UL-94-V0
Contact material   Messing, Verzinnt   copper alloy, tin-plated


More T-Branch Type Solar Connectors







PV-T3
PV-T4
PV-T5
PV-T6
*For more information, please contact us by email or through any contact information on the webpage.
