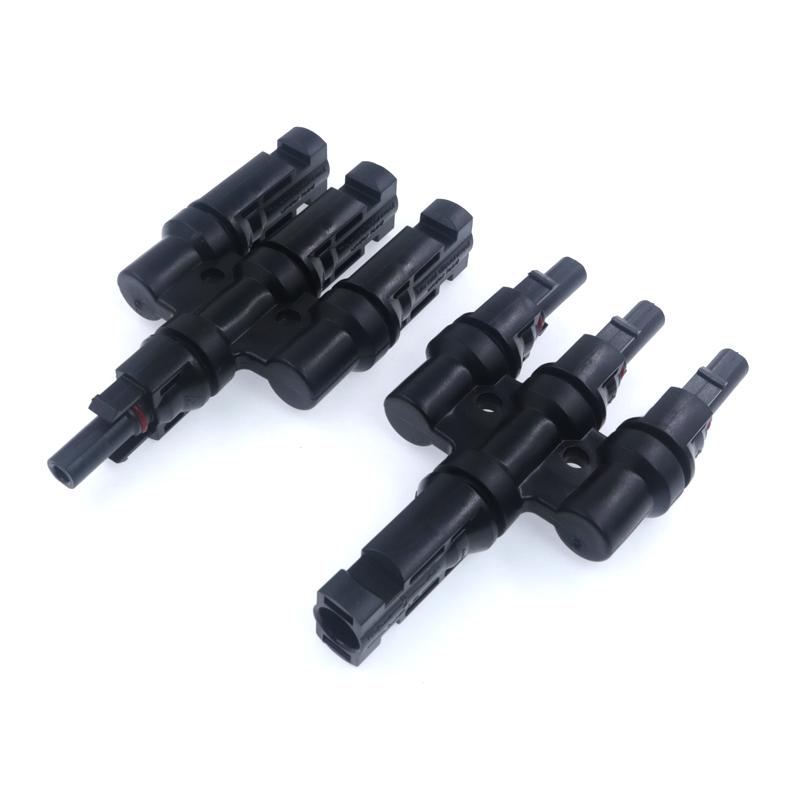

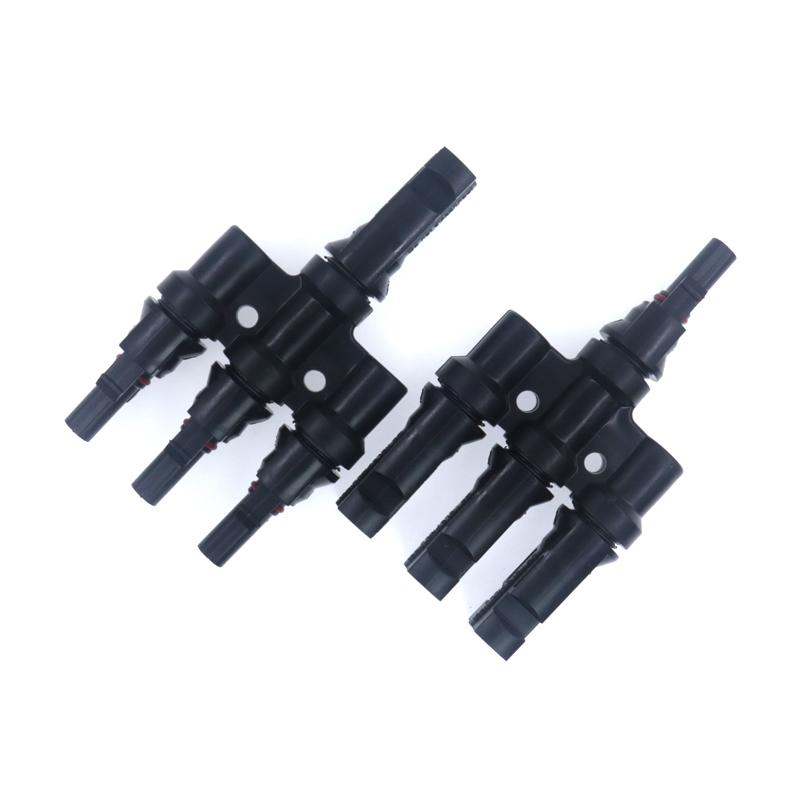

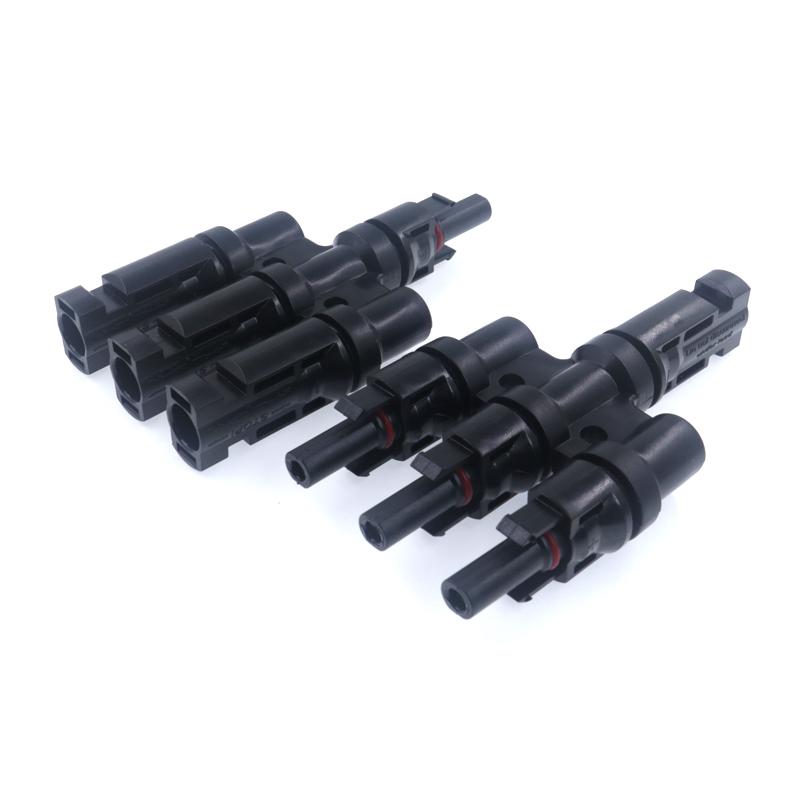

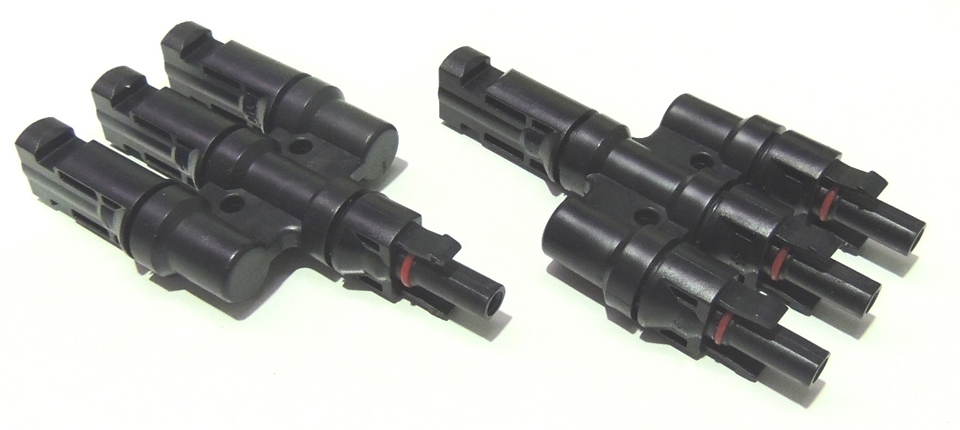

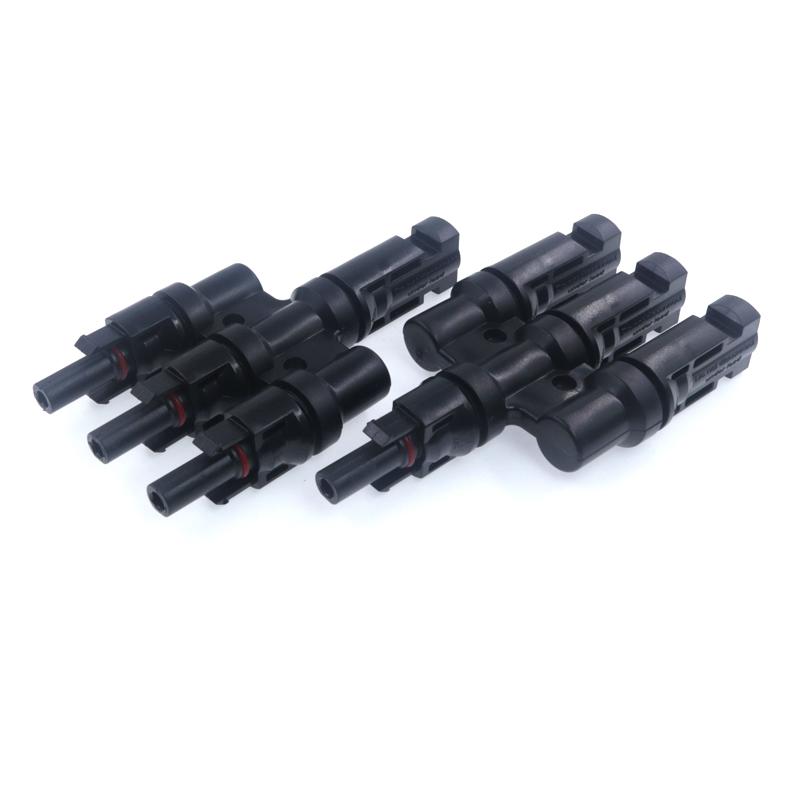

3 Way MC4 Branch Connector Solar 3 In 1 Out MC4 Connectors

One pair of 3 Input 1 Out T-Branch Connectors for solar panels.Waterproof Grade IP67, Can Be Used Outdoors, With A Buckle Design, It Is Not Easy To Fall Off By Itself During Work.

Brand:
OLINK
Item no.:
PV-LT3
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Shipping port:
Xiamen
Lead Time:
5

Inquiry now

product introduction

Description Of MC4 T Branch connector

The MC4 System Consists Of A Plug And Socket Design. The Plugs And Sockets Are Inside Plastic Shells That Appear To Be The Opposite Gender - The Plug Is Inside A Cylindrical Shell That Looks Like A Female Connector But Is Referred To As Male, And The Socket Is Inside A Square Probe That Looks Male But Is Electrically Female.

Drawings Of 3 In 1 MC4 Connector

Technical Data For 3 In 1 MC4 Connector

Product name	T branch Connector
Rated voltage	1500V DC（IEC）
Rated currect	17A(1.5MM2) 22A(2.5MM2, 14AWG) 30A(4mm2, 6mm2, 12AWG, 10Awg)
Degree of protection mated	IP67
Insulation material	PC/PPO
Locking system	Snap-in
Flame class	UL-94-V0
Contact material	Messing, Verzinnt copper alloy, tin-plated

More T-Branch Type Solar Connectors

PV-T2	PV-T4	PV-T5	PV-T6

*For more information, please contact us by email or through any contact information on the webpage.
