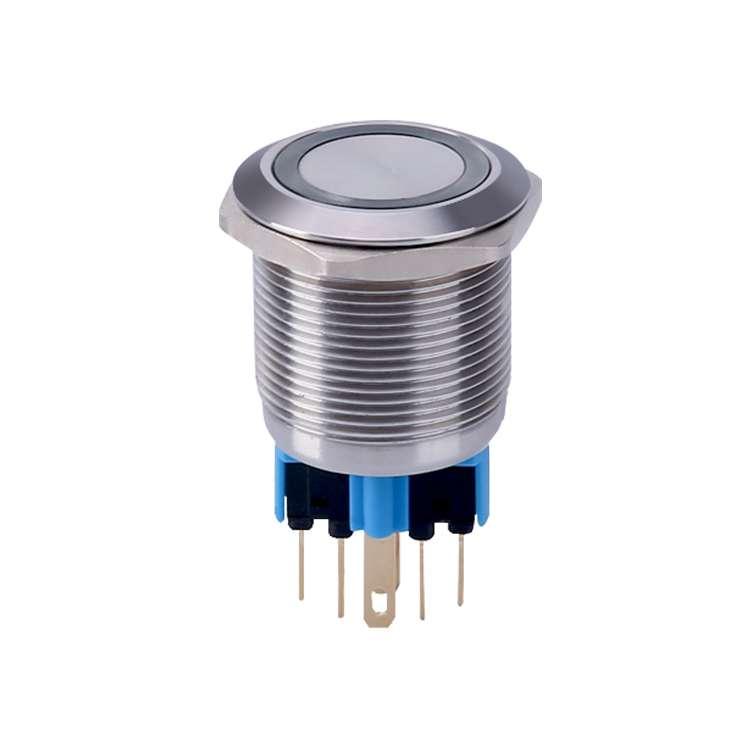

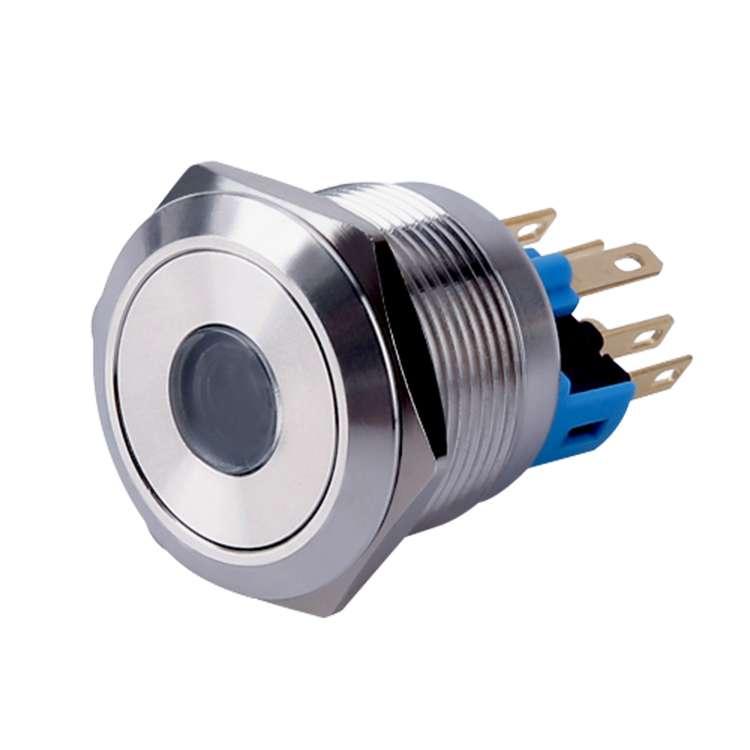

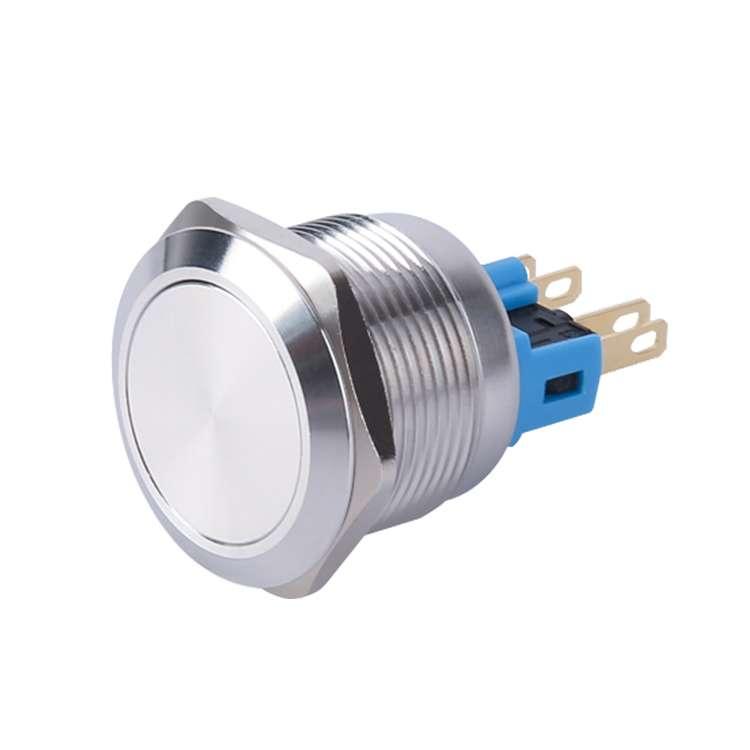

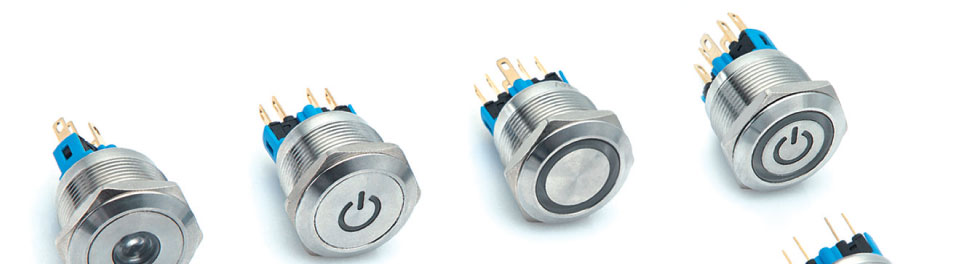

22mm illuminated Pcb Mount Push Button Switch Reset/Maintain

1NO1NC switch, comfortable feeling of press. There are momentary and self-locking can be chosen.

  • Brand:

    OLINK
  • Item no.:

    22QB
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Sliver, other colors(OEM)
  • Min order:

    40
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

22mm illuminated pcb mount push button switch reset/maintain

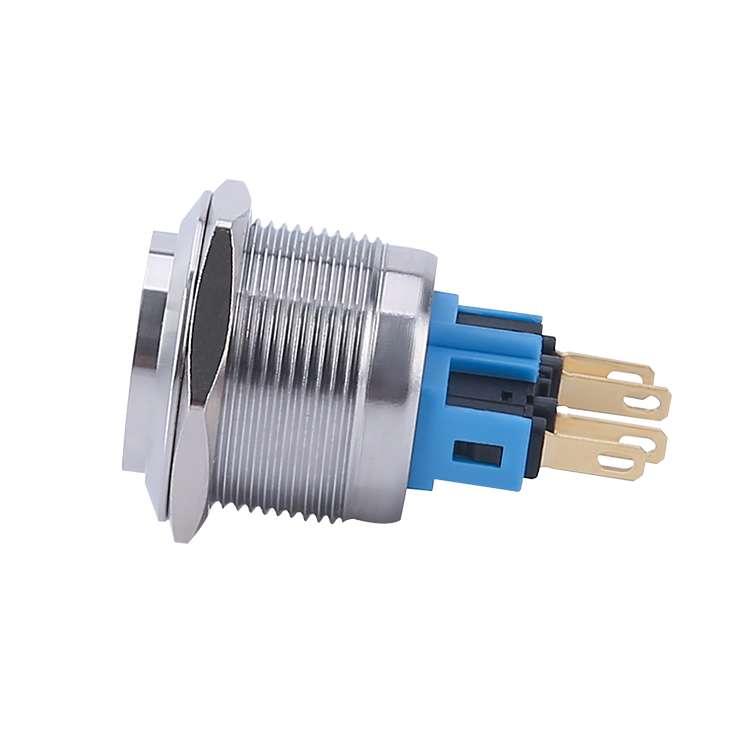

  Description of 22mm Pushbutton

This metal push button switch is easy setup. All you need is a 0.86"/22mm hole and the switch will sit in nicely. The switch functions is 1NO1NC, Momentary/Self-locking. Wiring methods is soldering.


  Features of IP65 push button switch

  • Stable structure: 2000V withstand voltage test without leakage, smooth hand feeling

  • Exquisite appearance: 304 stainless steel, exquisite appearance, high-end atmosphere and high-grade

  • Dust-proof and water-proof: Water-proof silicone is installed inside the product, which is safe and environmentally friendly, waterproof and dustproof

  • Superior performance: super large silver alloy contacts. 1 million times long mechanical life


  Specifications of Metal Push Button Switch

Product Name:

22mm ip65 push button switch

Product Model: 22QB
Switch Rating: 5A/250VAC Terminal Type: 2.8 x 0.5   J pin terminal
Switch Function: 1NO1NC, Momentary/Self-locking Environment Temperature: -20℃~+55℃
Contact Resistance: ≤50 mΩ Insulation Resistance: ≥1000 MΩ
Panel Thickness: 1~10 mm Protection Grade: IP65, IK10
Contact Material: Sliver Alloy Button Material: Stainless steel, Zn-Al alloy(any color)
Body Material: Brass nickel plated, Stainless steel, Zn-Al alloy(any color) Base Material: PBT
Lamp Voltage: 2V, 3V, 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V Lamp color: Red, Orange, White, Blue, Green, Yellow

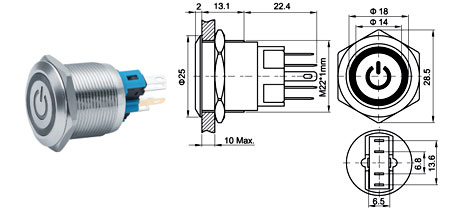

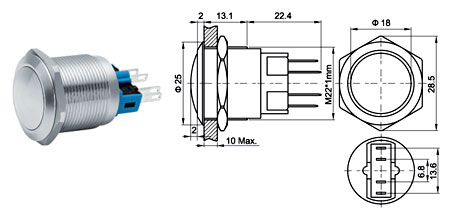

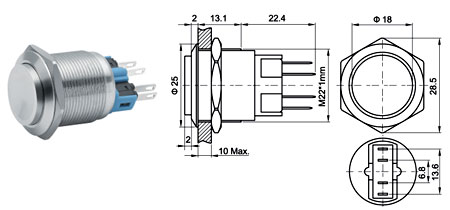

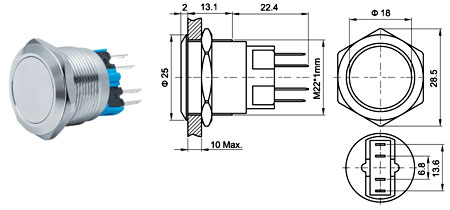

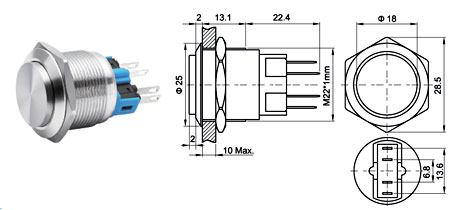

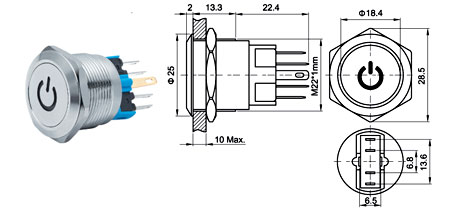

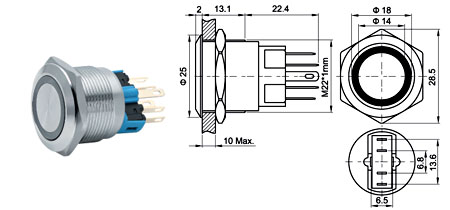

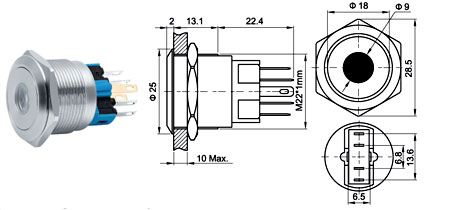

  Drawing of waterproof push button switch




22QB-F11Z

22QB-F11Z/D



22QB-H11Z/E

22QB-F11Z/E



22QB-B11Z

22QB-F11Z/EV



22QB-G11Z
22QB-F11Z/V

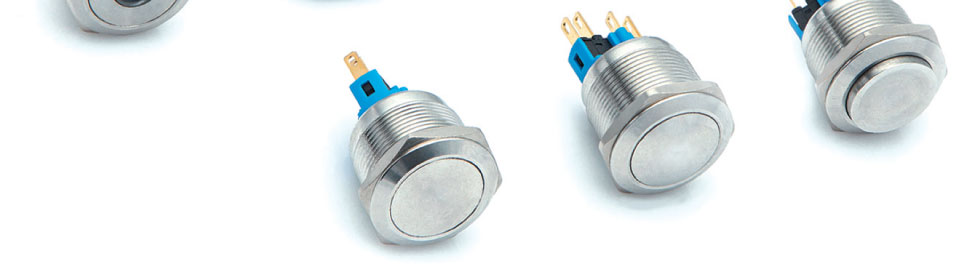

  Application of metal Push Button switch

16mm push button switch

Applications: Car modification, battery car modification, computer modification, access control switch, home appliance button, industrial control instrument


 22QB Push button Optional Accessories

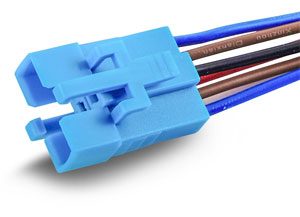

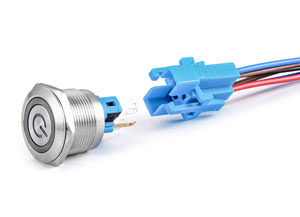

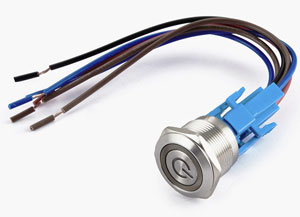

  • 22mm PushButton: The in-line quick socket can eliminate the cumbersome operations of welding and connecting terminals during the switch installation process, and it is more convenient to replace the damaged button switch in the future, saving time and effort.

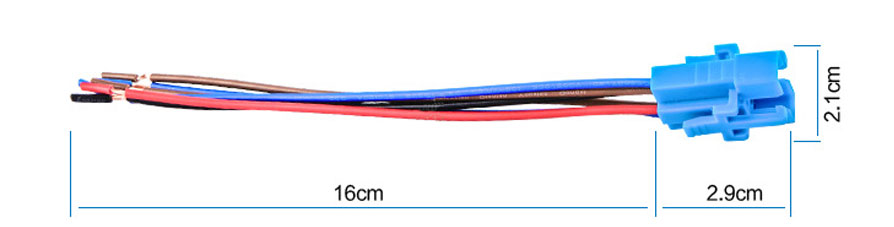

  • 22mm button switch socket, the default wire length is 150mm, the wire diameter is 0.5mm2, and customization is acceptable.

*If you need more information, you can find customer service through the contact information on the right side of this page.
