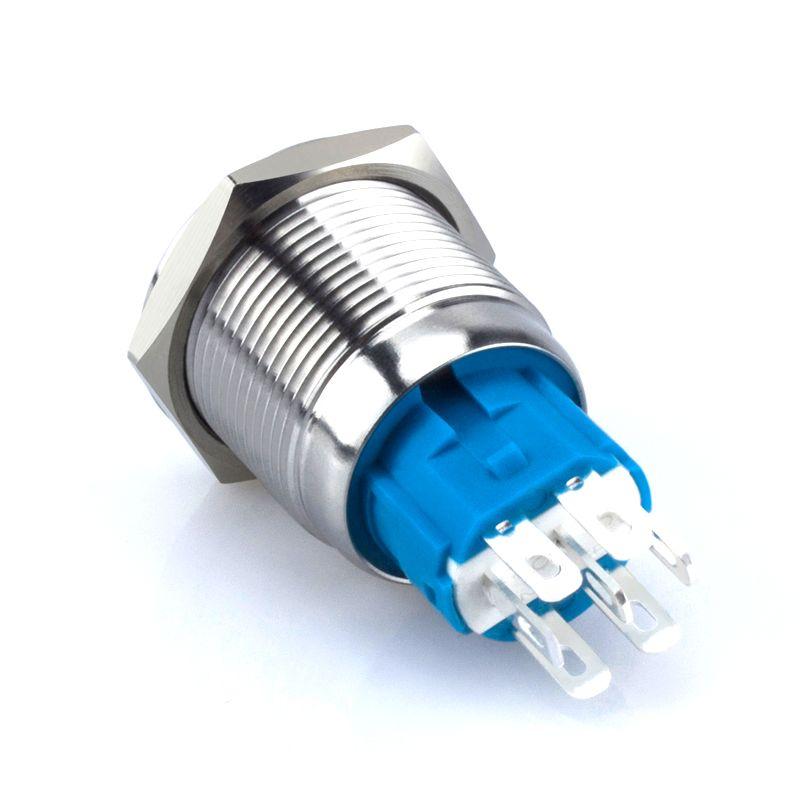

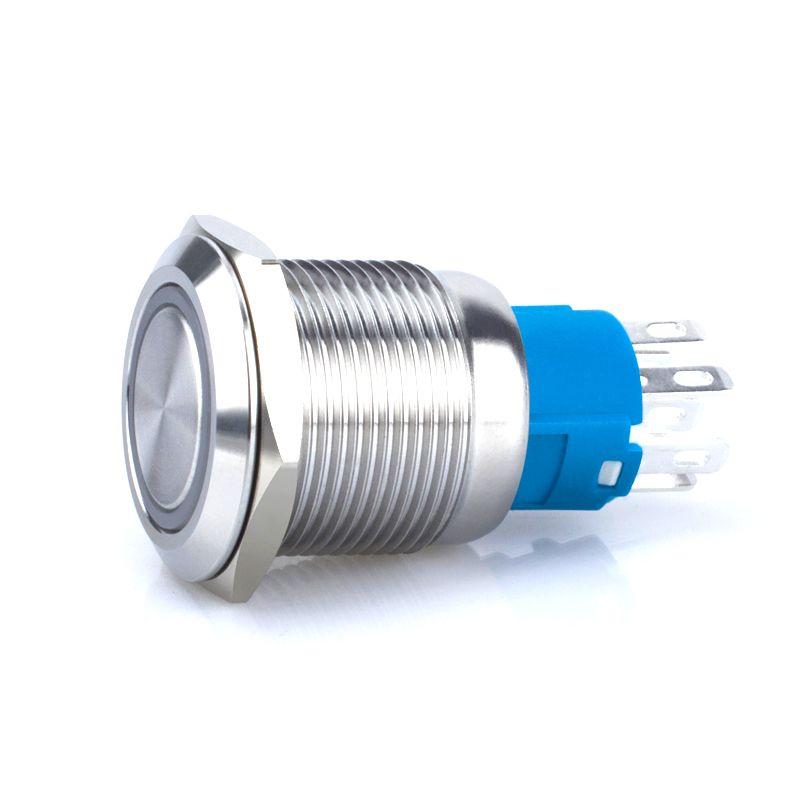

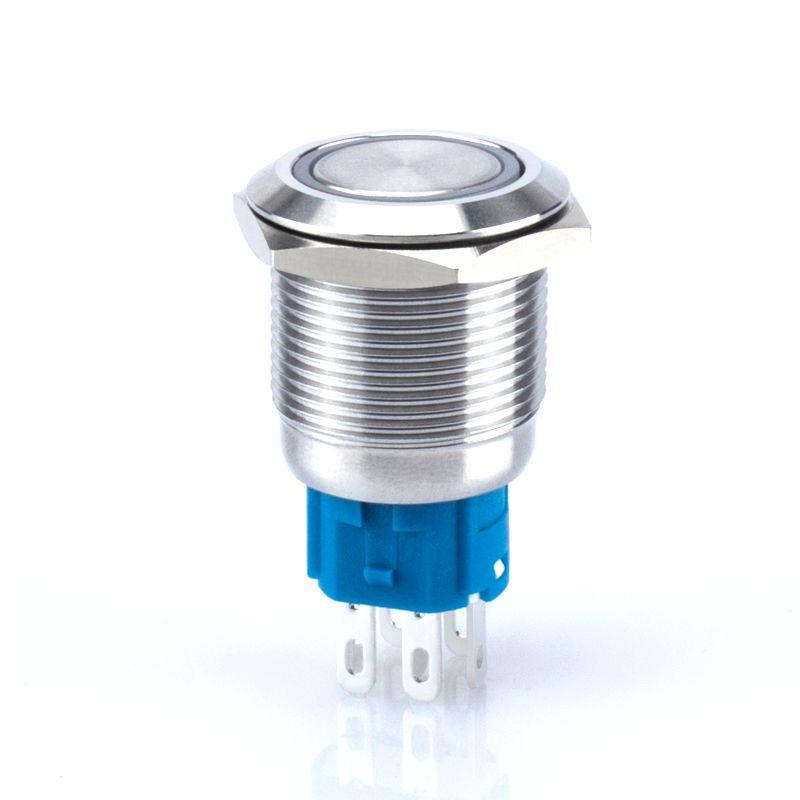

19mm 1NO1NC illuminated push button switch 15 amp

Long life, with beautiful appearance and excellent handle. Big current, can reach 16A.

  • Brand:

    OLINK
  • Item no.:

    19QE
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Sliver, other colors(OEM)
  • Min order:

    40
  • Product weight:

    20
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

19mm 1NO1NC illuminated push button switch 15 amp


  Description of 19mm Pushbutton

This metal push button switch is easy setup. All you need is a 0.74"/19mm hole and the switch will sit in nicely. It has two switch functions: 1NO1NC/2NO2NC, Momentary/Self-locking.


  Features of IP67 push button switch

  • IP67 dustproof and waterproof

  • Metal surface, exquisite and durable

  • Built-in LED lamp beads, uniform and bright light transmission, long service life

  • High load, the maximum can withstand 20A current in actual use

  • Long service life, 50,000 power-on life guarantee

  • Optional with cable connection tail plug, more convenient to use


  Specifications of Metal Push Button Switch

Product Name:

19mm high current push button switch

Product Model: 19QE
Switch Rating: 16A/250VAC Terminal Type: 2.8 x 0.5 J pin terminal
Switch Function: 1NO1NC/2NO2NC, Momentary/Self-locking Environment Temperature: -20℃~+55℃
Contact Resistance: ≤50 mΩ Insulation Resistance: ≥1000 MΩ
Panel Thickness: 1~10 mm Protection Grade: IP65/IP67, IK10
Contact Material: Sliver Alloy Button Material: Stainless steel, Zn-Al alloy(any color)
Body Material: Brass nickel plated, Stainless steel, Zn-Al alloy(any color) Base Material: PBT
Lamp Voltage: 2V, 3V, 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V Lamp color: Red, Orange, White, Blue, Green, Yellow

  Drawing of waterproof push button switch




19QE-F11Z

19QE-H11Z



19QE-F11Z/E

19QE-H11Z/E



19QE-F11Z/EV

19QE-H11Z/EV



19QE-F11Z/V
19QE-H11Z/V

  Application of Illuminated Push Button

16mm push button switch

Most often push button switches are widely used in electrical automation equipment, large machinery, home appliances


  19QE Push button Optional Accessories


  • 19mm PushButton The in-line quick socket can eliminate the cumbersome operations of welding and connecting terminals during the switch installation process, and it is more convenient to replace the damaged button switch in the future, saving time and effort.
  • The default wire length is 150mm, and the wire length can be customized according to the specific requirements of the order.
