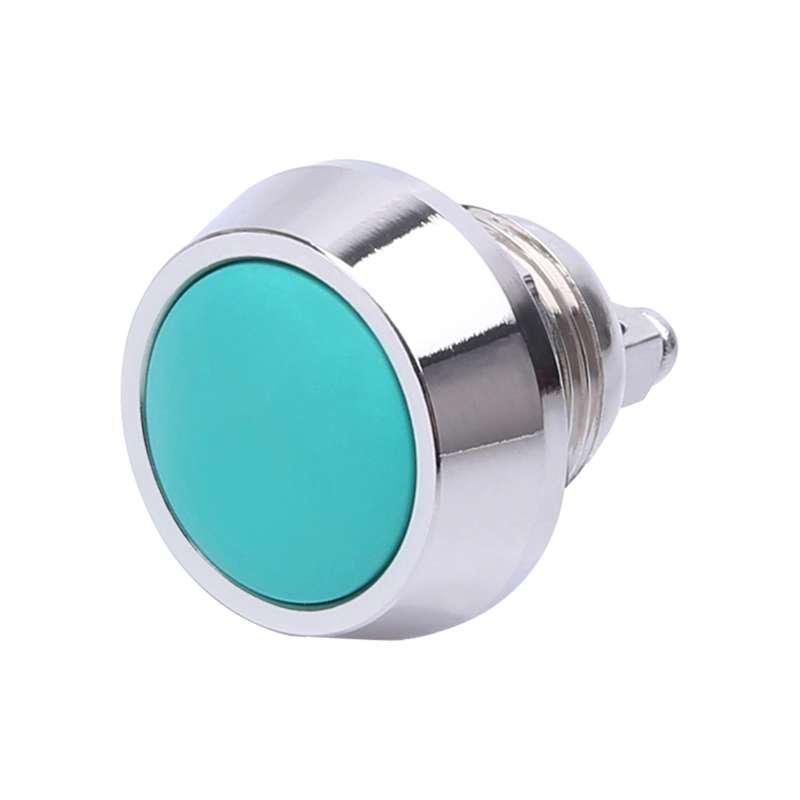

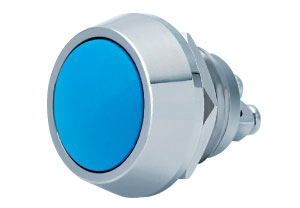

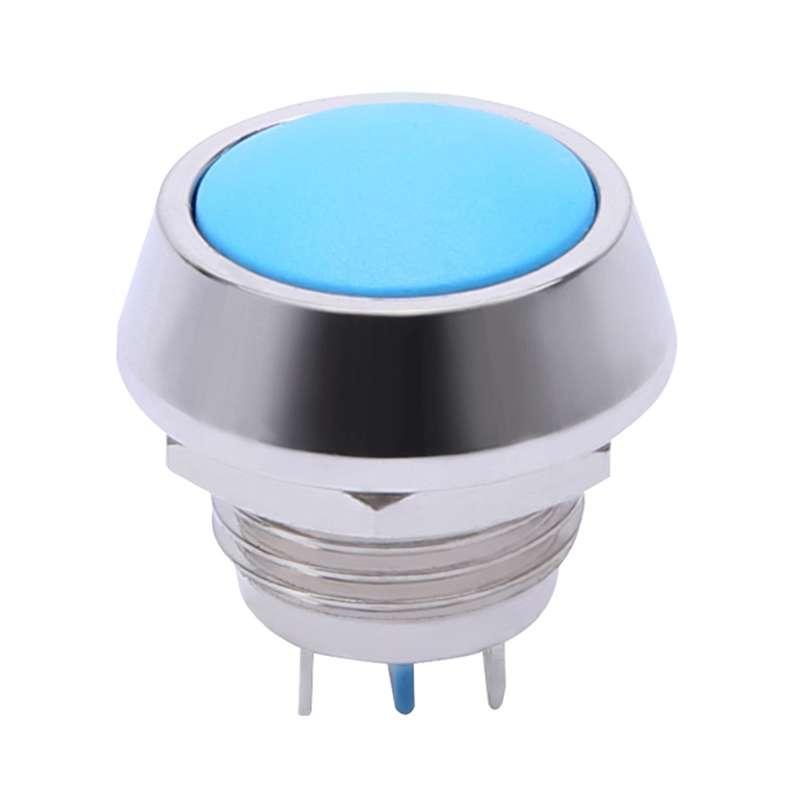

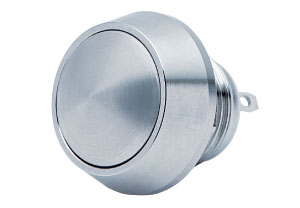

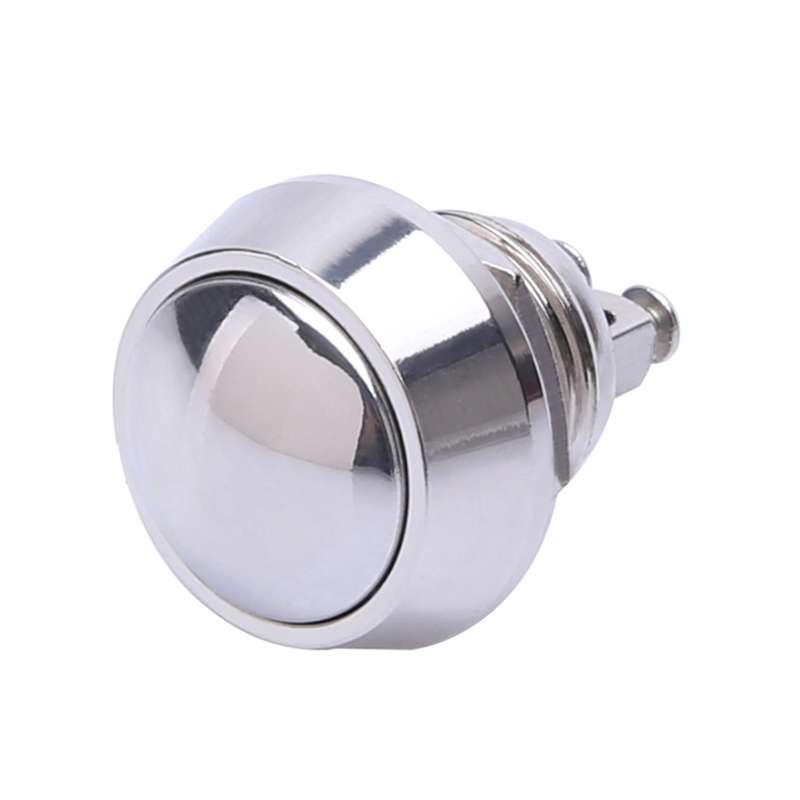

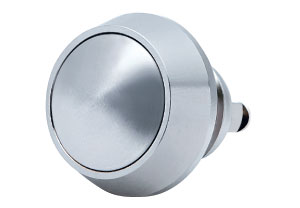

12mm push button momentary switch 1NO

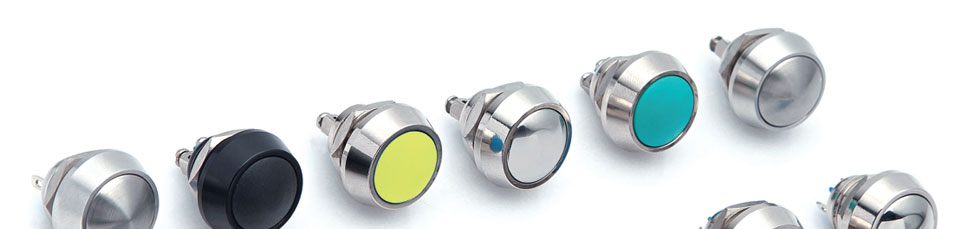

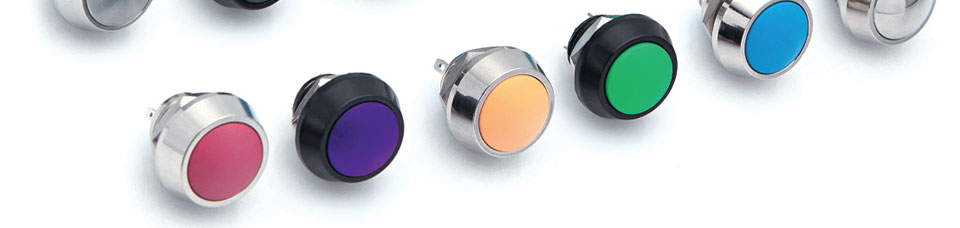

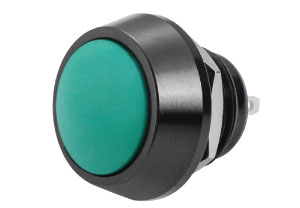

There are 2 kinds of contact terminal: solder terminal (J pin terminal) and screw terminal. And many different button colors can choose.



  • Brand:

    OLINK
  • Item no.:

    12QA
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Sliver, other colors(OEM)
  • Min order:

    40
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

12mm push button momentary switch 1NO

   Features of 12mm Push Button Switch

  • Momentary switch function: As long as we keep pressing on to button, it will work. As soon as we stop touching the button, it will stop.

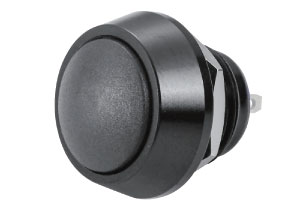

  • Metal shell: Except stainless steel, there still have brass nickel plated and Zn-Al alloy of the shell material. You can make in in any color, like black.
  • Protection level: IP65, IK08. Completely prevent water and dust from entering.
  • Wiring: We are able to provide wiring. If this is something you’re looking for, mention this with detail requirements when making an inquiry.


   Specifications of 12mm latching switch

Product Name:

12mm momentary push button switch

Product Model: 12QA
Switch Rating: 2A/250V AC   2A/36V DC Terminal Type:

2.0x0.5  J pin terminal / Screw terminal

Switch Function: 1NO, Momentary Environment Temperature: -20℃~+55℃
Contact Resistance: ≤50mΩ Insulation Resistance: ≥1000MΩ
Panel Thickness: 1~5mm Protection Grade: IP65, IK08
Contact Material: Sliver Alloy Button Material: Stainless steel, PBT
Body Material: Brass nickel plated, Stainless steel, Zn-Al alloy(any color) Base Material: PBT

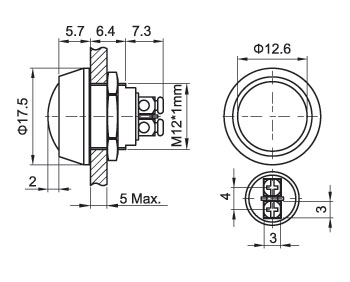

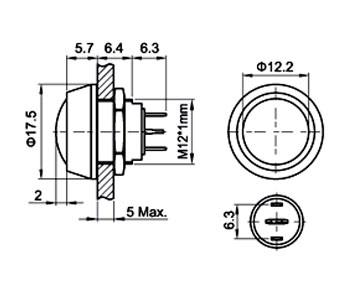

   Drawing of 12mm Button Switch

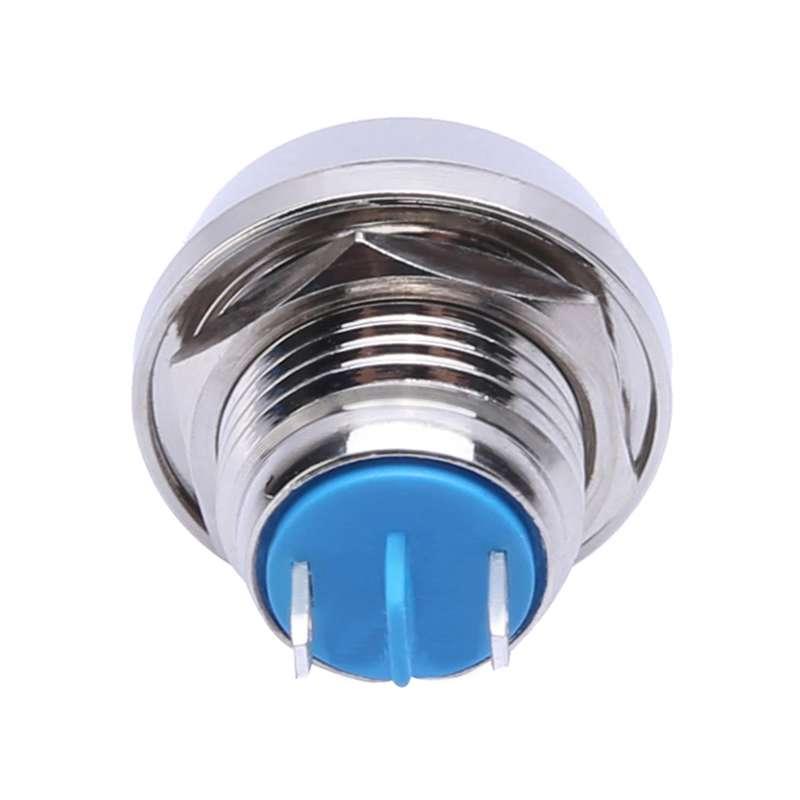

12QA-B10 J Pin Terminal

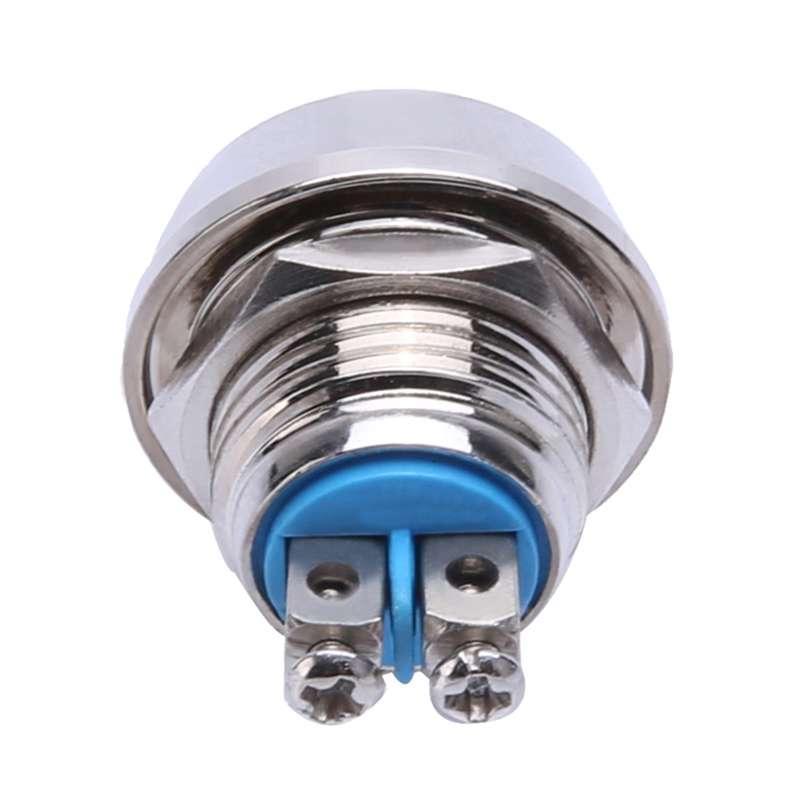

12QA-B10L Screw Terminal

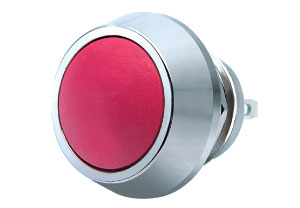

   Application of Red Push Button Switch

12mm push button switch can be applied to car motorcycle modificaction, electric equipment, appliance, machine, home Lamps etc.

16mm push button switch

*For more information, please contact us.
