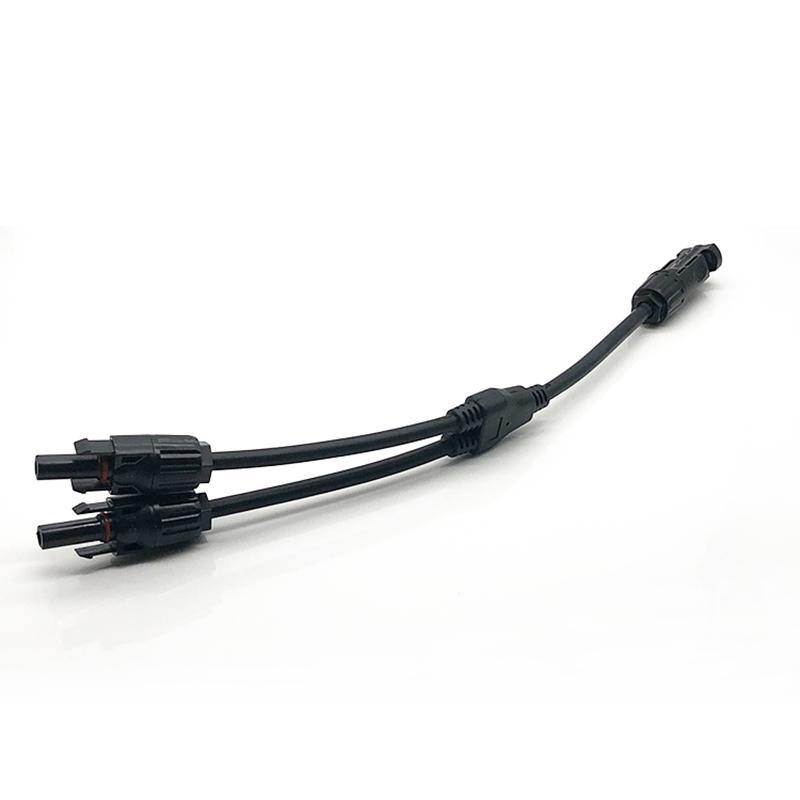

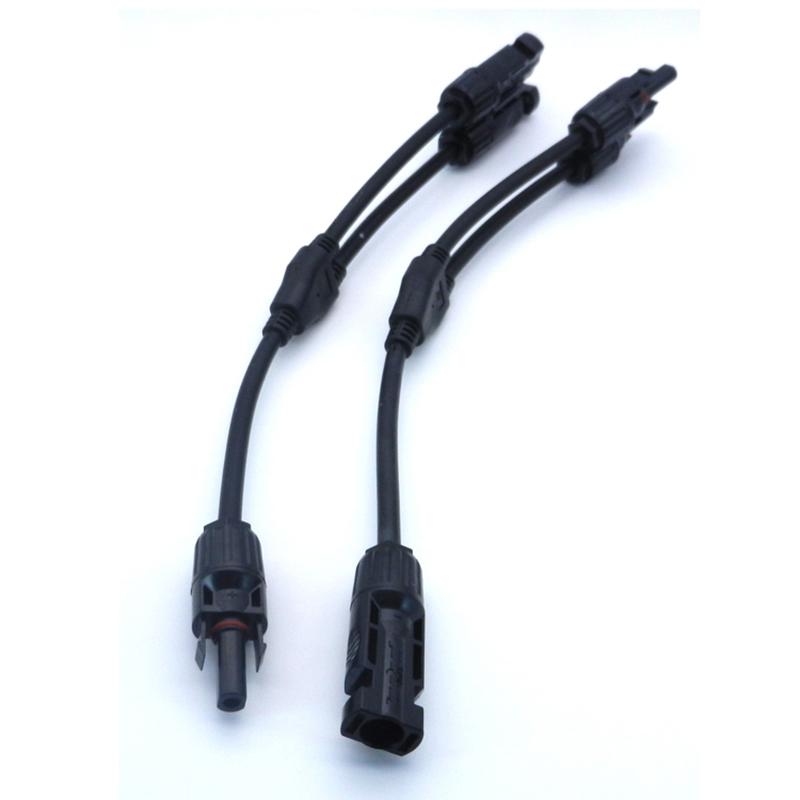

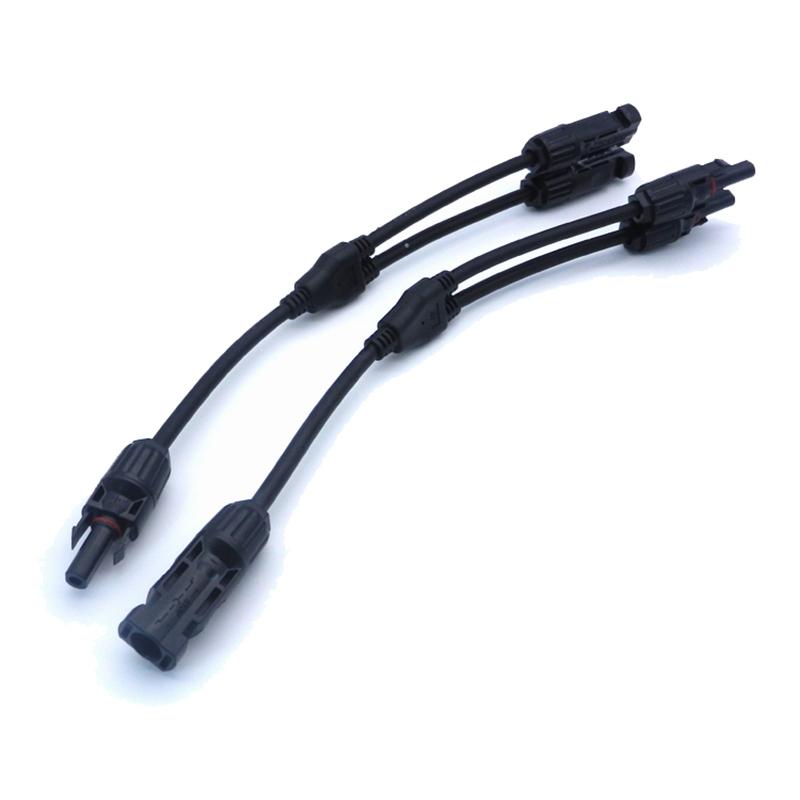

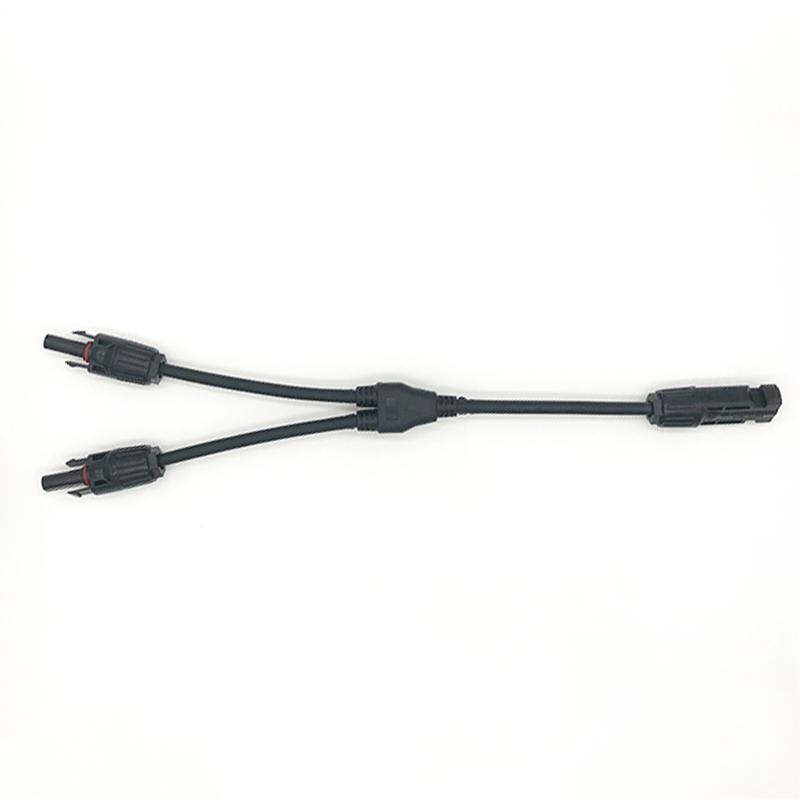

Y Branch Connector MC4 Multi Branch Connector Y MC4 Connector Solar Cable With MC4 Connector


There Are 2 To1, 3to1 And 4to1 Options For The Branched Solar Connector With Cable. The Male And Female Are Used Together, Which Can Realize Parallel Or Series-Parallel Connection Of Photovoltaic Modules.


  • Brand:

    OLINK
  • Item no.:

    PV-LTY2
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    10000
  • Shipping port:

    Xiamen
  • Lead Time:

    7

The MC4 System Consists Of A Plug And Socket Design. The Plugs And Sockets Are Inside Plastic Shells That Appear To Be The Opposite Gender - The Plug Is Inside A Cylindrical Shell That Looks Like A Female Connector But Is Referred To As Male, And The Socket Is Inside A Square Probe That Looks Male But Is Electrically Female.

  Drawings


 Technical Data For MC4 Y Connector

Product name   Y branch Connector
Rated voltage   1000V DC(IEC)
Rated currect

 17A(1.5MM2)

 22A(2.5MM2, 14AWG)

 30A(4mm2, 6mm2, 12AWG, 10Awg)

Degree of protection mated   IP67
Insulation material   PC/PPO
Locking system   Snap-in
Flame class   UL-94-V0
Contact material   Messing, Verzinnt   copper alloy, tin-plated


  FAQ

How many amps can a MC4 connector handle?

Under normal circumstances, the MC4 connector normally uses 10~12AWG wires, and the maximum rated current is about 30A.


More Y Branch Solar Connectors





PV-Y2
PV-Y3
PV-Y4
The Regular Model Is A 1000V Plug. 1500V Plug And Cable Length Can Be Customized.
*For More Information, Please Contact Us By Email Or Through Any Contact Information On The Webpage.

Related products
MC4 solar connector
1000V waterproof solar panel wire connector
MC4 PV connectors are single-contact electrical connectors commonly used for connecting solar panels. The compatible products are universal in the solar market today, equipping almost all solar panels produced since about 2011.[citation needed] Originally rated for 600 V, newer versions are rated at 1500 V, which allows longer strings to be created.
DC solar connector
1000V waterproof DC solar connector for solar Energy System
Photovoltaic connectors are single-contact electrical connectors commonly used for connecting solar panels. The compatible products are universal in the solar market today, equipping almost all solar panels produced since about 2011.[citation needed] Originally rated for 600 V, newer versions are rated at 1500 V, which allows longer strings to be created.
mc4 solar male female plug
1500V MC4 Solar Male Female plug Solar Cable IP68 PV Connector
PV CABLE Connectors Both Stamped and Formed and Machined/ Cold Formed contact types available, for easy of field installation
high quality waterproof solar connector
High quality waterproof solar PV connector for solar system
It truly realizes "plug and play". The insulating material uses hard plastic (PC/PPO), which is easier to assemble and install on site in design.
MC4 Branch Connector
MC4 Branch Connector 2 To 1 Solar Panel Connector cable
MC4 Branch Connectors are 2 to 1 connectors that allow for a safe and simple parallel or serial-parallel connection of PV modules. Available in either 2 female to 1 male, or 2 male to 1 female, and pluggable with single-pole MC4 connectors
MC4 2 to 1 Connectors
Solar MC4 Connector T-Branch 2 to 1 Splitter MMF + FFM Pair
One pair of MC4  T Connectors for solar panels. Includes both MMF and FFFM. Used for parallel connection between panels while maintaining the voltage of your panel configuration
MC4 3 To 1 Connectors
MC4 Solar Connector T-Branch 3 To 1 Splitter MMMF + FFFM Pair
One Pair Of MC4 3 To 1 T-Branch Connectors For Solar Panels. Includes Both MMMF And FFFM. Used For Parallel Connection Between Panels And Maintain The Voltage Of Your Panel Configuration.
solar panel cables and connectors
Waterproof Solar MC 4 Connector for PV Energy System
solar pv connector are single-contact electrical connectors commonly used for connecting solar panels. The compatible products are universal in the solar market today, equipping almost all solar panels produced since about 2011.[citation needed] Originally rated for 600 V, newer versions are rated at 1500 V, which allows longer strings to be created.
