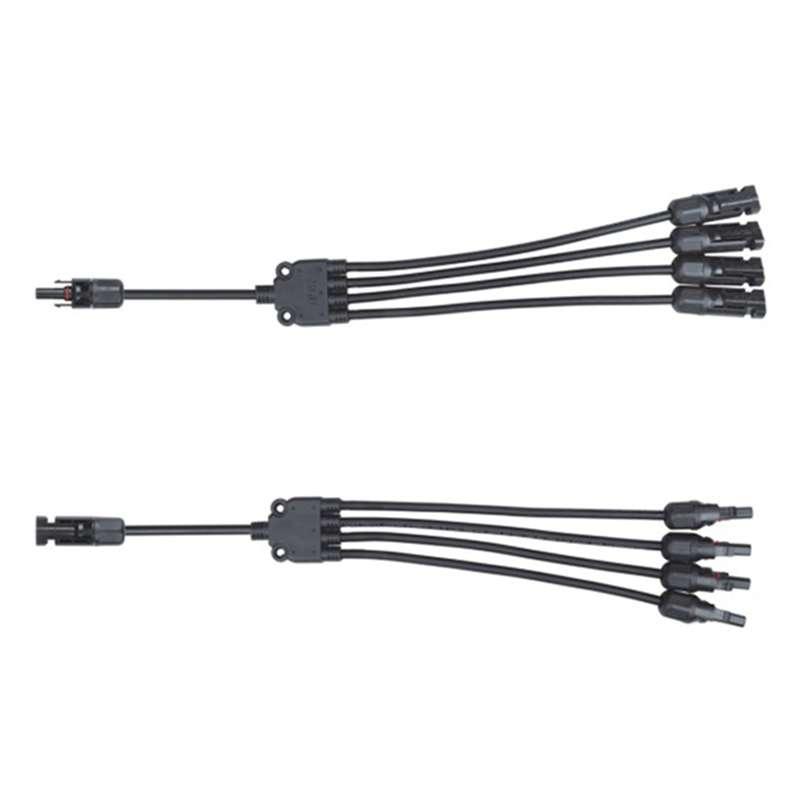

4 to 1 quick wire connector solar Y branch

Solar Y branch connectors Y4, 4 to 1, it usually used in various solar power generation equipment.




  • Brand:

    OLINK
  • Item no.:

    PV-Y4
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

4 to 1 quick wire connector solar Y branch

  Description Of Solar Y Branch Connector

Solar photovoltaic connector Y type, there are Y2, Y3, Y4. This Y-type four-way splitter with wire is compatible with MC4 connectors. It is a special splitter for solar photovoltaic modules in parallel. It is a good choice for distributed systems.

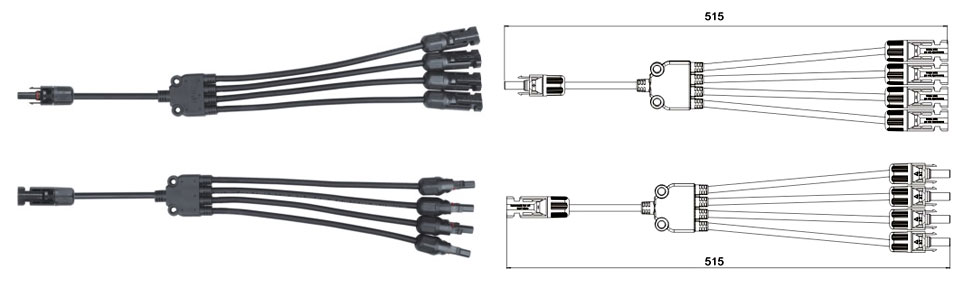

  Drawings Of Y Branch Connector

  Technical Data For Solar Panel Y Connector

Pin Dimensions:
 φ4 mm Contact resistance:
 0.5 mΩ
Rated Voltage:   1000 V Rated current:   30 A
Degree of protection, mated:   IP67 Unmated:   IP2X
Temperature range:   -40℃...+90℃ Upper limiting temperature:  + 105℃
Insulation material:   PC/PA
Contact material:   Messing, verzinnt  Copper, tin plated
Locking system:
 Snap-in Flame class:
 UL-94-V0


  Feature Of Solar Wire Connector

  • It has the characteristics of rapid and reliable, waterproof and dustproof, quick and convenient to use, etc.

  • The shell has a strong Anti-aging and anti-ultraviolet ability.

  • The cable connection is connected by crimping and tightening.

  • The male and female connectors are fixed with a stable automatic locking mechanism, which can be opened and closed freely.
