 /Network Cable RJ45 IP65 Rated Made of and Nylon Material

RJ45 waterproof connector
RJ45 waterproof connector RJ45 waterproof connector RJ45 waterproof connector

Network Cable RJ45 IP65 Rated Made of and Nylon Material

The common connection mode of the RJ45 waterproof connector is composed of a male plug and a female plug, which can work by docking with each other.


  • Brand:

    OLINK

  • Item no.:

    M16-RJ45

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Black

  • Goods stock:

    50000

  • Shipping port:

    Xiamen, Ningbo

  • Lead Time:

    7
Inquiry now

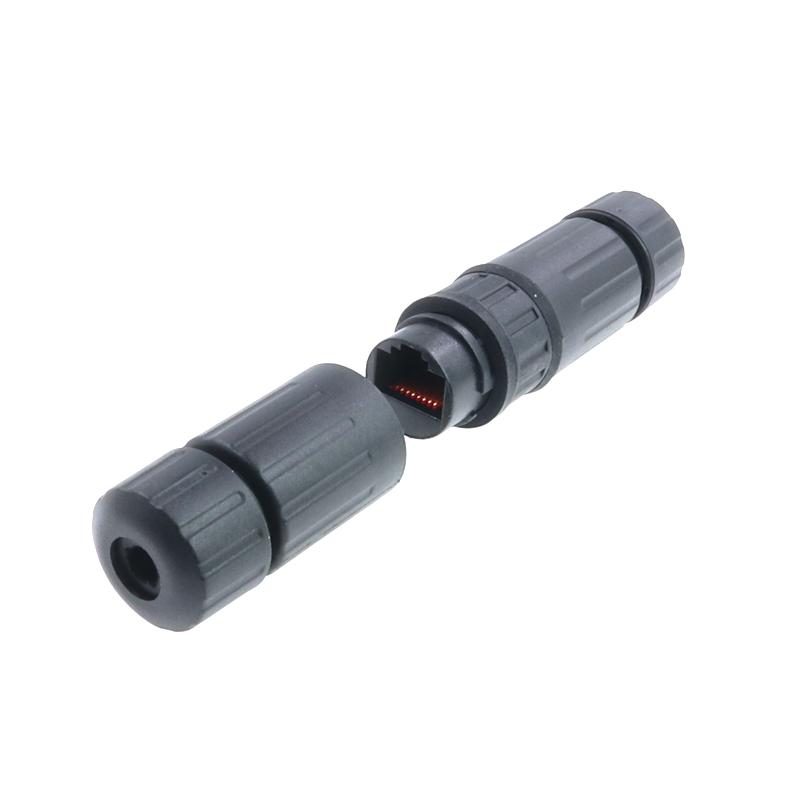

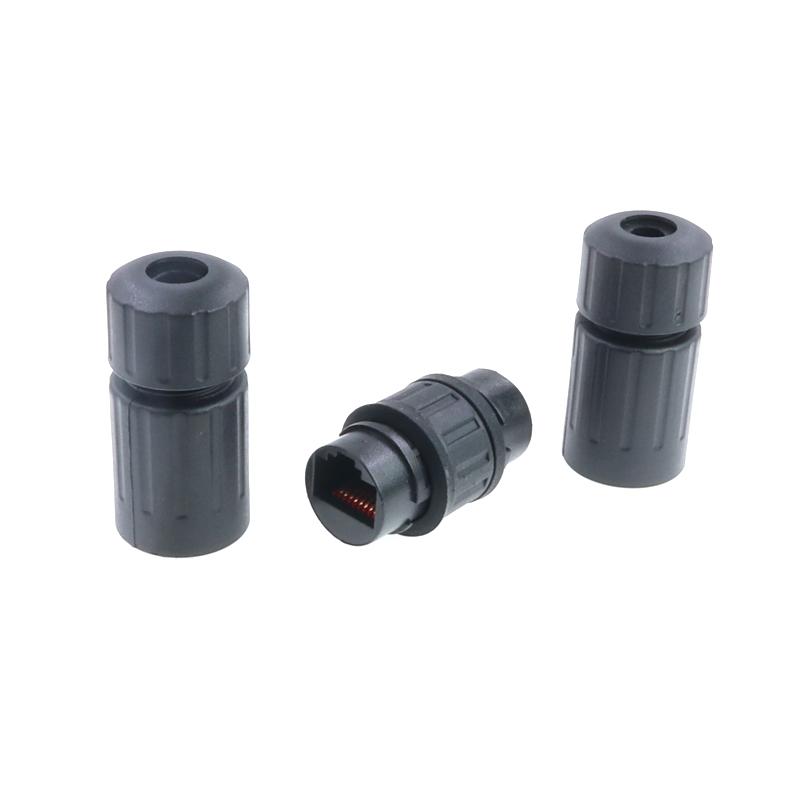

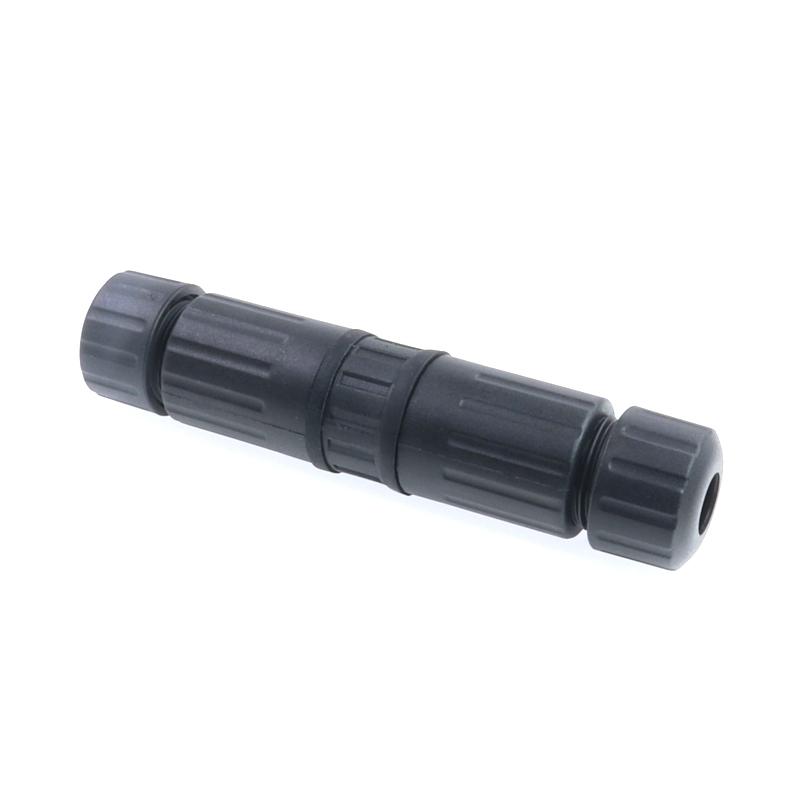

M16-RJ45 network waterproof joint connector

Feature of Ip67 rj45 connector

  • The RJ45 waterproof connector is a standard 8-pin RJ45 interface
  • The plug does not contain the crystal head
  • Field aassemblt, quick lock
  • Screw connection, fast plug and unplug, easy to use


Specification of Rj45 quick connector

Product name:

 RJ45 connectors

Product model:
  M16-RJ45
Rated voltage:
  36V Rated current:
  0.2A
Connecting mode:   Screw connection Cable OD.:   max. 7 mm
Wire size:   24 AWG Protection level:   IP67
Material:   RJ45 female socket: nickel plated.

 Contact plastic: Nylon V-0

 Waterproof rubber ring: silicone.

 Glue pouring: epoxy resin

Working temperature:   -40℃ to 105℃
Mechanical life:
  500 mating cycles Insulation resistance:
  ≥10MΩ  DC 500V



Wiring style

  • The common connection mode of the RJ45 waterproof connector is composed of a male plug and a female plug, which can work by docking with each other.
  • There is no need for welding operations or any installation tools.  Just insert the standard crystal head directly, which can achieve rapid installation and use.
  • RJ45 notch is used as a standard part, and common crystal heads on the market can be matched and used. Conventional crystal head crimping pliers are used uniformly.

Application of RJ45 bulkhead connector

It is widely used in communication fields, outdoor display screens, home network ports, signal transmission and reception devices, 4G network fields, etc


*For more information, please contact us by email or through any contact information on the webpage.
