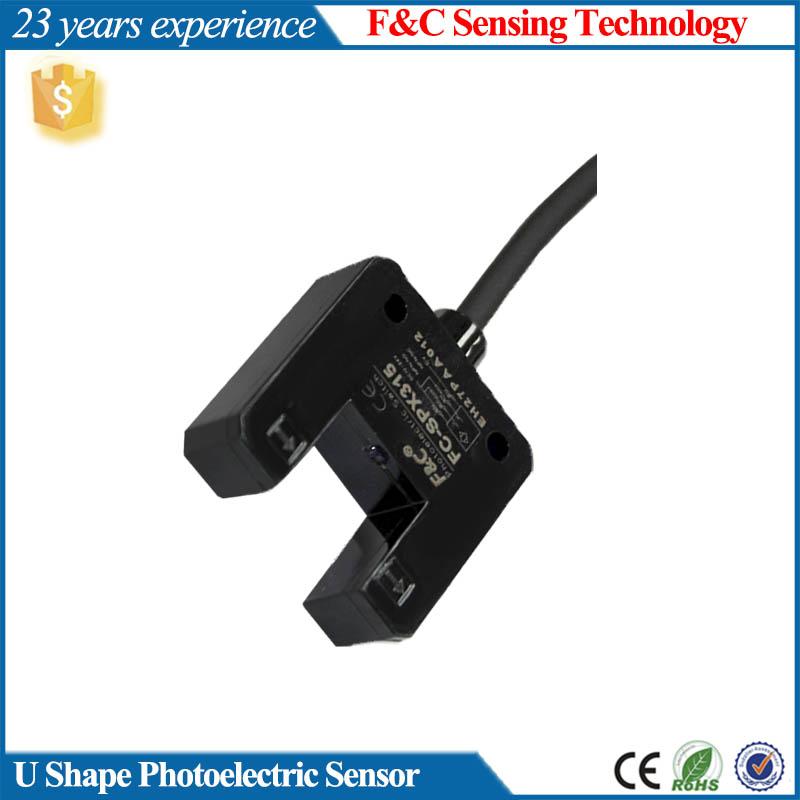

FC-SPX315 Infrared light photo switch 15mm npn for machine with CE

U-Shaped optical sensor, 15mm slot, 4-wire, NPN/PNP, 12~24VDC, 5vDC switching output sensor, EE-SPX303N replaced


  • Brand:

    F&C
  • Item no.:

    FC-SPX315/P/15D
  • Payment:

    Wire transer, West Union, Paypal
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    2000
  • Shipping port:

    Xiamen
  • Lead Time:

    3days


Overview
Quick Details
Model Number:
FC-SPX315
Place of Origin:
Hunan,China
Brand Name:
F&C
Usage:
Position Sensor
Output:
Switching Transducer, NPN.NO
Protection Degree:
IP65
Voltage::
5-24VDC
Detection distance::
15MM
Ligh source::
RED LED 630nm
Certificate::
CE,RoHS
Theory::
Inductance Sensor
Working Temperature::
-10~50C
Shell Material:
PBT
Theory:
Optical sensor

F&C Infrared light photo switch 15mm npn for machine with CE

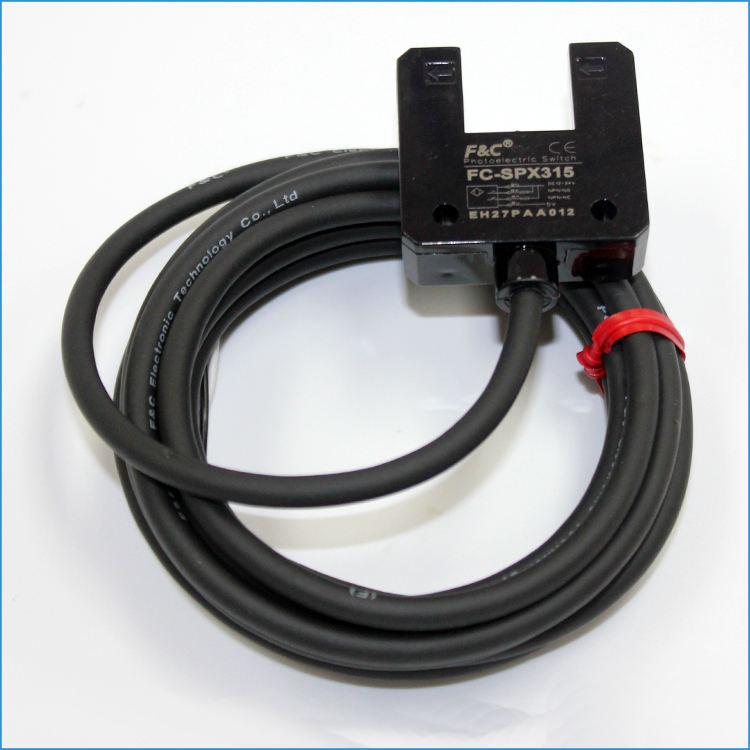

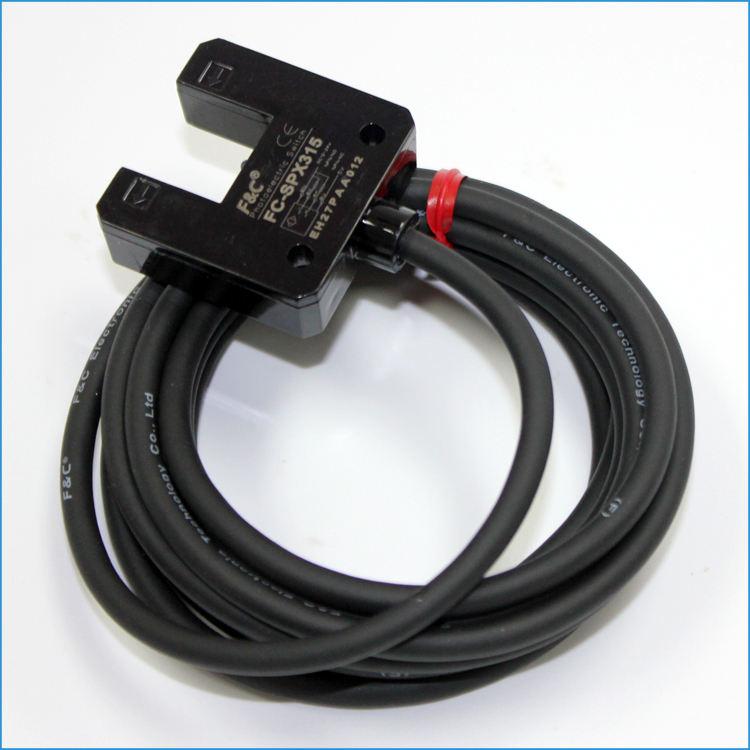

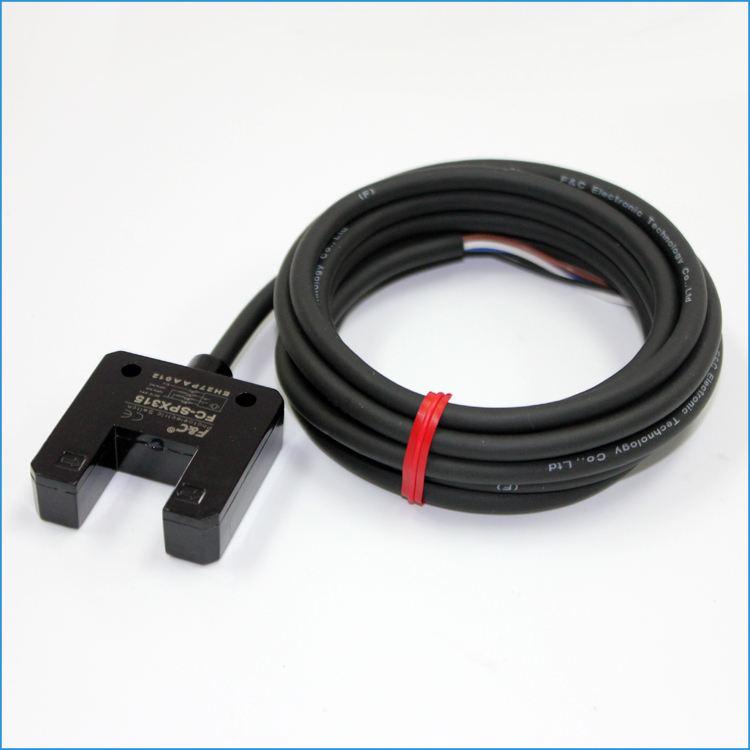

Product Picture


Infrared light photo switch 15mm npn for machine with CEInfrared light photo switch 15mm npn for machine with CEInfrared light photo switch 15mm npn for machine with CE




Product Description

Model

FC-SPX315
FC-SPX315P

FC-SPX315/15D
FC-SPX315P/15D

Type

Straight outlet

Connector

Detection Distance

15mm

Light Source

940nm infrared modulated light

Operating Voltage

DC5-24V

Current Consumption

15mA Max

Load Current

100mA Max at DC 24V

Output Type

N=NPN.NO.NCP=PNP.NO.NC

Protection Circuit

Power anti-received protection and short
circuit protection

Response Time

0.5ms Max

Insolation Resistance

20MΩmin.(DC500V)

Dielectric Strength

AC1000V 60Hz for 60sec

Operating Temperature

-10℃-+50℃

Storage Temperarure

-20°C~+60°C(No freezing allowed )

Operating Humidity

35%-85% Relative humidity

Storage Humidity

35%-95% Relative humidity

Waterproof Degree

IP64

Material

ABS

Wiring Method

φ2.8×2M/4-wires

Weight

Approx.18.5g

  •   Advantages:



    1. Easy to install with mall volume, almost a half than others.

    2. Four wires outputting, every sensor come with function of NO and NC.

    3. Many other mini-type for choice.

    4. LED indicator to shows working situation.

    5. Stable working without influence by other light.

    6. Every single products in individual package.

    7. Standard 2m cable length, can customize to other cable length.

     Definition:

    Photoelectric sensors are largely used in industrial manufacturing to judge the absence or presence of an object by using a light transmitter, often infrared and a photoelectric receiver.Compared to inductive proximity sensors,photoelectric sensors have a much greater sensing range. And usually there are three types: opposed, retro-reflective and proximity-sensing. the model FC-SPX series are all through beam photoelectric sensors.



     Attentions:

    1. The sensor,10mm U-shaped NPN NO NC infrared photoelectric sensor, designed with normally open and normal close circuit, and you can get both function in one model.

    2. All the sensor are divided into two type according the Electrical design, NPN and PNP. it will not work if choose wrong type.

    3  All photoelectric switches can be made to cable type, M8 connector or M12 connector type and third connector with 150mm cable type. you can choose as you demand.





  Infrared light photo switch 15mm npn for machine with CEInfrared light photo switch 15mm npn for machine with CE
