FC-SPV203 Mini Groove photoelectric sensor

5mm optical fork sensor 24V dc 4wires photoelectric sensor switch with ROHS


  • Brand:

    F&C
  • Item no.:

    FC-SPV203/15D
  • Payment:

    Wire transer, West Union, Paypal
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    2000
  • Shipping port:

    Xiamen
  • Lead Time:

    3days

                                                             FC-SPV203 Mini Groove photoelectric sensor

Quick Details
Model Number:
FC-SPX203
Type:
OPTICAL SWITCH
Place of Origin:
Hunan, China
Brand Name:
F&C
Output:
Switching Transducer
Scanning distance:
5mm
Entry cable:
2.8*2m/4wires
Material:
ABS


5mm optical fork sensor 24V dc 4wires photoelectric sensor switch with ROHS

dc photoelectric sensor

Product Description

Model

FC-SPX203
Output Method NPN NO+NC
Standard Detection Object Size diameter 1mm opaque objects
Repeat accuracy 0.02mm
Detection Distance 5mm
Light Source 940 nm Infrared modulated light
Operating Voltage 12-24 VDC
Response Time 0.3ms Max.
Current Consumption 15mA Max.
Load current 100mA Max at 24 VDC
Insulation Resistance 20M Ohm Min. at 500 VDC
Dielectric strength 60 seconds at 1000VAC 60HZ
Protection Degree IP64
Operating Temperature -10℃-50℃(No Icing)
Reverse Polarity Protection Yes
Short Circuit Protection Yes
Material ABS
Wire Method Prewired diameter 3mm*2M/- 4wires

5mm optical fork sensor 24V dc 4wires photoelectric sensor switch with ROHS

5mm optical fork sensor 24V dc 4wires photoelectric sensor switch with ROHS

product drawing

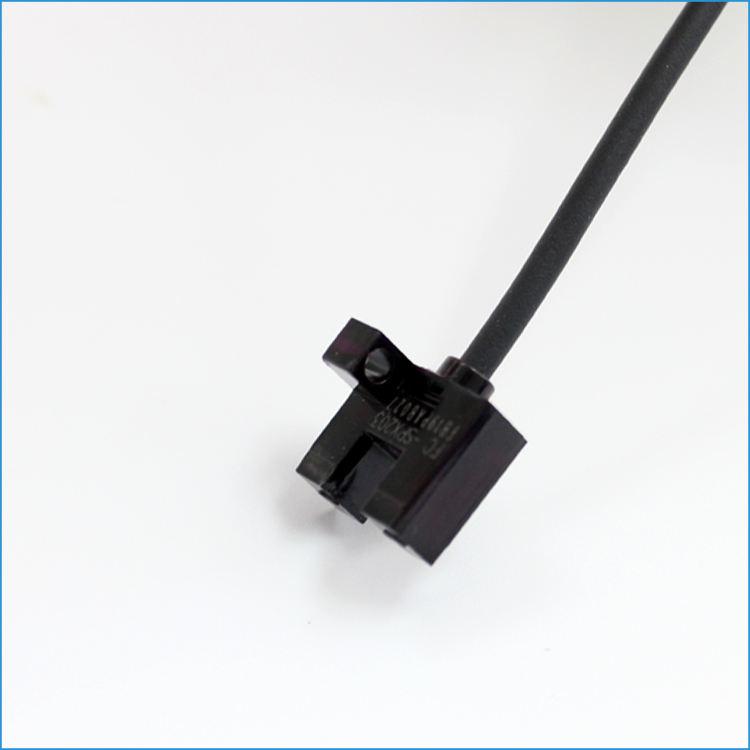

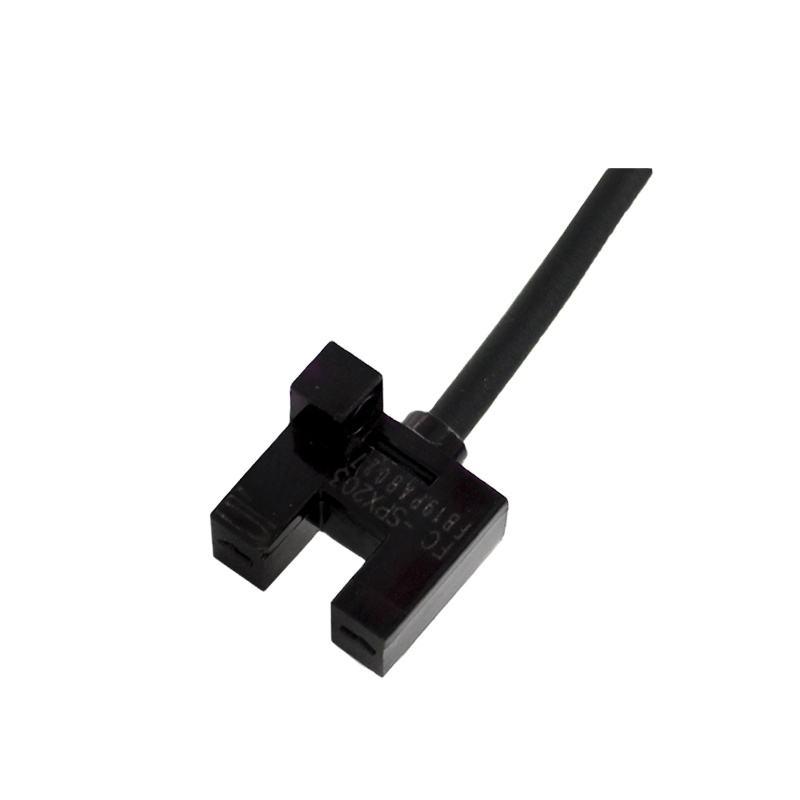

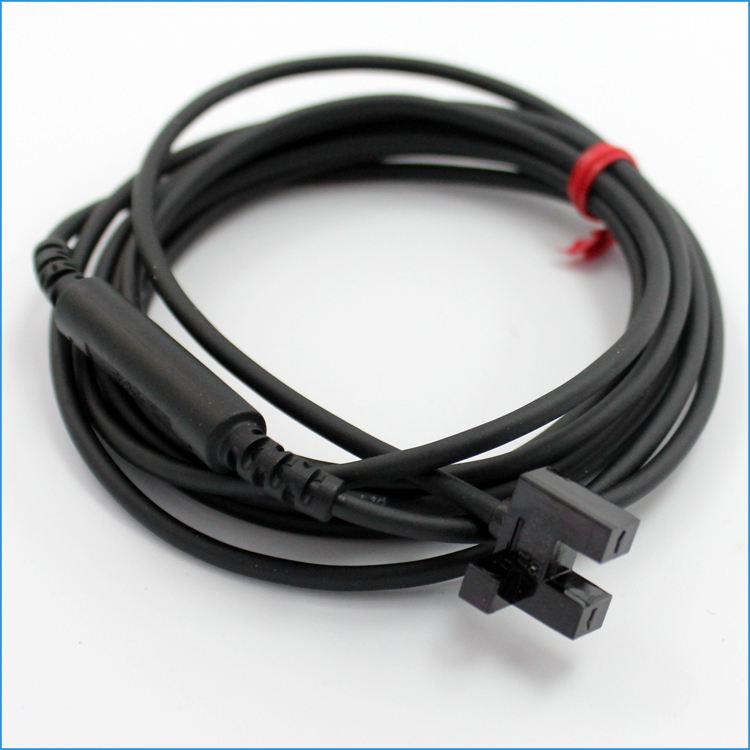

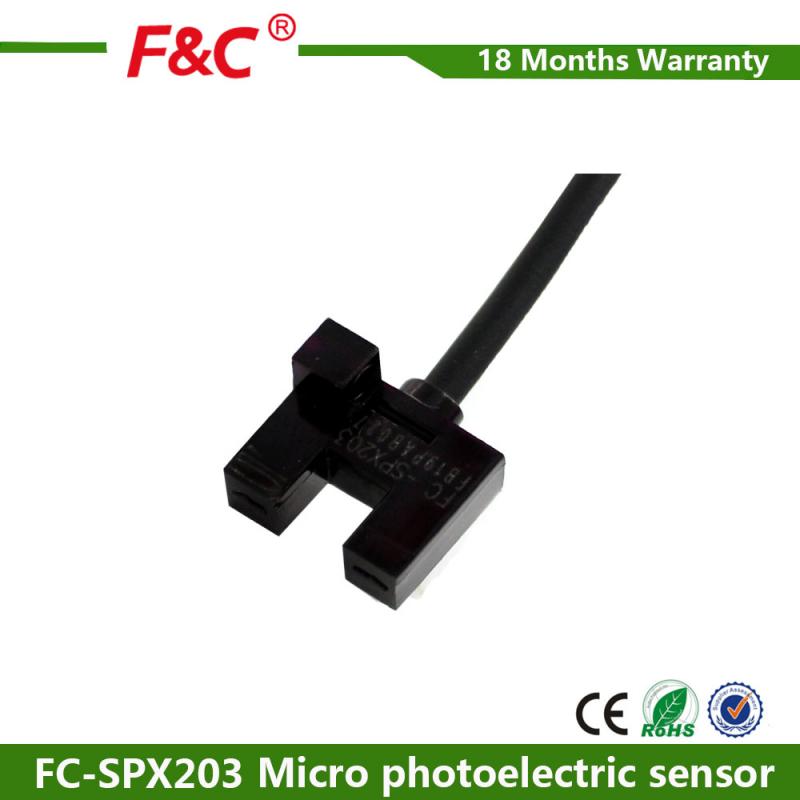

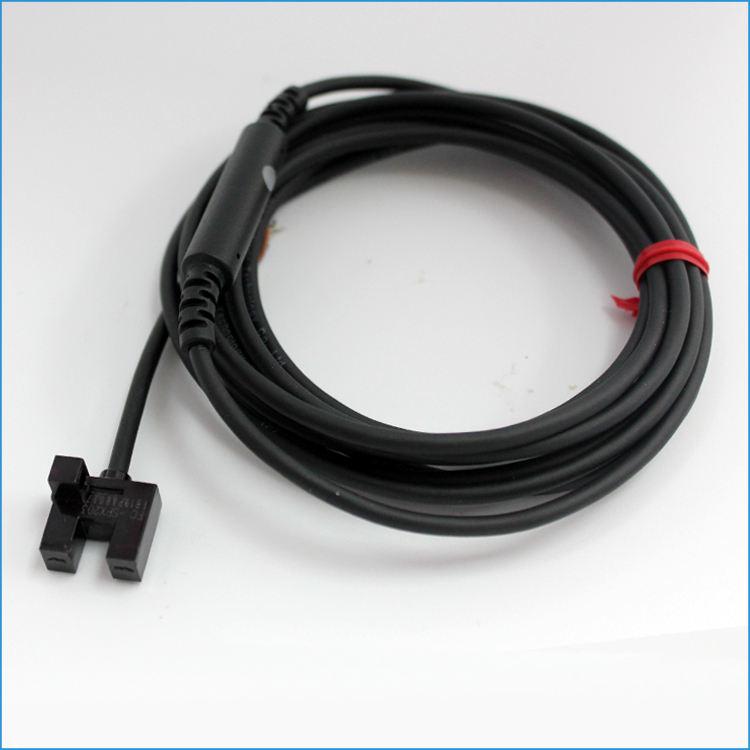

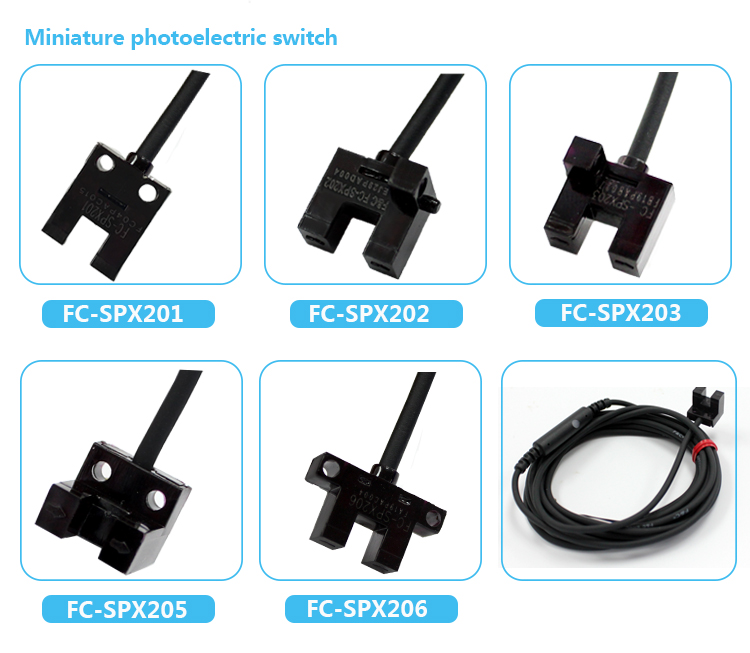

Photosfor optical photoelectric switch:
5mm optical fork sensor 24V dc 4wires photoelectric sensor switch with ROHS5mm optical fork sensor 24V dc 4wires photoelectric sensor switch with ROHS

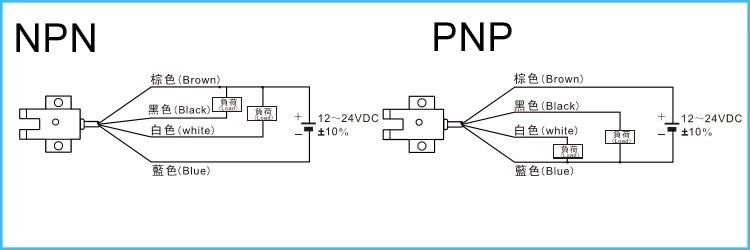

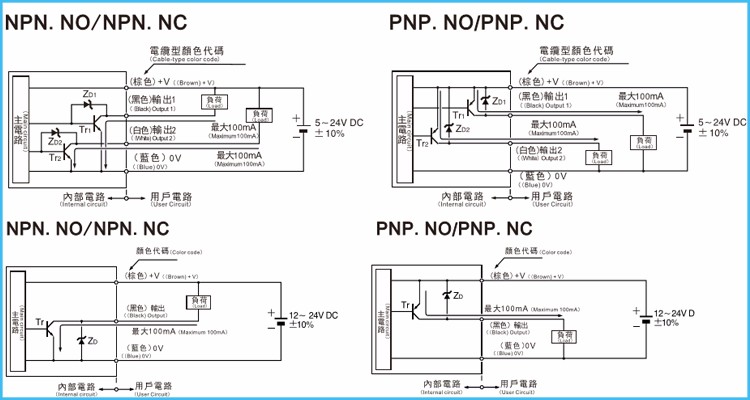

Dimesion and wiring for optical sensor switch:
5mm optical fork sensor 24V dc 4wires photoelectric sensor switch with ROHS5mm optical fork sensor 24V dc 4wires photoelectric sensor switch with ROHS5mm optical fork sensor 24V dc 4wires photoelectric sensor switch with ROHS
