Brand:
F&CItem no.:
FC-SPV201/15DPayment:
Wire transer, West Union, PaypalProduct origin:
ChinaColor:
BlackShipping port:
XiamenLead Time:
7 days
Feature

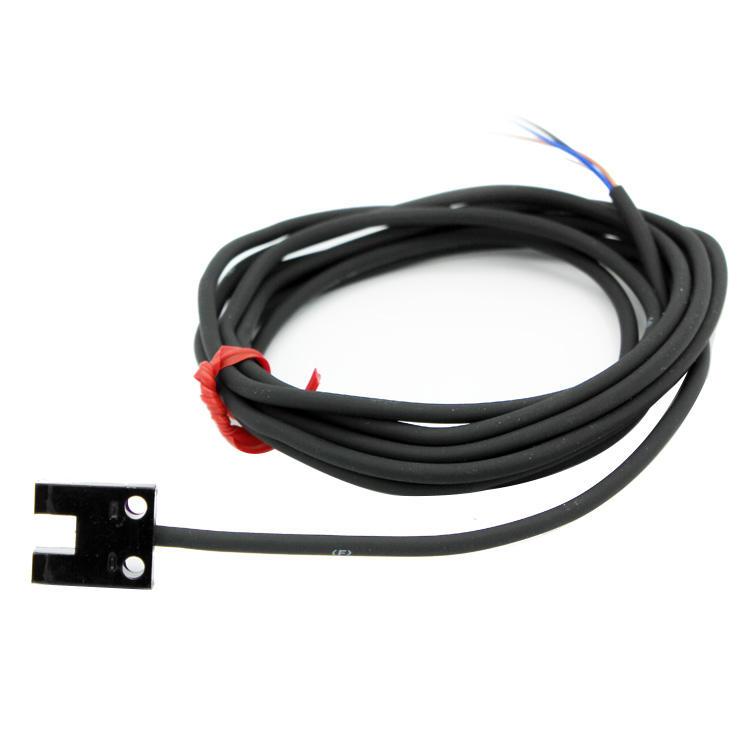

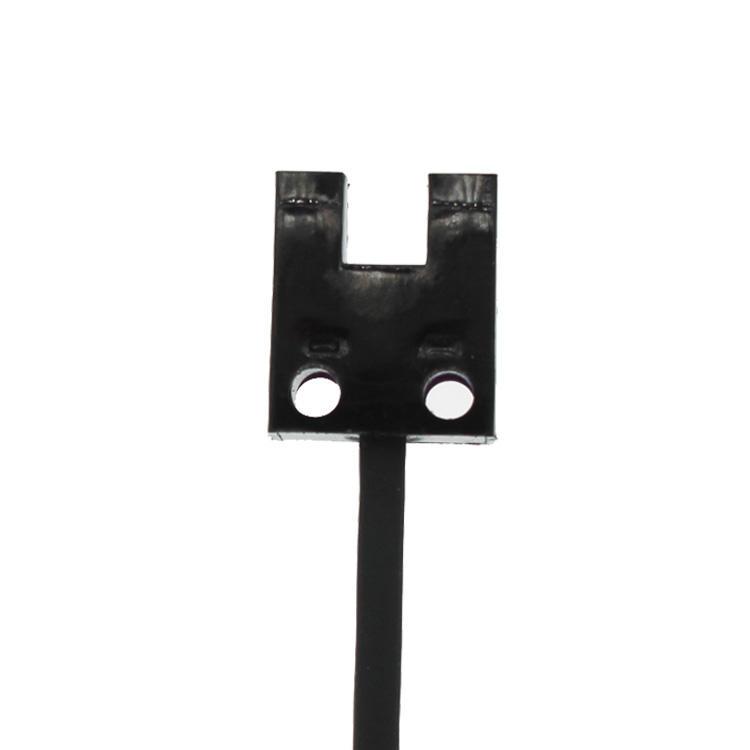

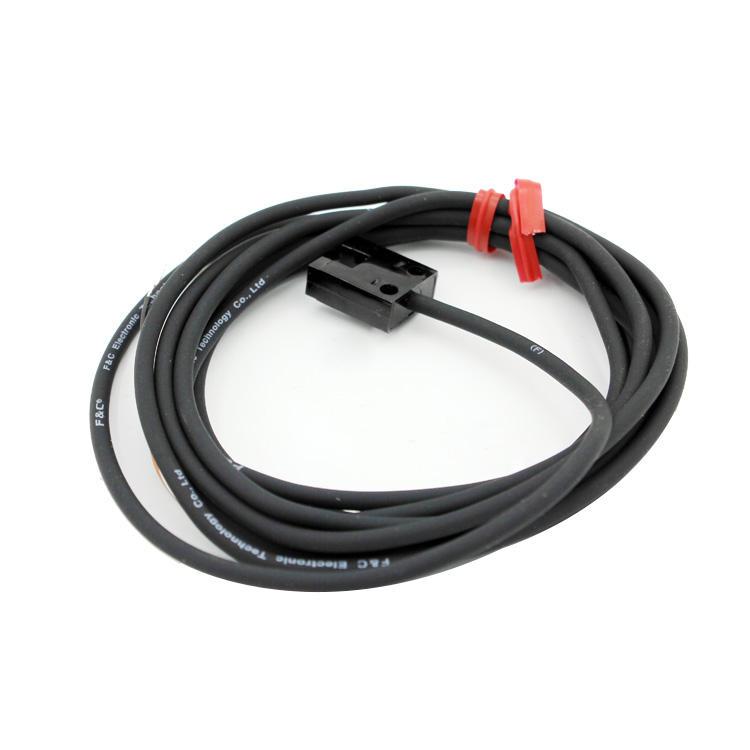

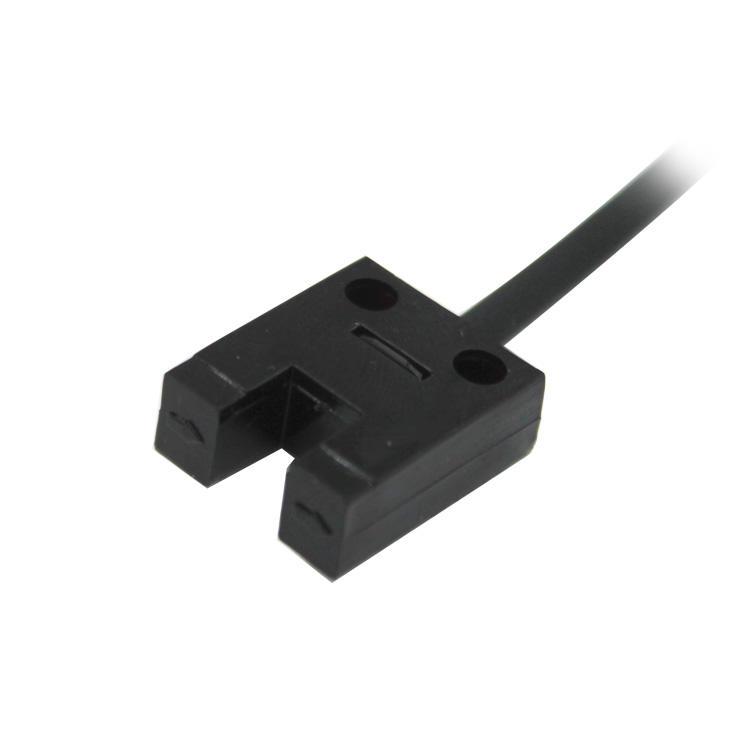

1.Mini U Type photoelectric sensor, only 1/2 volume of ordinary photoelectric sensor
2.Pre-wired 4 wires, so each sensor has NO and NC function.
3.4 kind of shape for 5mm width slot photoelectric sensor
4. 5-24VDC Operation Voltage
We have 5 different shape Mini fork 5mm photoelectric sensors.
Product Specification
| Model | FC-SPX201 |
| Output Method | NPN NO+NC |
| Standard Detection Object | diameter 1mm opaque objects |
| Repeat accuracy | 0.02mm |
| Detection Distance | 5mm |
| Light Source | 940 nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.3ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP64 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | Prewired diameter 3mm*2M/- 4wires |
\
