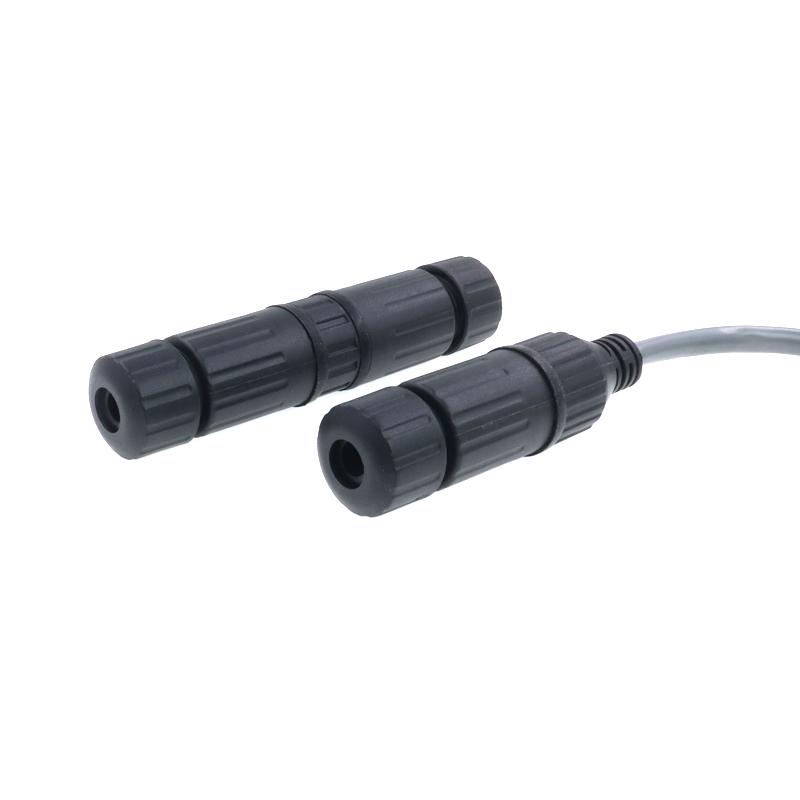

Ethernet connector M16 M19 outdoor ip67 waterproof rj45 connector

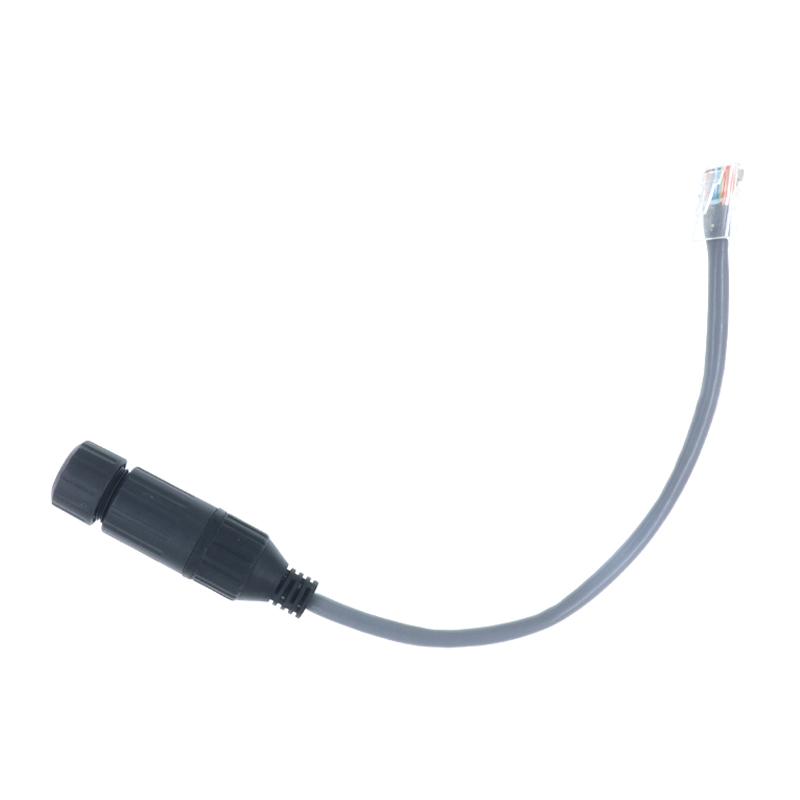

M16RJ45 connector with cable, cable length can be customized, default length is 20cm.
  • Brand:

    OLINK
  • Item no.:

    M16-RJ45-ww
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

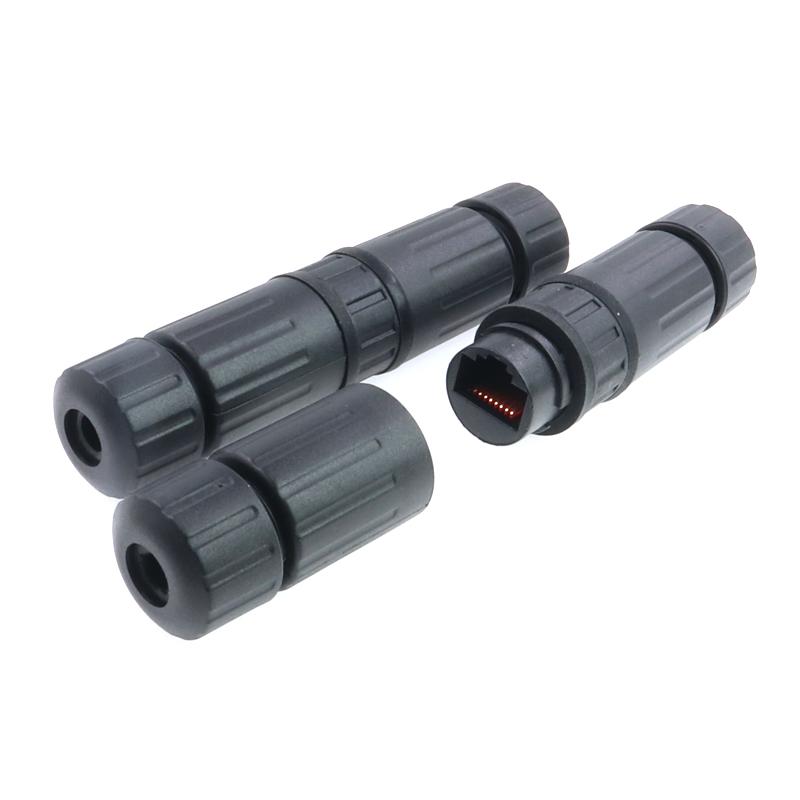

M16 IP65 With wire network cable RJ45 waterproof connector


Feature of Rj45 waterproof connector:


  • The common connection mode of the RJ45 waterproof connector is composed of a male plug and a female plug, which can work by docking with each other.
  • There is no need for welding operations or any installation tools.  Just insert the standard crystal head directly, which can achieve rapid installation and use.
  • RJ45 notch is used as a standard part, and common crystal heads on the market can be matched and used.  Conventional crystal head crimping pliers are used uniformly.


Specification of M16 Rj45 cable connector


Product name:

 RJ45 connectors with cable

Product model:
 M16-RJ45-133201
Wire range:   24 AWG Cable OD.:   max. 7 mm
Contact number:   8 pin Rated current:   0.2A
Glue pouring:   Epoxy resin Mechanical life:   500 mating cucles
Waterproof rubber ring:   Silicone Protection level:   IP65
Shell material:   Nylon V-0 Working temperature:   -40℃ to 105℃
Contact material:   Nickel plated Insulation resistance:
 ≥10mΩ DC 500V
Connection method:   Bayonet connect Wire lenght:   20cm(default) or customized


Dimensions



Application of RJ45 panel mount waterproof connector


It is widely used in communication fields, outdoor display screens, home network ports, signal transmission and reception devices, 4G network fields, etc

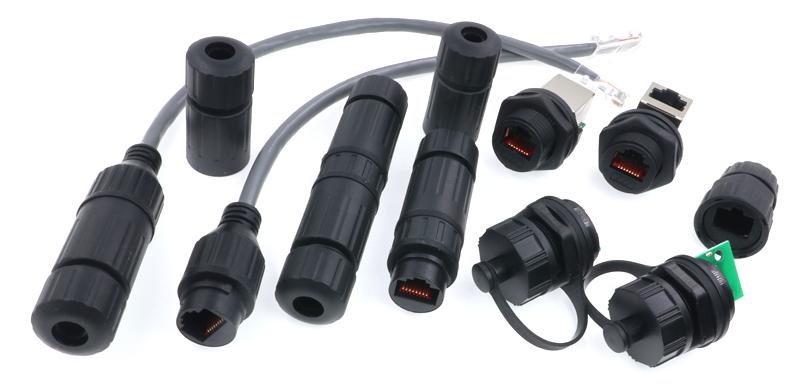

More type RJ45 connectors




*For more information, please contact us by email or through any contact information on the webpage.


Why choose us?


  • Exquisite and compact design, saving a lot of space
  • Compatible with USB2.0/USB3.0 connector
  • With plug cable, the waterproof grade reaches IP67
  • Unique structure design, convenient and quick operation
  • Made of nylon PA66, flame retardant and high temperature resistant
  • Cable length can be customized
