PV Solar Connector

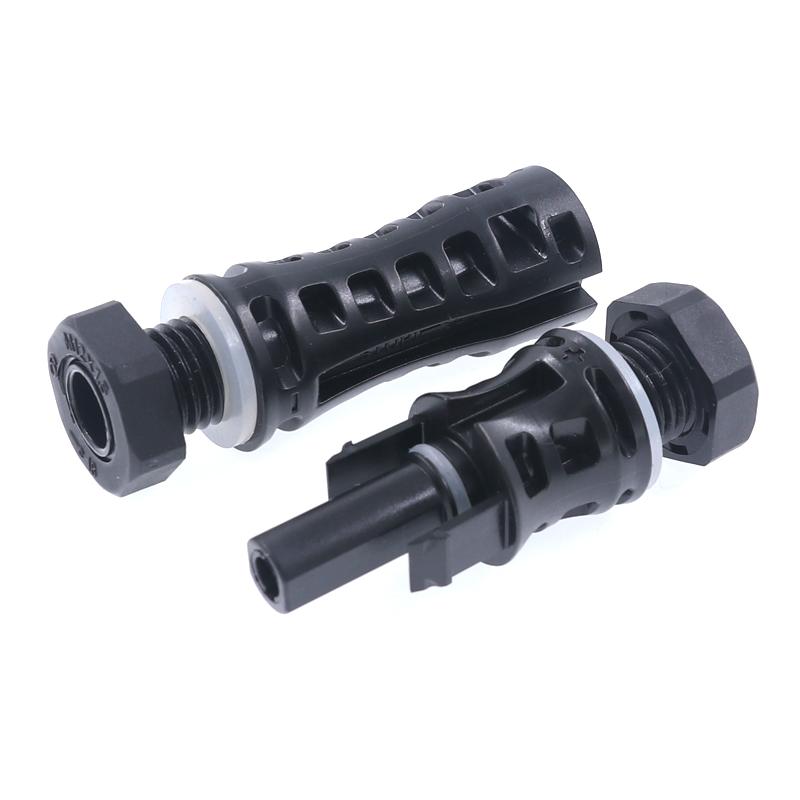

 /MC4 Bulkhead Connector Solar Bulkhead Connector Solar Panel DC Connector MC4 Panel Connector

MC4 Plug Connector Chinese factory
MC4 Plug Connector Chinese factory MC4 Plug Connector Chinese factory MC4 Plug Connector Chinese factory MC4 Plug Connector Chinese factory MC4 Plug Connector Chinese factory

MC4 Bulkhead Connector Solar Bulkhead Connector Solar Panel DC Connector MC4 Panel Connector

One Of The Commonly Used Connectors In Photovoltaic Systems, It Is Mainly Used For Quick-Plug Wiring Inside And Outside The Photovoltaic Power Distribution Box, And Can Work Under 1.5KV Voltage

  • Brand:

    OLINK

  • Item no.:

    PV-N01

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Black

  • Goods stock:

    50000

  • Shipping port:

    Xiamen, Ningbo

  • Lead Time:

    5
Inquiry now

One Of The Commonly Used Connectors In Photovoltaic Systems, It Is Mainly Used For Quick-Plug Wiring Inside And Outside The Photovoltaic Power Distribution Box, And Can Work Under 1.5KV Voltage


  Drawings Of Solar Panel Connector Plugs

  Technical Data For Photovoltaic Connector

Connector System:
  φ4mm Temperature range:
  -40℃...+90℃
Rated Voltage:   1500 V DC Rated current:   30 A / 50 A (1.5 mm²~6 mm²)
Degree of protection, mated:   IP67 Unmated:   IP2X
Contact resistance of plug Connectors:   0.5 mΩ Contact material:   Snap-in
Locking system:  Messing, verzinnt  Copper Alloy, tin plated
 Insulation material:    PC/PV
Flame class:   UL-94-V0 Salt mist spray test, degree of severity 5:   IEC 60068-2-52


  Feature of PV Solar Connector

  • It has the characteristics of fast and reliable connection, waterproof and dustproof, and easy to use.

  • The shell has strong anti-aging and ultraviolet resistance.

  • The cable connection is connected by compression and tightening.

  • The male and female heads are fixed with a stable self-locking mechanism.

  • Open and close freely.


 More Photovoltaic Connectors









PV-M01(1000V)
PV-N01(1500V)
PV-M02(1000V)
PV-M04-2(1000V)
PV-N04(1500V)
*For More Information, Please Contact Us By Email Or Through Any Contact Information On The Webpage.
