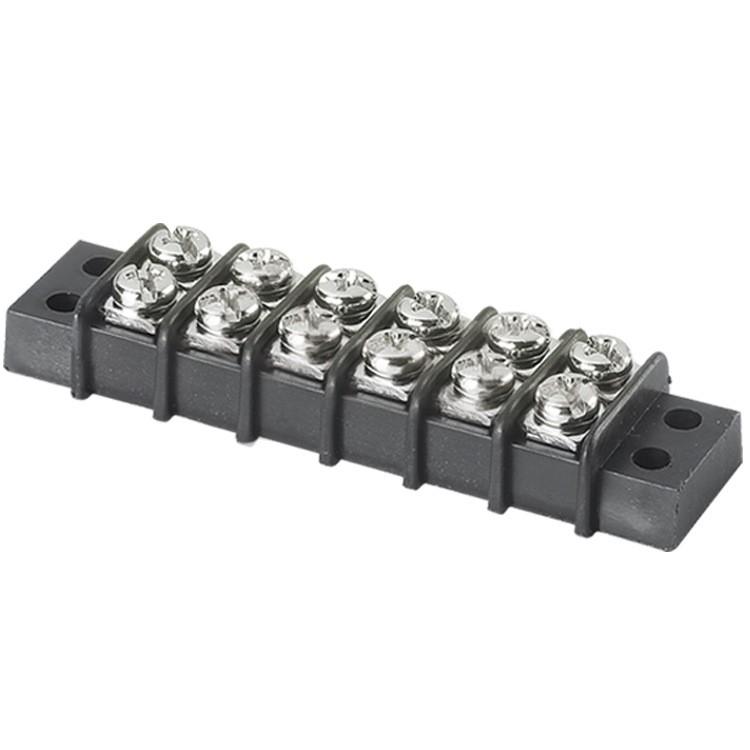

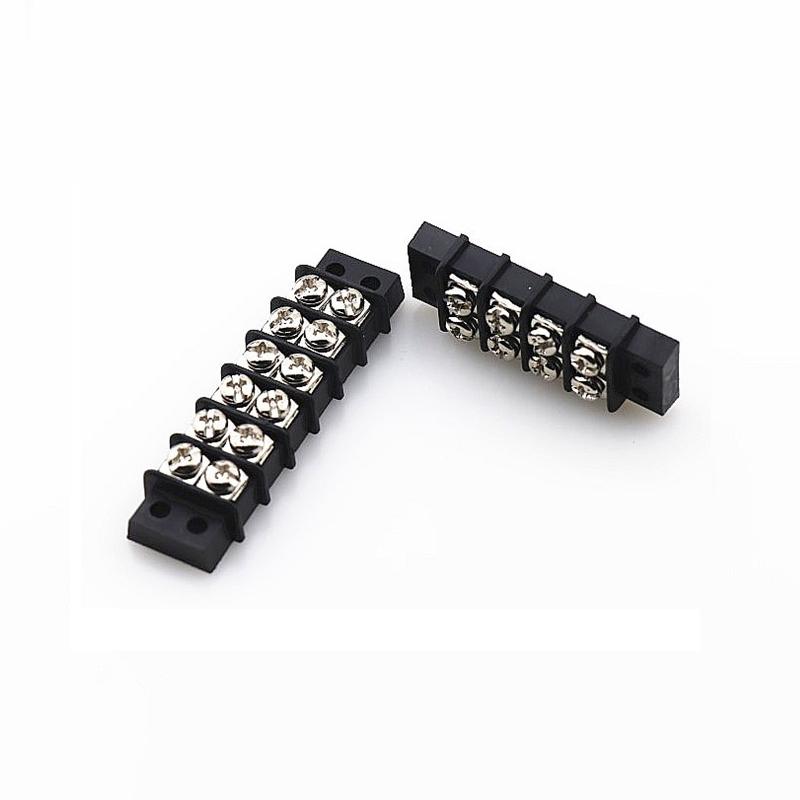

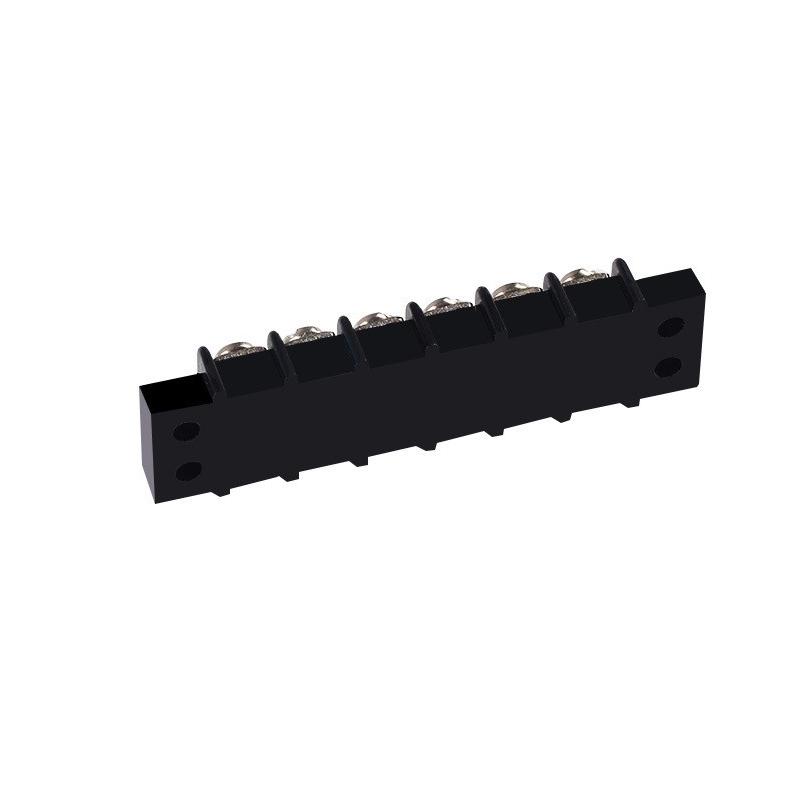

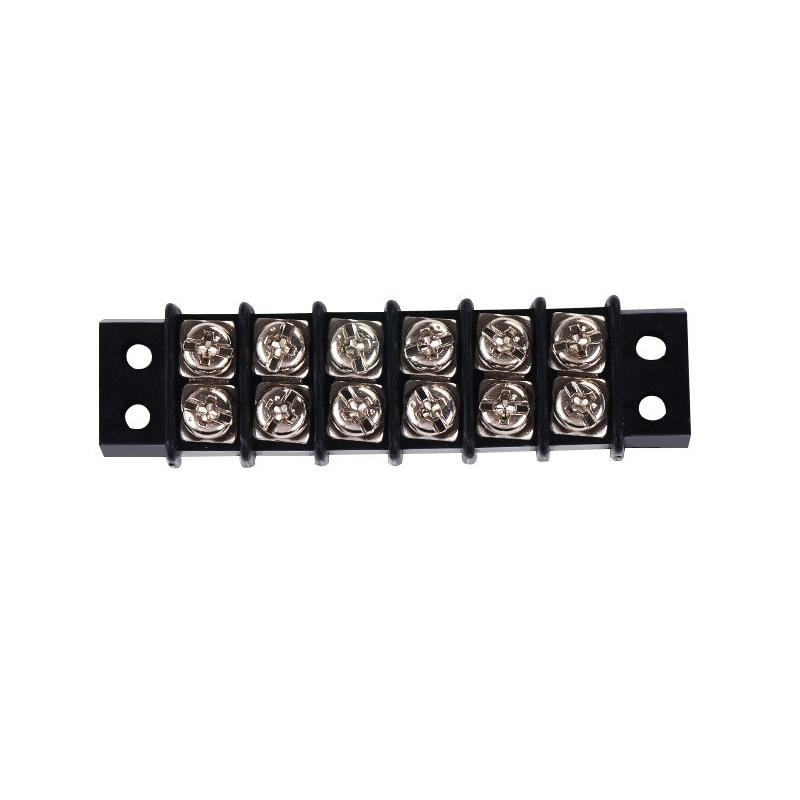

High Quality 150V 30a 2 Circuit Black Double Row Barrier Terminal Block

Barrier terminal block has different pitch and specifications, which can meet with customer demand.

Brand:
OLINK
Item no.:
49-9.5/69-11.0/89-14
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Min order:
1000
Shipping port:
Xiamen, Ningbo
Lead Time:
15

Inquiry now

product introduction

High Quality 150V 30a 2 Circuit Black Double Row Barrier Terminal Block

Specification of Terminal block

Product name:	Barrier terminal block	Model:	49-9.5/69-11.0/89-14.0
Certification:	CE	Rated voltage:	450V/750V
Rated current:	20A/25A/30A	Wire range:	22-12 AWG (4mm²)
Withstand voltage:	2500V/1 Min; 3000v/1Min	Temperature range:	-40℃ to +105℃
Torque:	1.0N.m	Pitch:	9.5mm/11.0mm/14.0mm
Poles:	2-24P	Housing:	PBT UL94V-0
Contact:	Ferroalloy, Ni plated	Screw:	M4

Drawing of Dual row barrier terminal block

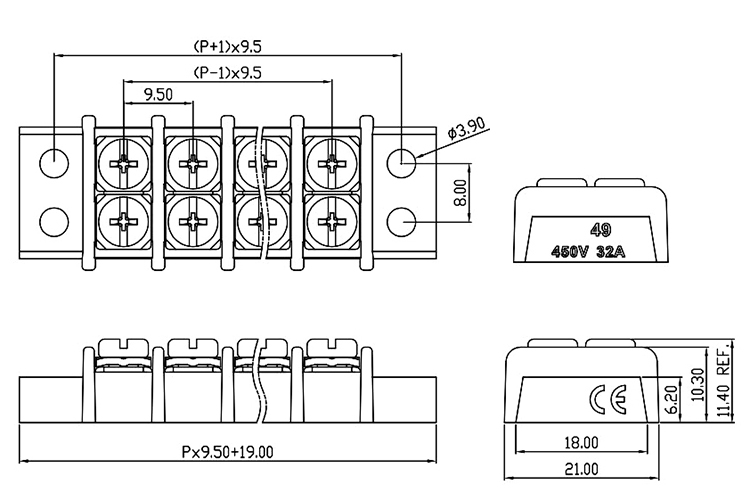

49-9.5

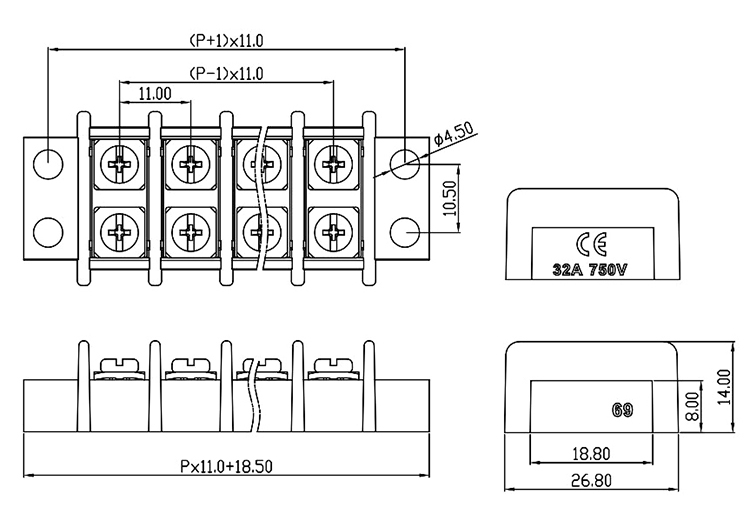

69-11.0

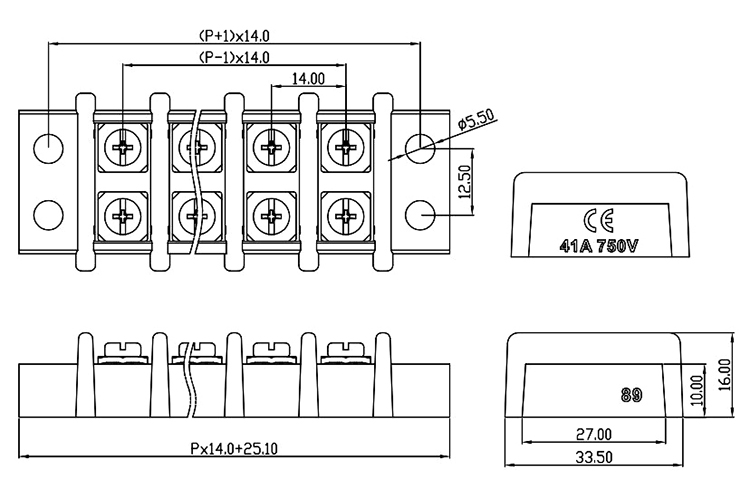

89-14.0

Feature of Terminal block 20a

Good material: The shell has a long service life, is resistant to aging, and is resistant to high pressure
Screw connection, easy install

Application of Barrier terminal block connector

Small distribution box
Electric cabinet
Electric meter box
Industrial equipment
