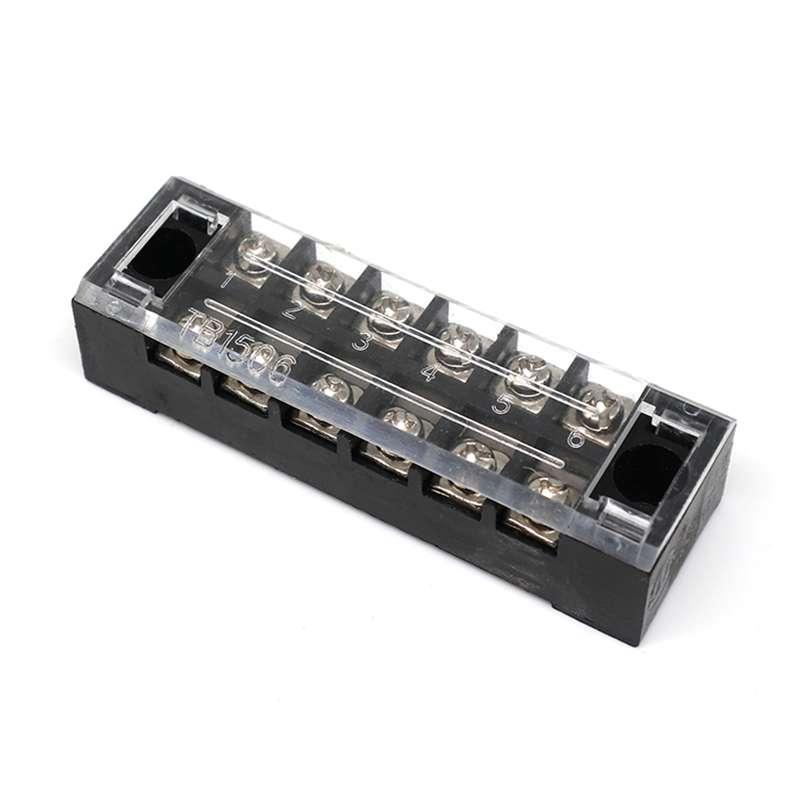

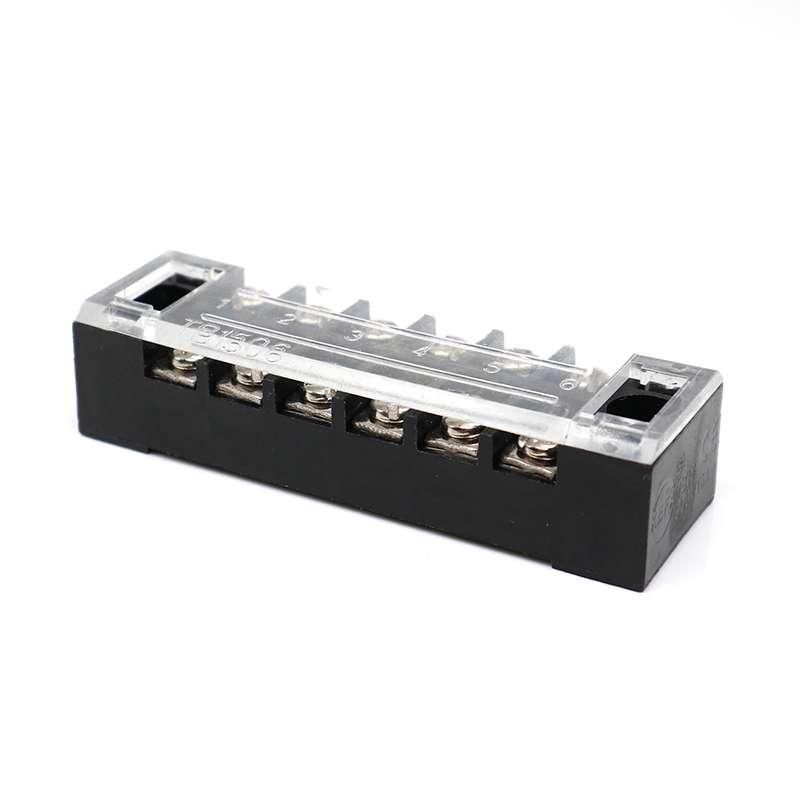

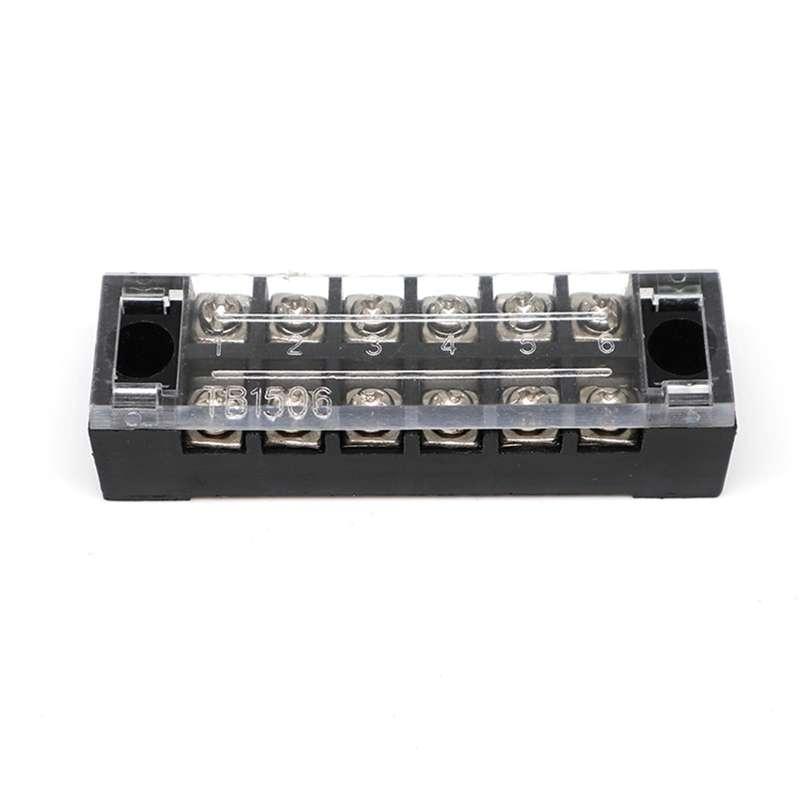

600v 32 amp barrier terminal block with cover

TB series barrier terminal block has different pitch and specifications, which can meet with customer demand.



  • Brand:

    OLINK
  • Item no.:

    TB15-8.9
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    15


600v 32 amp barrier terminal block with cover



Specification of tb barrier terminal block


Product name:   Barrier terminal block Model:   TB15-8.9
Certification:   CE Rated voltage:   600V (UL), 750V (IEC)
Rated current:   25A (UL), 32A (IEC) Wire range:   22-10 AWG (4mm²)
Withstand voltage:   AC 2500V/1 Min Temperature range:   -30℃ to +120℃
Torque:   9.0 Kg.cm Pitch:   12.0 mm
Poles:   2*2P-2*12P Housing:   PBT UL94V-0
Contact:   Steel, tin plated or Brass, tin plated Screw:   M4, Steel, Nickel plated

Drawing of 600v terminal block



Feature of 32 amp terminal block

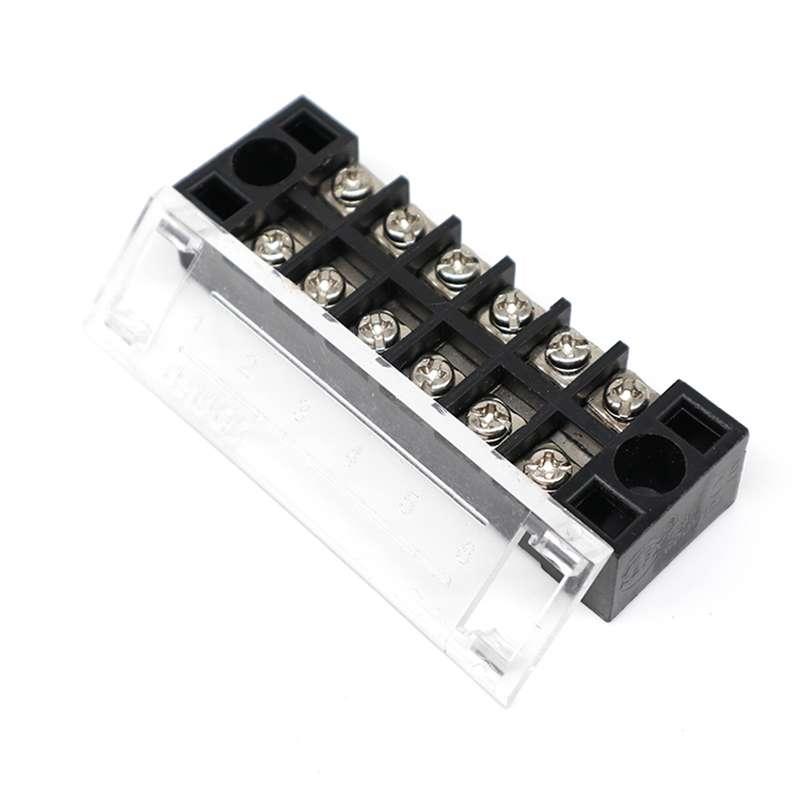

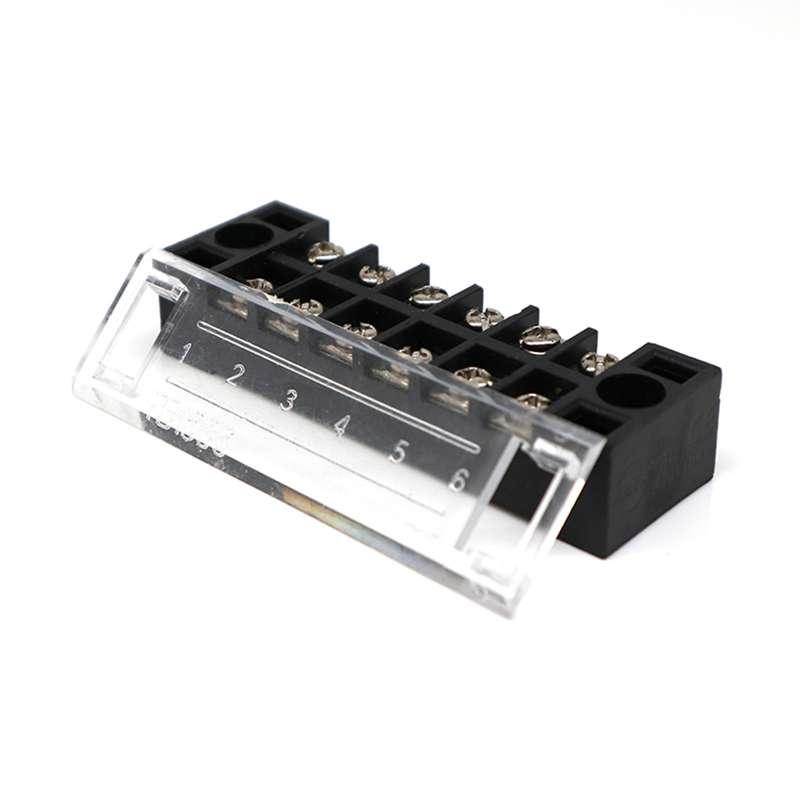

  • With PC cover: Made of highly transparent polystyrene, dust proof and transparent, strong and durable
  • Good material: The shell has a long service life, is resistant to aging, and is resistant to high pressure
  • Screw connection, easy install


Application of barrier strip terminal block


  • Small distribution box
  • Electric cabinet
  • Electric meter box
  • Industrial equipment
