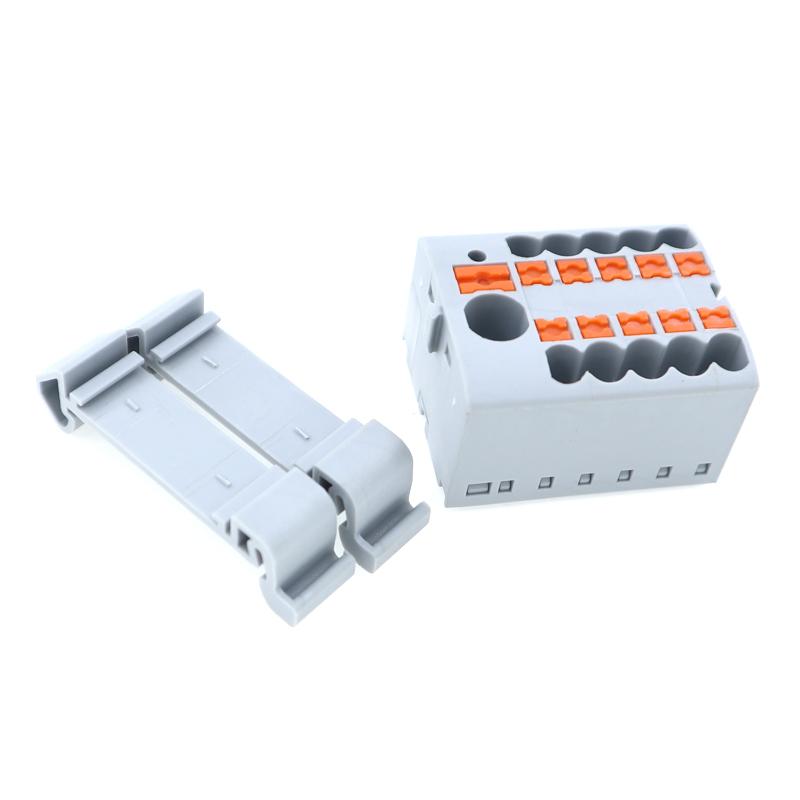

Alternative of Phoenix contact 3273246. There are 2~12P. Can choose with or without fixed bracket. Differnt shell colors for you clearer wiring.
Brand:
OLINKItem no.:
KV225/KV225GPayment:
Wire transfer, PayPal, Western Union, AlipayProduct origin:
ChinaColor:
Grey, Blue, RedGoods stock:
50000Min order:
1000Shipping port:
Xiamen, NingboLead Time:
15

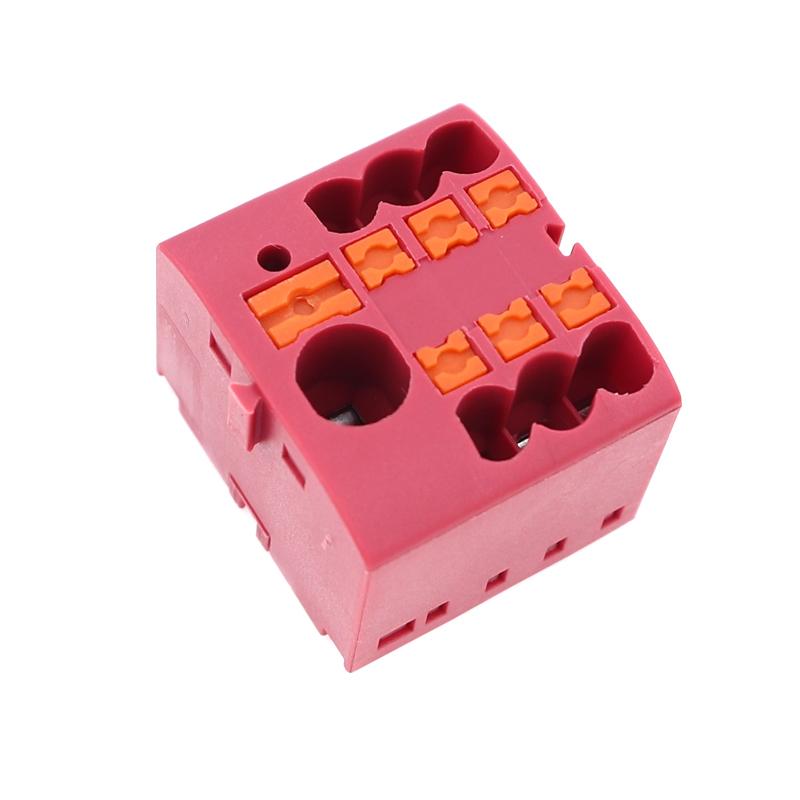

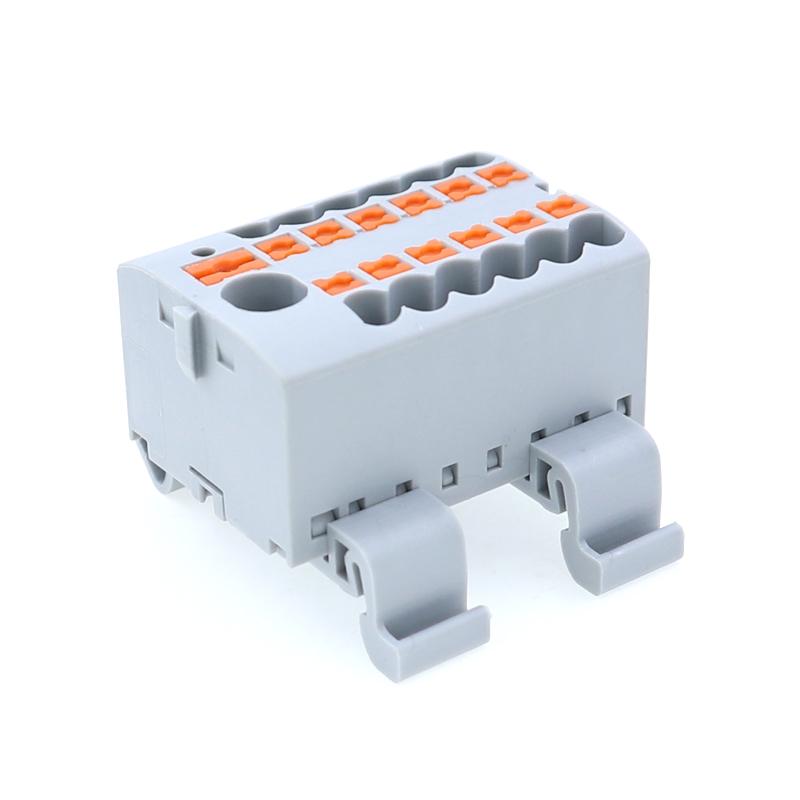

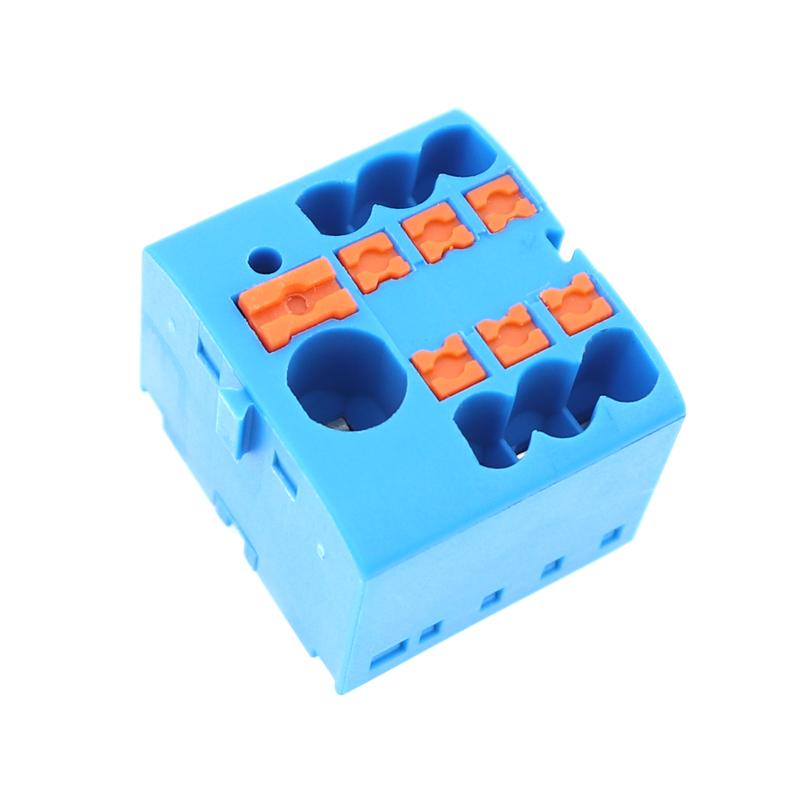

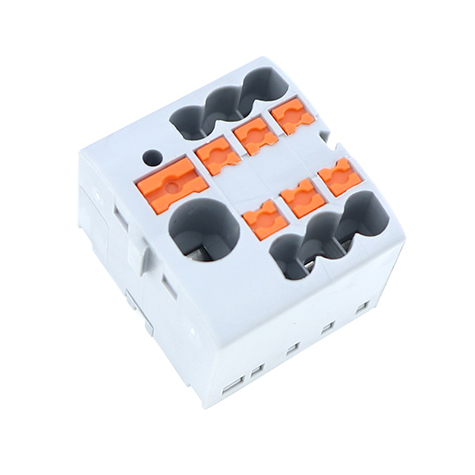

5.15mm Pitch 4-way Parallel Terminal Distribution Block 3273246
KV225
KV225G
Description of Spring terminal block
The Spring terminal block is an accessory product that realizes electrical connection, it can provide fast and simple connection points for one wire or multiple wires, and can also provide a variety of multi-level blocks to save space and optimize.

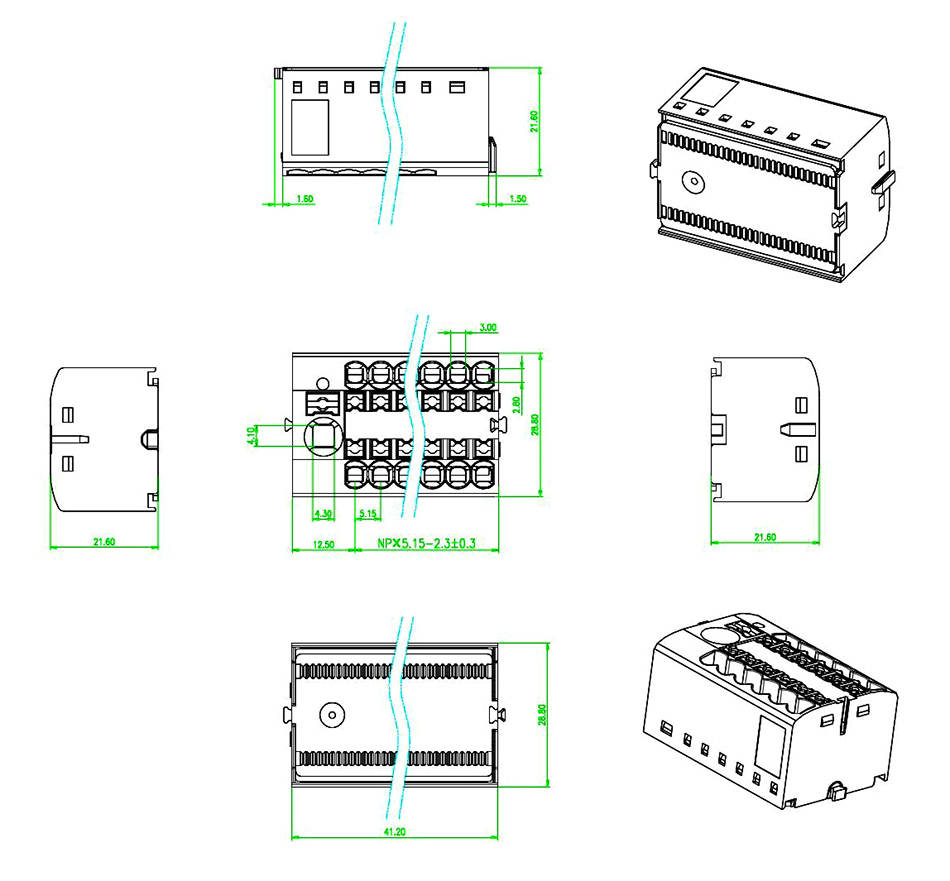

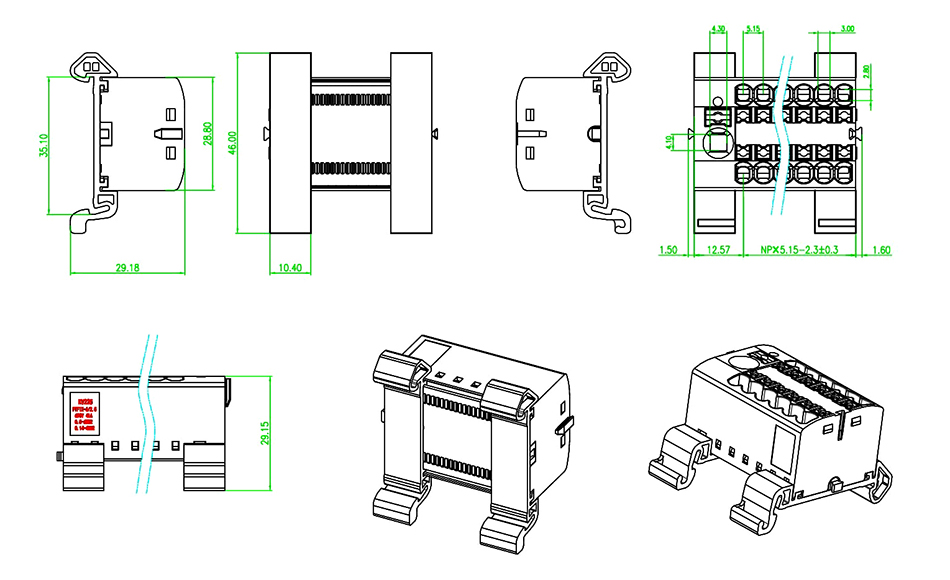

Drawing of parallel terminal block
 |
| KV225 |
 |
| KV225G |
Specification of Screwless terminal block
| Product name: | parallel terminal block | Model: | KV225/KV225G |
| Rated current: | 24A(UL); 41A(IEC) | Rated voltage: | 690V |
| Rated impulse voltage: | 4KV | Wire range: | 0.2-4/0.5-6/10mm² |
| Poles: | 2P-12P | Operating temperature: | -40℃ to +105℃ |
| Pitch: | 5.15 mm | Strip length: | 8-10 mm |
| Contact: | Copper, Sn Plated | Spring: | 301 Stainless steel |
| Housing: | PA66 UL94V-0 | Button: | PA66 UL94V-0 |

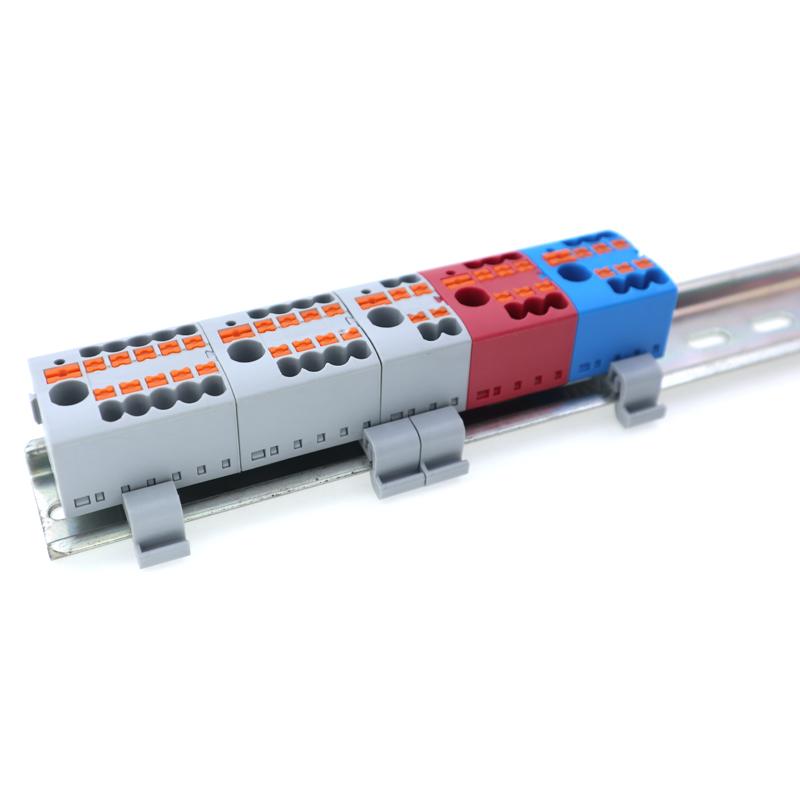

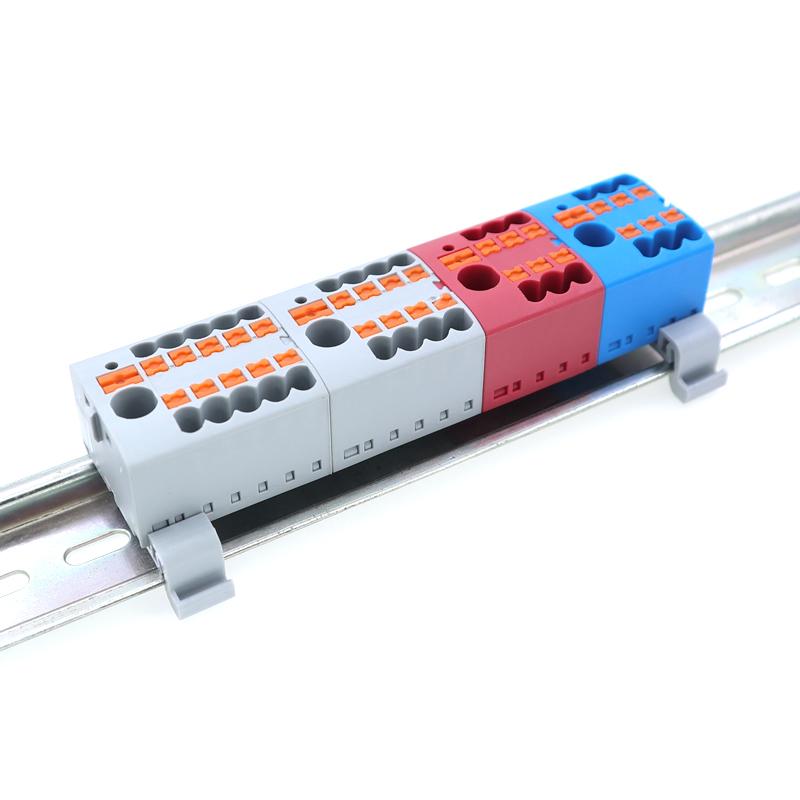

DIN rail installation, direct installation, or adhesive installation are available for more flexible use
Many different colors for clearer wiring
Adopting tool free direct insertion connection technology, wire connection saves time
Modules can be installed immediately without manual bridging, saving up to 80% of time
Can be installed perpendicular to the DIN rail side by side, saving up to 50% of rail space

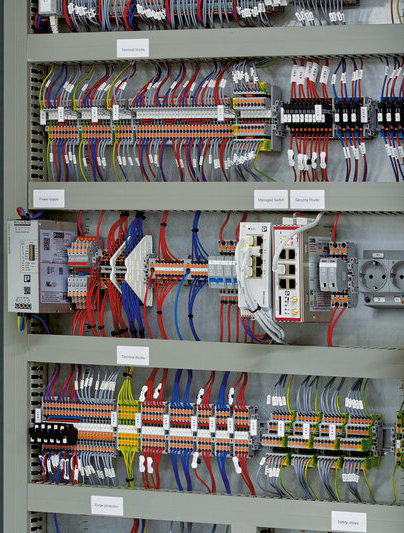

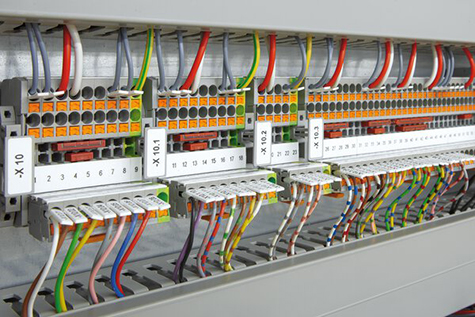

Application of Plastic terminal block
 |
 |
