1500V Electric Power Supply Cable Connectors

The energy storage connector compression lug is a field installable, high reliable alternative to common compression lugs. Using industry standard crimp, screw, and busbar termination options, thus eliminating the need to purchase special torque tools
  • Brand:

    OLINK
  • Item no.:

    E80
  • Payment:

    Wire transer, West Union, Paypal
  • Product origin:

    China
  • Color:

    Black. Red Orange
  • Goods stock:

    1000
  • Min order:

    10
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days

 60A 100A 130A 1 pin energy battery storage ev connector 6mm male female hv high voltage connector

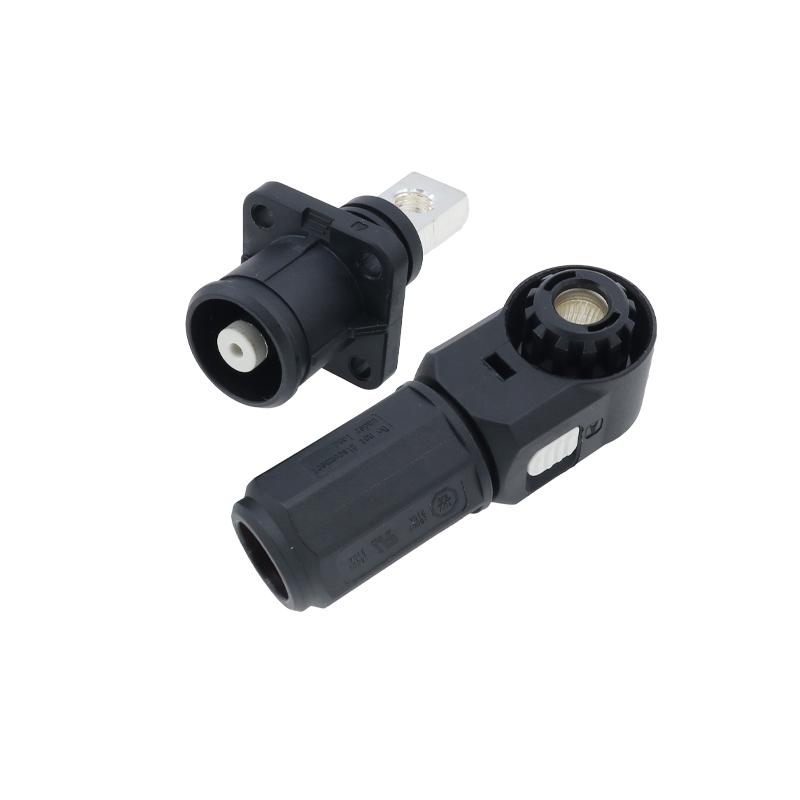

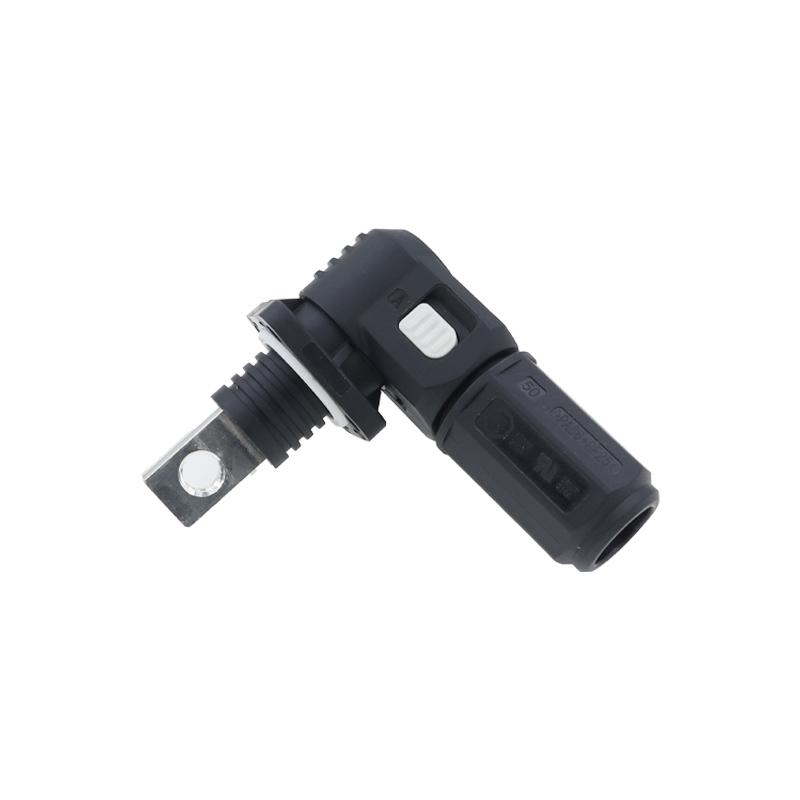

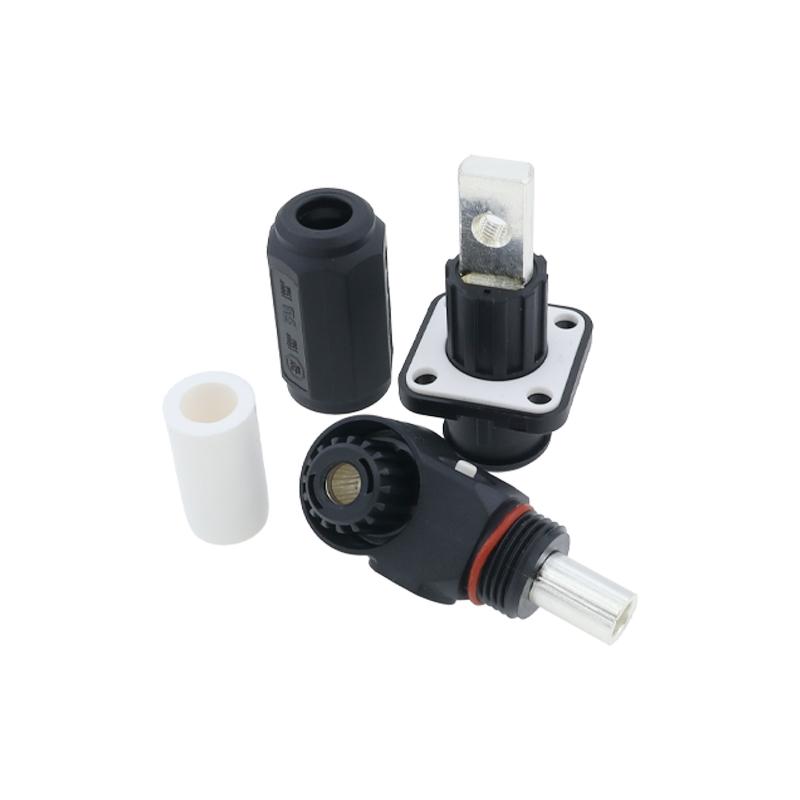

 Olink Plastic Shell IP67 1500V 80A Energy Storage Connector Hv Connector:

The Energy Storage Connector is a Field Installable, High Reliable Alternative to Common Compression Lugs. Using Industry Standard Crimp, Screw, and Busbar Termination Options, Thus Eliminating the Need to Purchase Special Torque Tools. This Connector Available in Smaller Sizes, and Features a Quick Lock and Press-to-release Design.


Incorporating the Latest Flexcoil Finger Connecting Technology, Our Energy Storage Connector is a Compact, Quick Mating, and Robust Product Line.

Products Benefits Touch Proof 360°Rotating Plug Compactrobust Design Various Termination Options Three Color are available Quick Lock and Press-to- Release Design

Brand name Olink
Application Battery Storage Connector
Gender Male/Female
Orientation Straight/Right angle
Number of Positions 1 pin
Rate current 80A, 100A, 130A
Termination Style Crimp
Wire grange 35mm2
IP rating IP67( Pluged)
Color Red/Black/Orange
Material

Shell : PA66

Contact : Cooper, Silver plating


Electrical Performance


Rated Voltage : 1000V/DC

Rated Current:  From 60A to 500A MAX

Withstand Voltage:  2500V AC

Insulation Resistance:  ≥1000MΩ


Mechanical Performance

Terminal: 6 / 8 / 12 / 14mm

Cable Range:  10mm2 ~24mm2

Connection Type: Crimp tool

Mating Cycles : >500 times

Shielding  :360°


Environmental Performance


IP Degree: IP67

Operating Temperature  :-40℃~125℃

Flammability Rating:  UL94 V-0
