1500V MC4 Connector Junction Box Mounting IP67 MC4 Connectors MC4 Solar Connectors

The MC4 Photovoltaic Connector Is The Most Used Special Connector In The Solar Photovoltaic Power Generation System, And It Is An Indispensable And Important Component Of The Solar Power Generation System.The Connection Is Reliable, And It Is Not Easy To Fall Off During Work. Easy Maintenance.

  • Brand:

    OLINK
  • Item no.:

    PV-N01
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    5


  Description Of Waterproof Solar Panel Connector

The Connector Can Be Installed On The Photovoltaic Junction Box Panel, And Is A Special Connector When Solar Photovoltaic Panels Are Connected In Series To Form An Array Module.

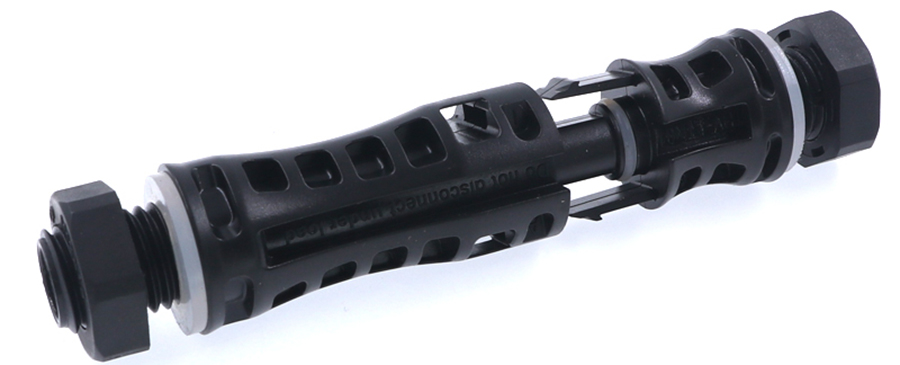

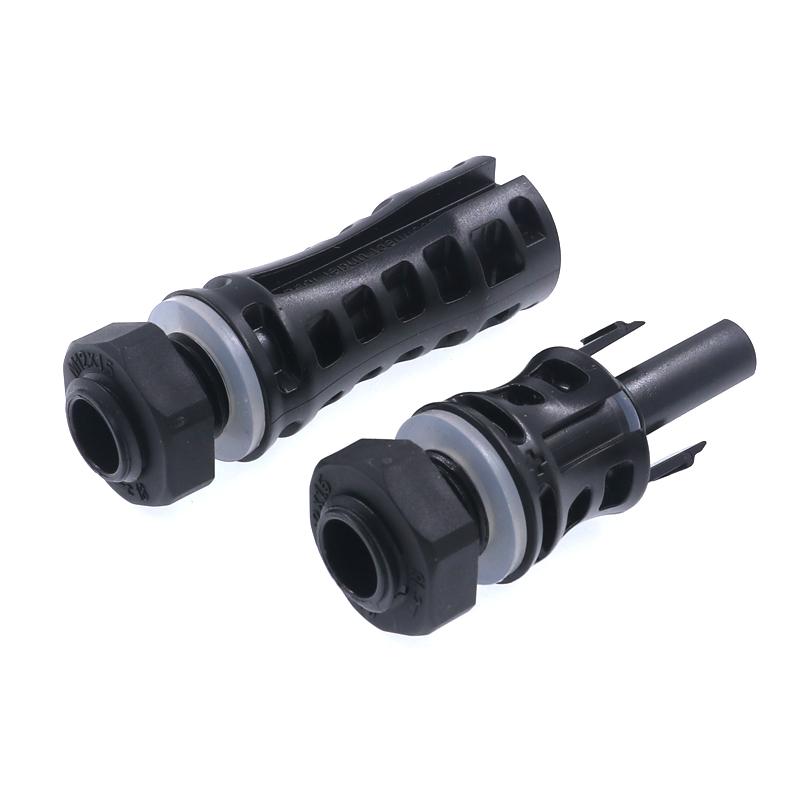

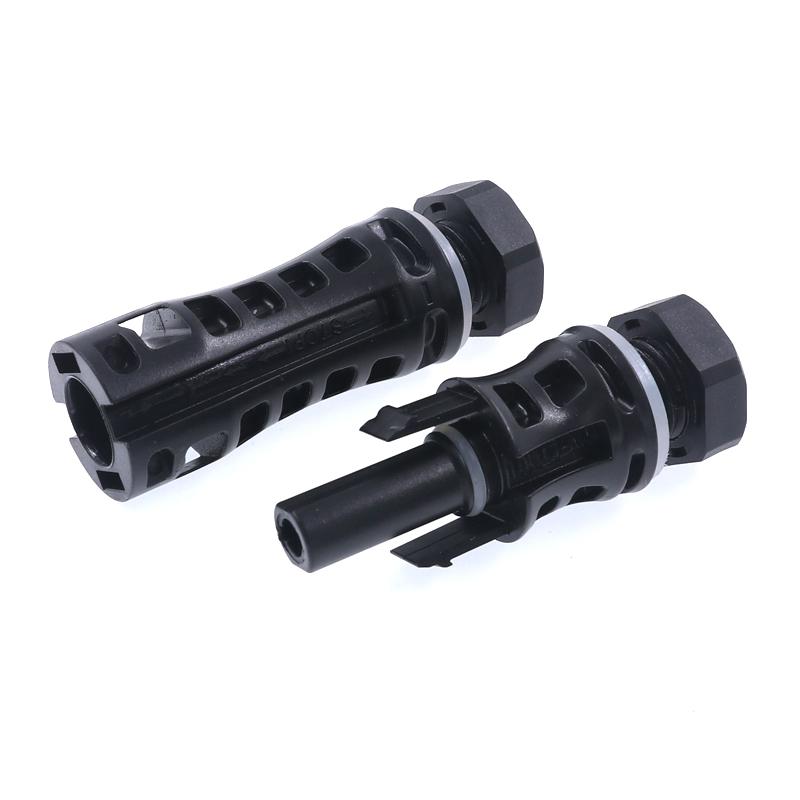

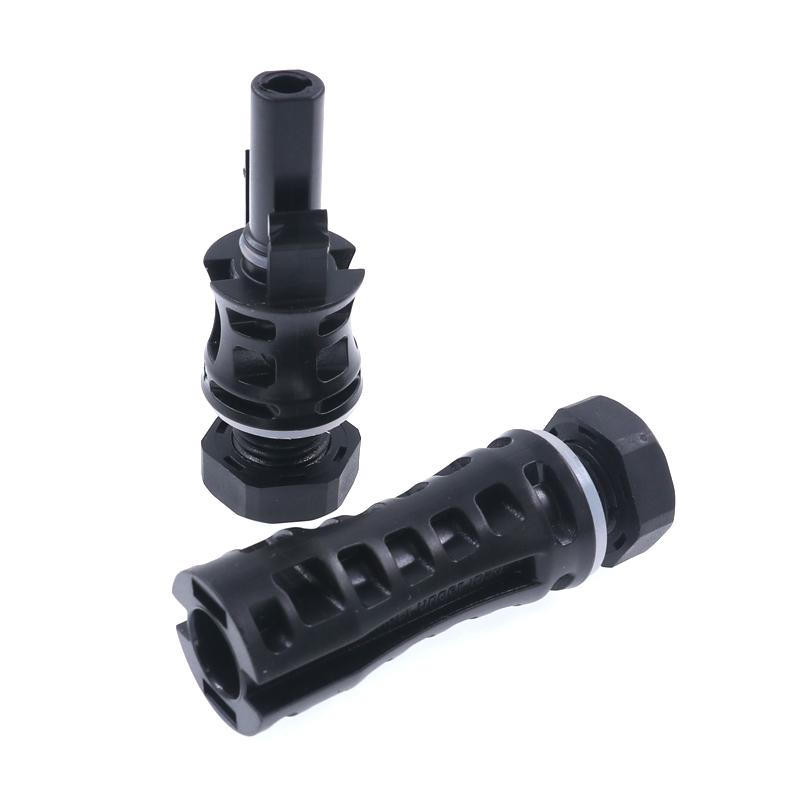

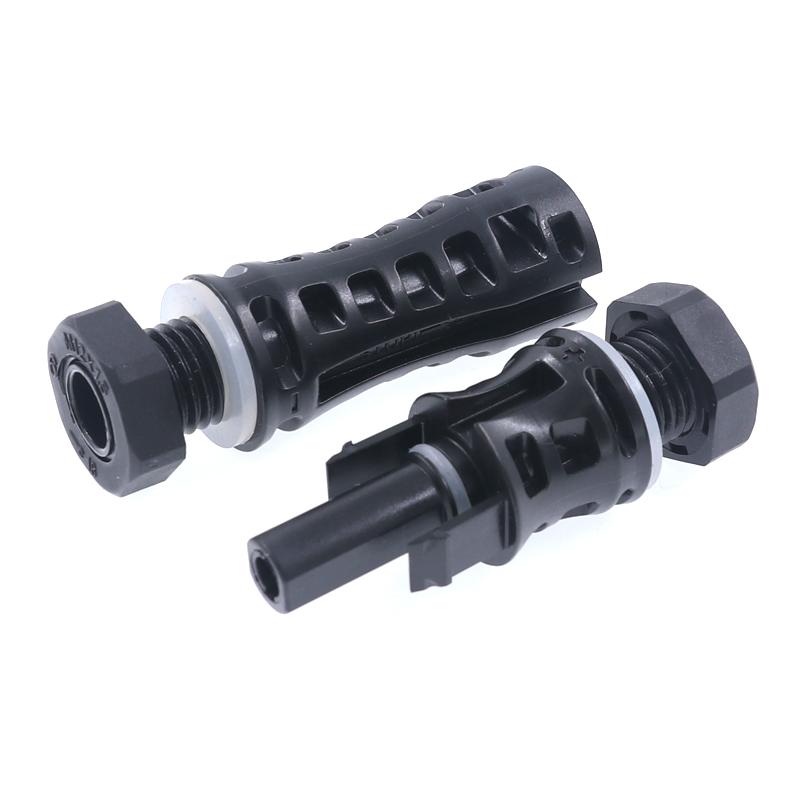

  Drawings Of Solar Panel Connector Plugs

  Technical Data For Junction Box Mounting MC4 Connectors

Connector System:
 φ4mm Temperature range:
 -40℃...+90℃
Rated Voltage:   1500 V DC Rated current:   30 / 50 A (1.5 mm²~6 mm²)
Degree of protection, mated:   IP67 Unmated:   IP2X
Contact resistance of plug Connectors:   0.5 mΩ Contact material:   Snap-in
Locking system:  Messing, verzinnt  Copper Alloy, tin plated
Insulation material:    PC/PV
Flame class:   UL-94-V0 Salt mist spray test, degree of severity 5:   IEC 60068-2-52


  Feature of PV Solar Connector

  • It has the characteristics of fast and reliable connection, waterproof and dustproof, and easy to use.

  • The shell has strong anti-aging and ultraviolet resistance.

  • The cable connection is connected by compression and tightening.

  • The male and female heads are fixed with a stable self-locking mechanism.

  • Open and close freely.
