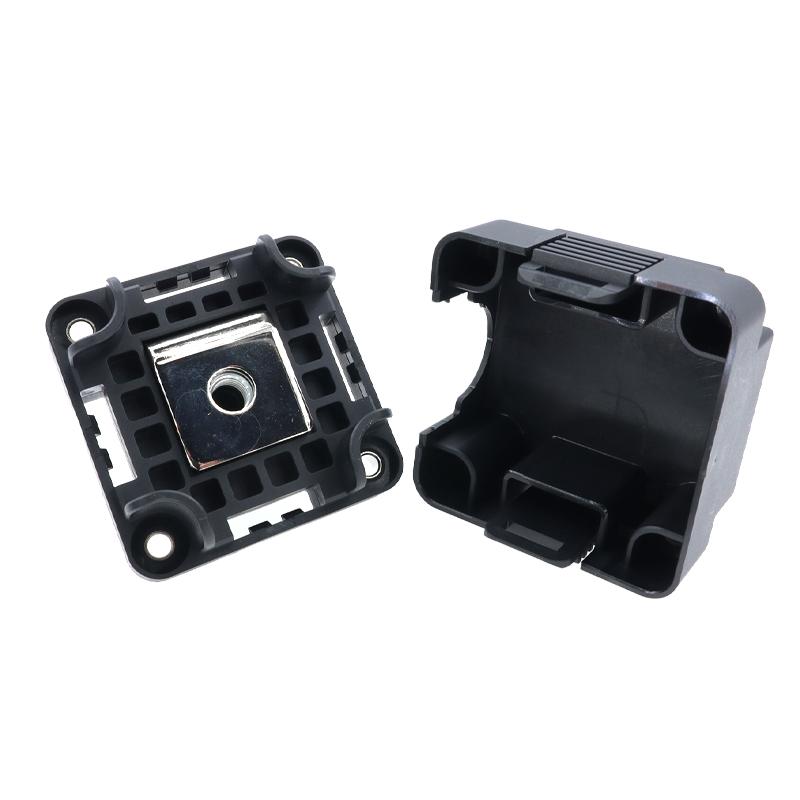

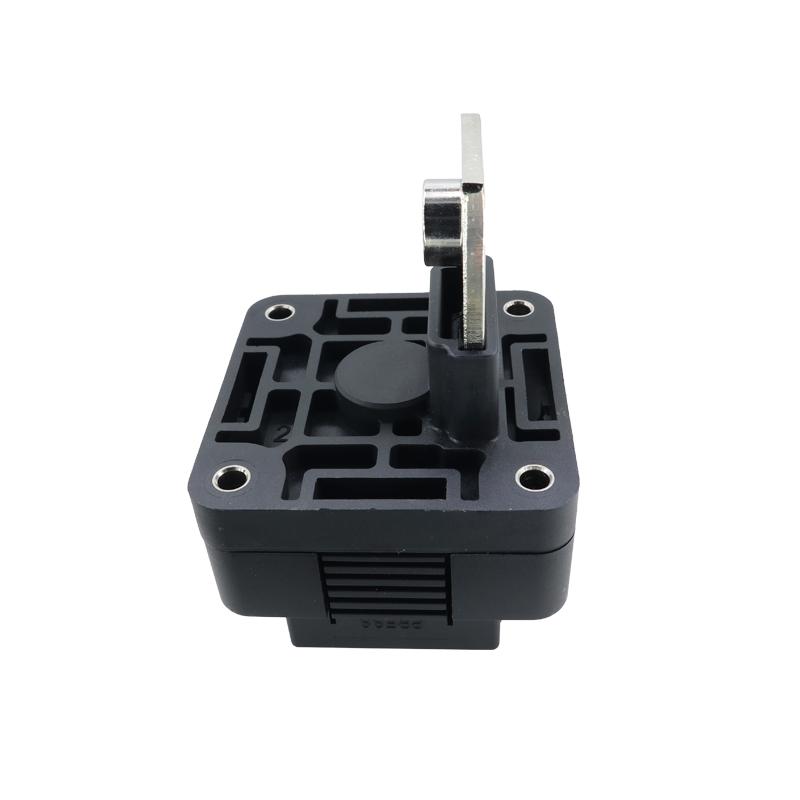

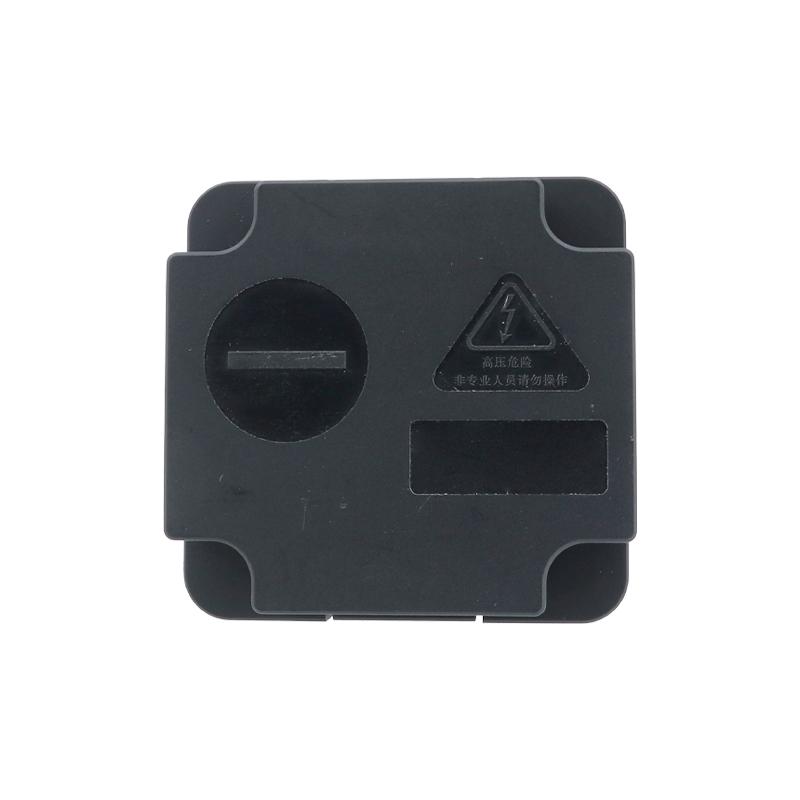

IP67 Protection Photovoltaic Connector Plated With Nickel

The energy storage connector compression lug is a field installable, high reliable alternative to common compression lugs. Using industry standard crimp, screw, and busbar termination options, thus eliminating the need to purchase special torque tools

Brand:
OLINK
Item no.:
CNKJ-200A-A(B)
Payment:
Wire transer, West Union, Paypal
Product origin:
China
Color:
Black, Red, Gray
Goods stock:
1000
Min order:
10
Shipping port:
Xiamen
Lead Time:
7 days

Inquiry now

product introduction

120A 150A 200A 300A 400A 1 pin energy battery storage ev connector male female hv high voltage connector

Olink Plastic Shell IP54 Energy Storage Connector Hv Connector Has features:

1. Connector mating is convenient and fast, and blind mating can be realized.

	2. Positive and negative poles have key structure error prevention function and color vision function.

	3. It has good corrosion resistance and high temperature resistance, and can maintain stable connection performance in long-term use.

	4. The energy storage connector can withstand high current and high voltage to adapt to the high-power output and fast charge and discharge needs of energy storage devices.

Brand name	Olink
Application	Battery Storage Connector
Gender	Male/Female
Orientation	Straight
Number of Positions	1 pin
Rate current	120A, 150A, 200A, 300A, 400A
Termination Style	Crimp
Wiring Method	M6/M8 thread Bolt-Type
IP rating	IP54
Color	Red/Black/Gray
Material	Shell : PA66 Contact : Cooper, Silver plating
Electrical Performance	Rated Voltage : 600V/DC Rated Current: From 12A to 400A MAX Insulation Resistance: ≥1000MΩ
Environmental Performance	IP Degree: IP54 Operating Temperature :-40℃~125℃ Flammability Rating: UL94 V-0

*For more products, please visit our home page and contact customer service staff.
