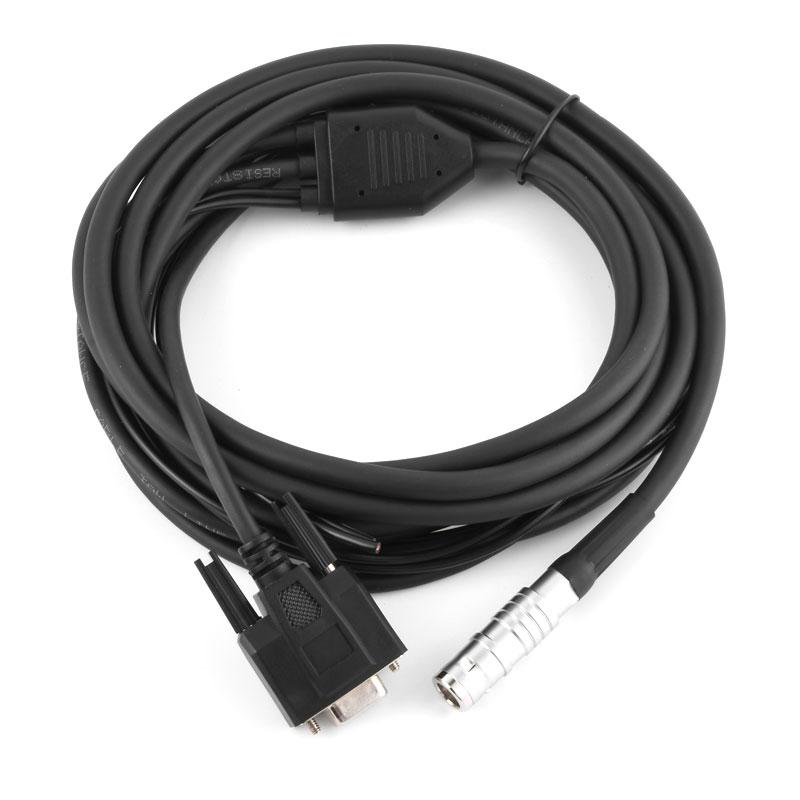

Circular push pull connector male female connector with cable assembly

High precision connector, compatible with Lemo plug connector and ODU plug connector. Aviation plug
  • Brand:

    OLINK
  • Item no.:

    FGG.1B.304
  • Payment:

    Wire transer, West Union
  • Product origin:

    China
  • Color:

    Silver
  • Goods stock:

    1000
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days

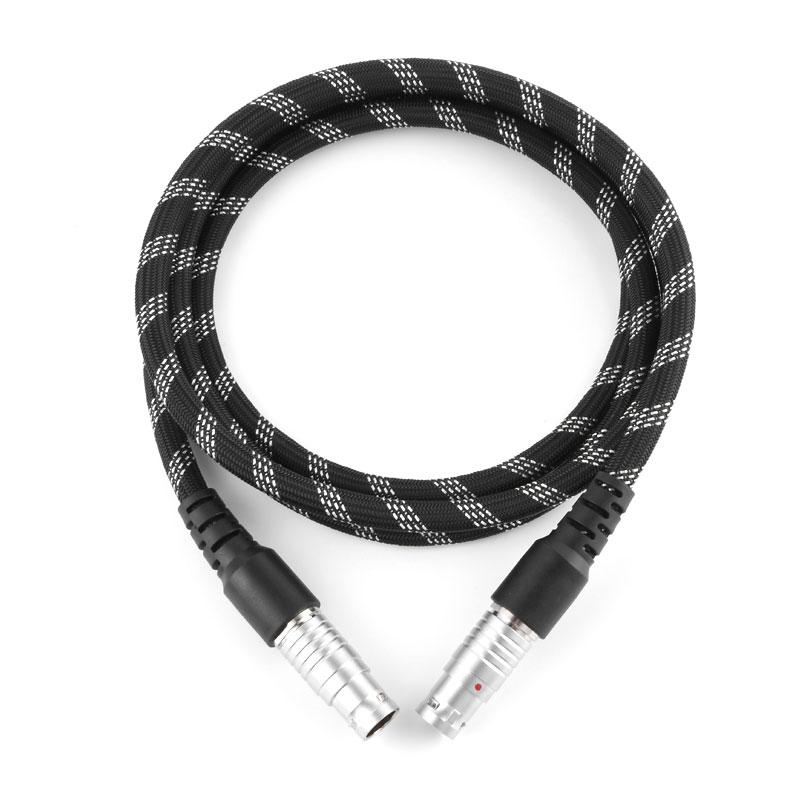

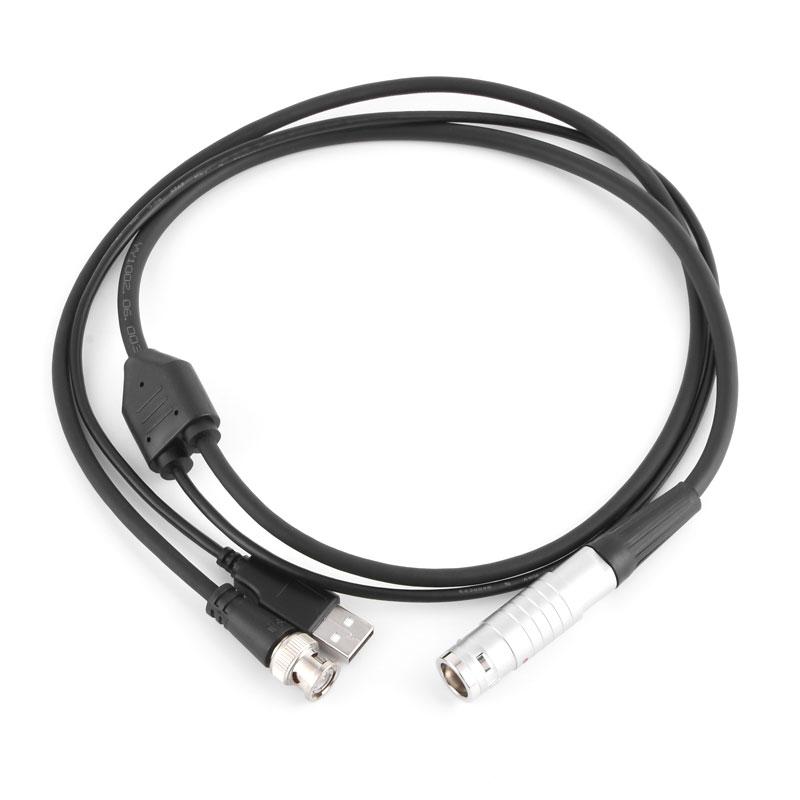

                           Circular push pull connector male female connector with cable assembly


This is a quick push-pull self-locking connector.  can be compatible with Lemo plug connector and ODU plug connector. Aviation plug


Tyep Replace Lemo's B series connector Current: 1-4A
Meterial for pin Copper plated with Ge Voltage 220-380V
Insulation material PEEK Number of contacts: 2-32Pin
Color ODM SPQ 10
Woking Frequency

Medium and low frequency

Contact type

Solder, print(PCB) or crimp

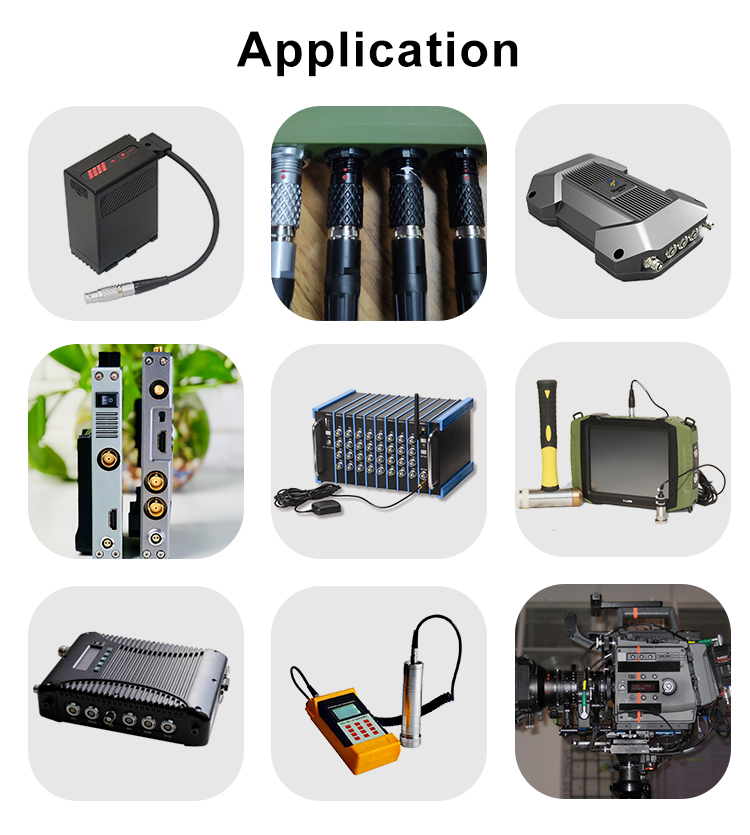

Application
Security equipment, measuring instruments, medical electronics, aviation, military industry, medical equipment, surveying and mapping instruments, beauty instruments

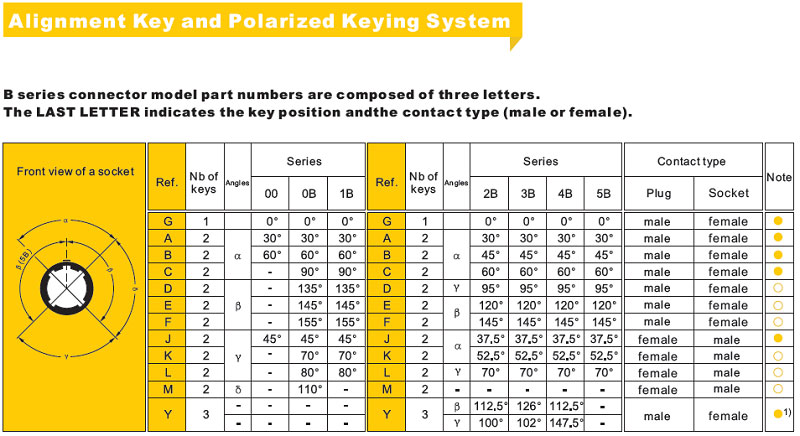

 key

1 key
Alpha: 0°
2 keys

Alpha: 30, 45 or 60°
